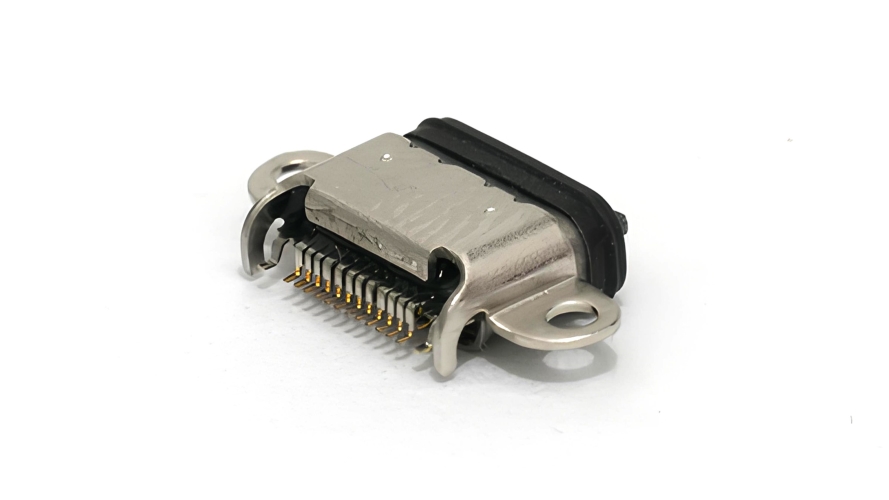

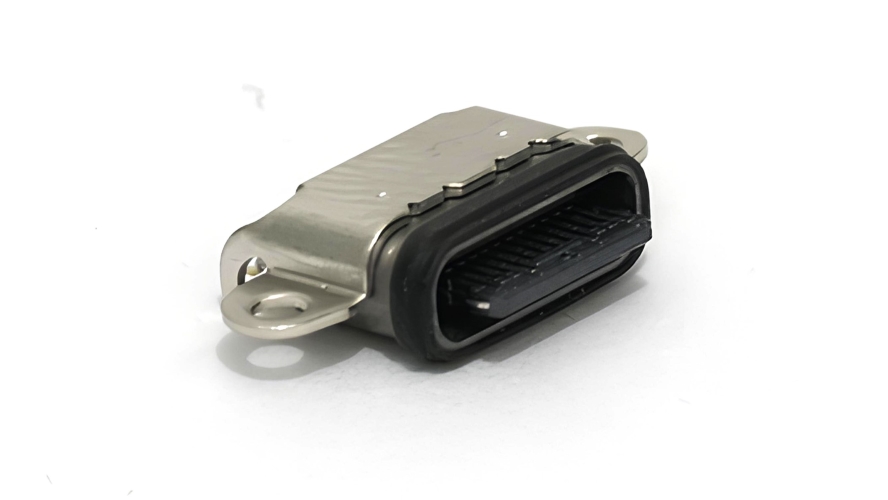

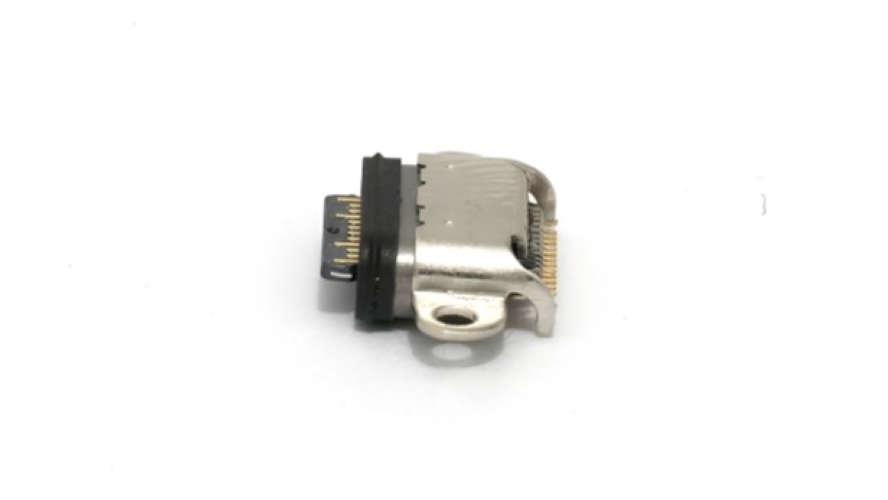

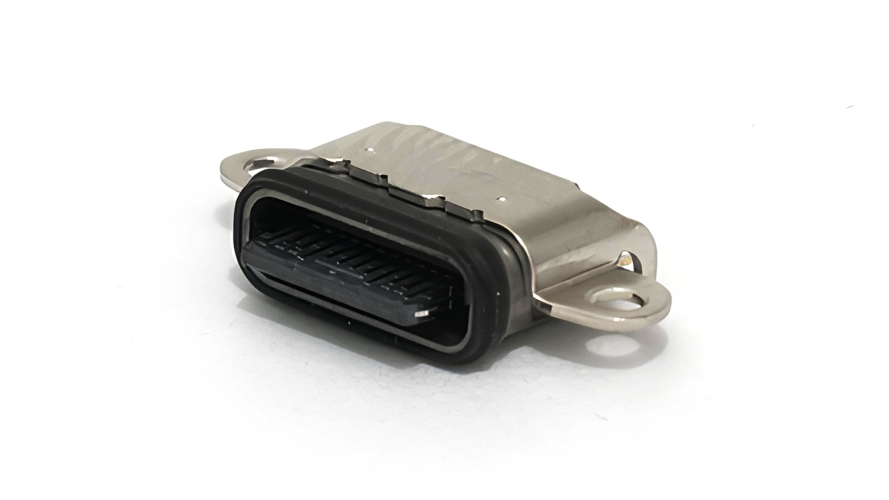

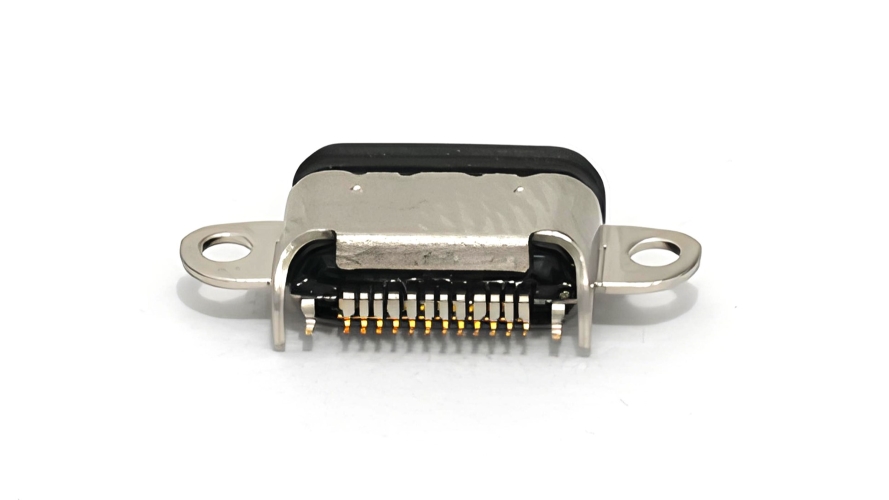

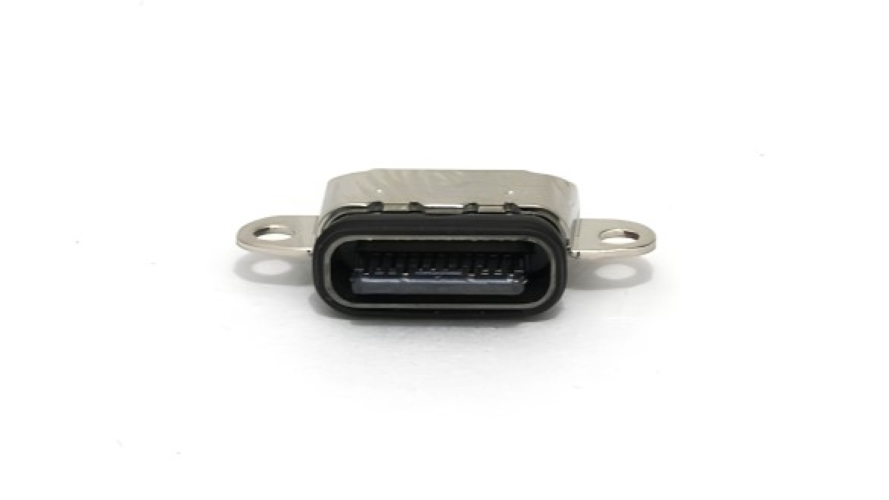

MMUSBC-3224BF-MMWP01-G01
USB
USB3224
USB 3.2 Type C Receptacle (IPX8)
Product Overview
Gender
Female
Voltage Rating
20V DC/AC
Available Pin Counts
24
Contact Resistance
Initial: 40mΩ Max.
After Stress:△10mΩ Max.
Product Line
USB313WF
PCB Orientation
Top Mount
USB Version
USB3.2 (20 Gbit/s)
Mating/Relate Parts
USB Series Type C Plug Connector
Durability
10000 Mating Operations
Current Rating
5A Max VBUS
Orientation
Horizontal
Contact Pitch
0.5mm(0.02")
Waterproof / Non Waterproof
Waterproof
Packaging
Tape and Reel package
Operating Temperature
-30˚C~+85˚C
Finishing
Full gold 1u" on contact area and termination.
Vibration
N/A
