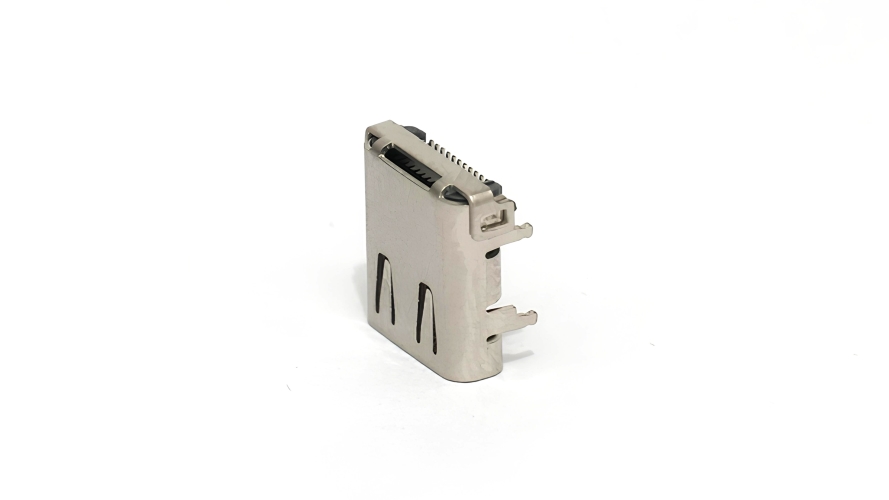

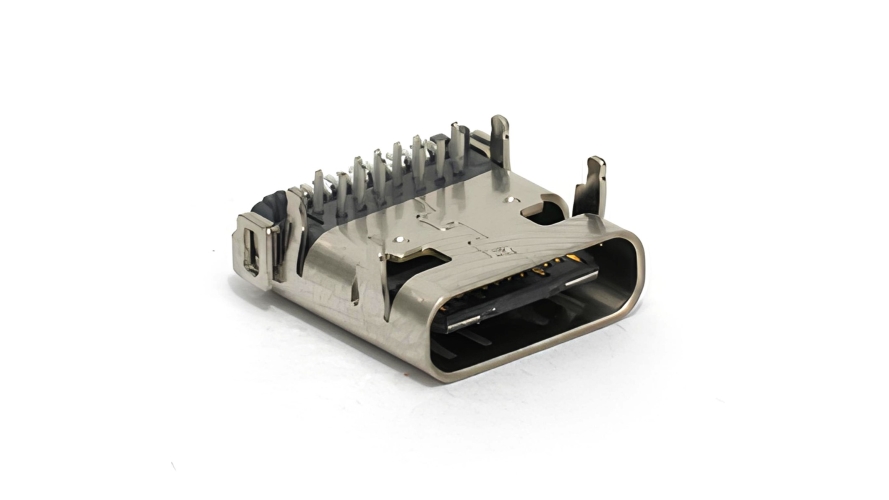

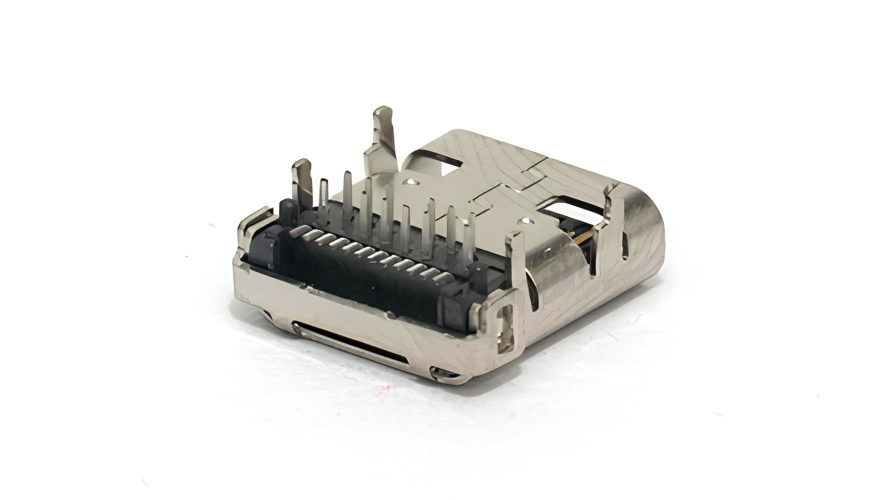

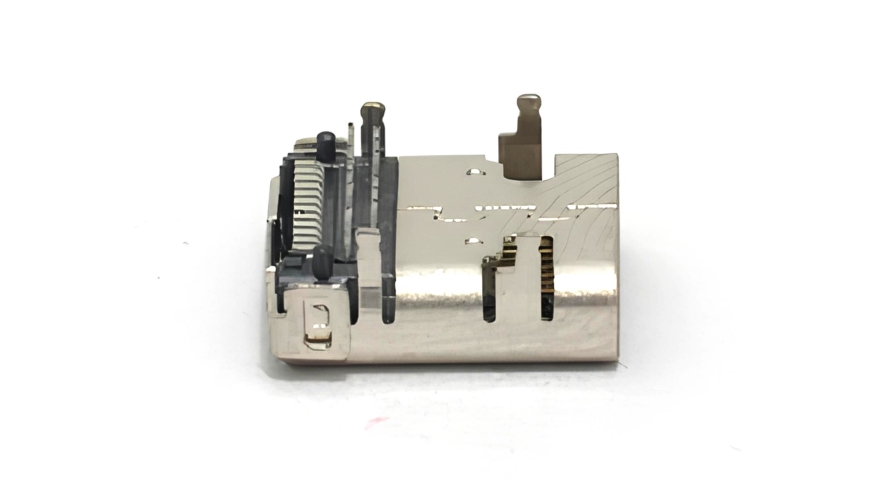

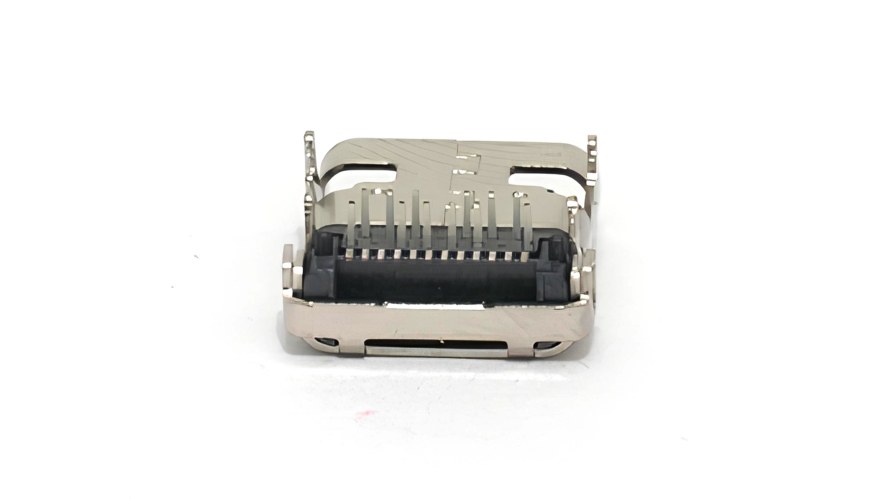

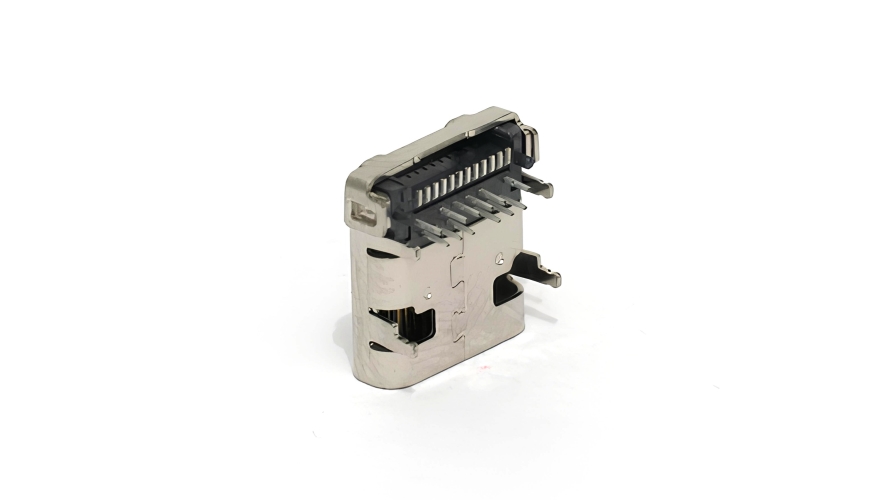

MMUSBC-3224AF-SMHS-G30
USB
USB3224
USB 3.2 Type C Receptacle Top Mount DIP+SMT Type
Product Overview
Finishing
Gold 30u" finish on contact area, Tin finish on termination.
USB Version
USB3.2 (20 Gbit/s)
Packaging
Tape and Reel package
Orientation
Horizontal
Contact Resistance
Initial: 40mΩ Max.
After Stress:△10mΩ Max.
Current Rating
5A Max VBUS
Vibration
15 minutes in each of 3 mutually perpendicularaxes,20~500Hz, 0.02 g2/Hz
Contact Pitch
0.5mm(0.02")
Voltage Rating
30V DC/AC
Waterproof / Non Waterproof
Non Waterproof
Available Pin Counts
24
Operating Temperature
-30˚C~+85˚C
Durability
10000 Mating Operations
Product Line
UTC232
Mating/Relate Parts
USB Series Type C Plug Connector
Gender
Female
PCB Orientation
Top Mount
