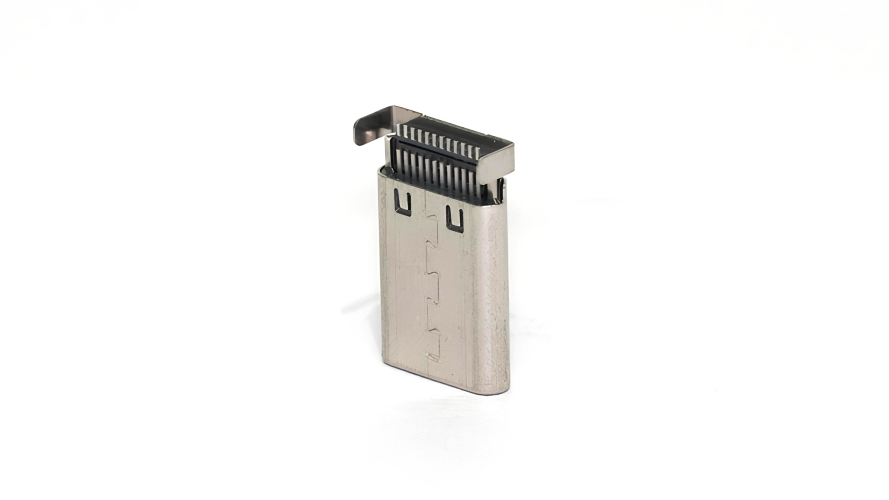

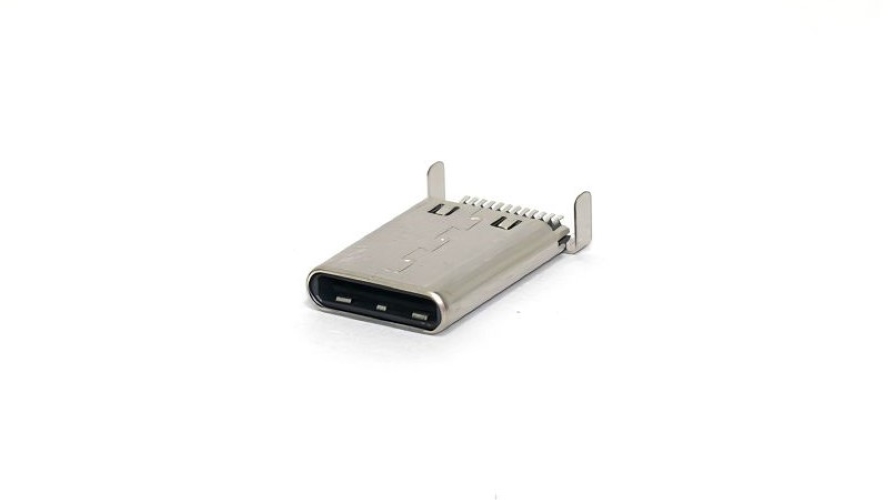

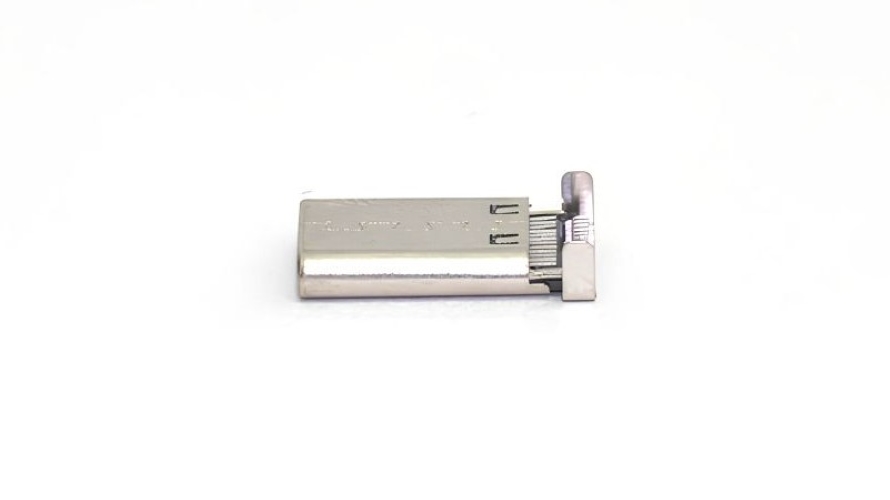

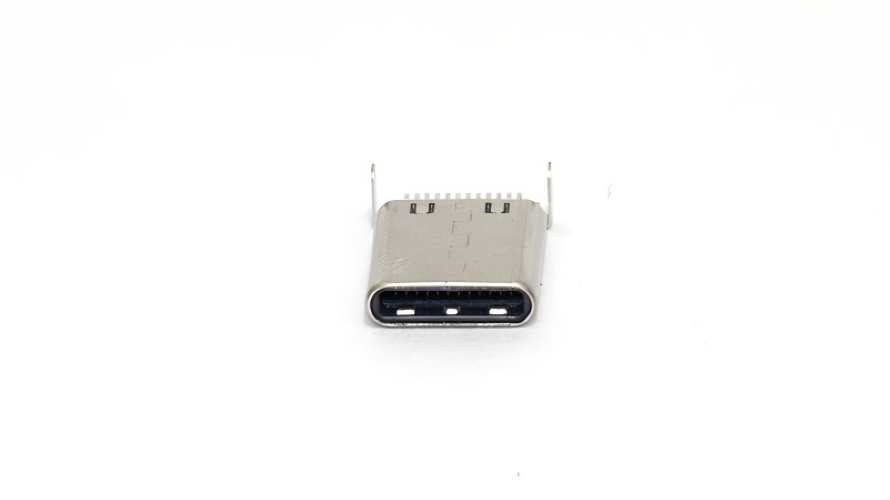

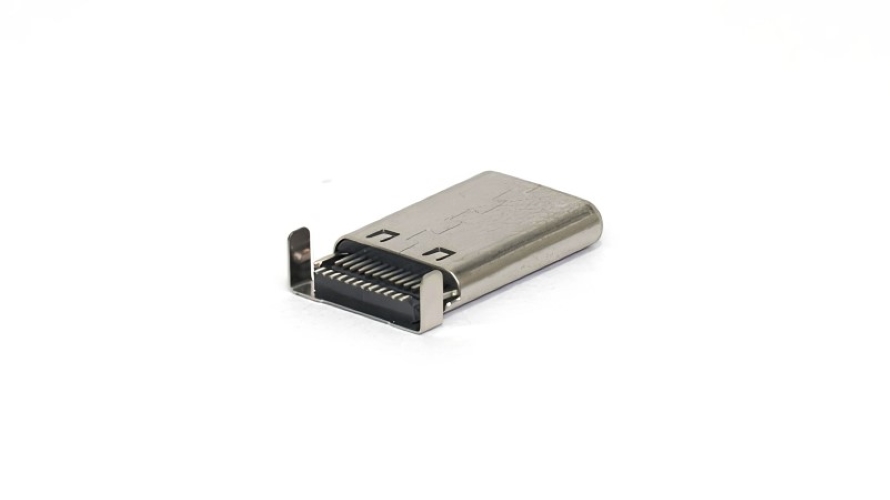

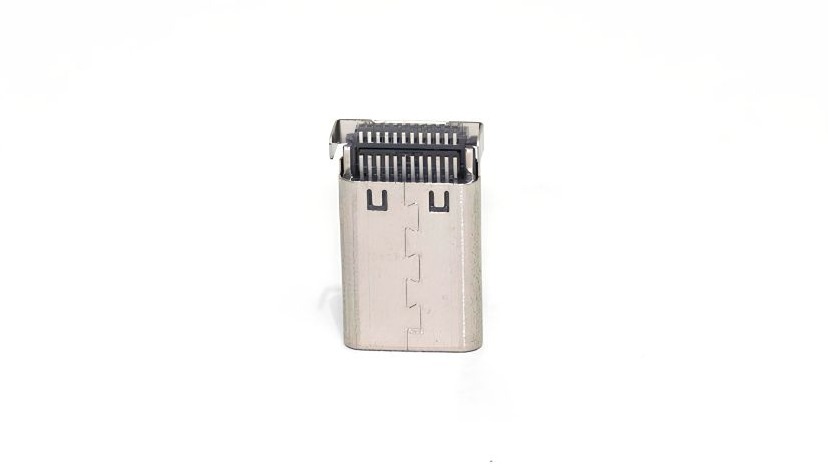

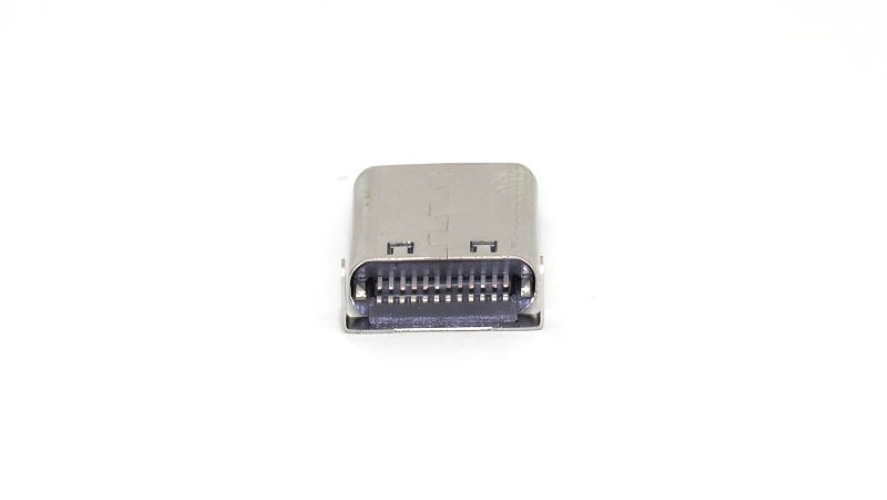

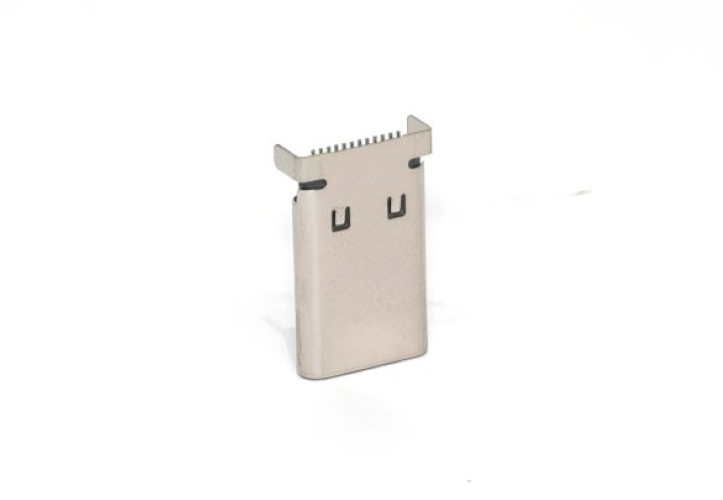

MMUSBC-4024BM-BMHS-G05
USB
USB4024
USB 4.0 Type C Plug Board Mount Offset 0.95mm SMT Type
Product Overview
Contact Resistance
Initial: 40mΩ Max.
After Stress:△10mΩ Max.
USB Version
USB4.0 (40 Gbit/s)
Available Pin Counts
24
Finishing
Gold finish 5u" on contact area, Tin finish on termination.
Mating/Relate Parts
USB Series Type C Receptacle Connector
Operating Temperature
-40˚C~+85˚C
Packaging
Tape and Reel package
Orientation
Horizontal
Durability
10000 Mating Operations
Waterproof / Non Waterproof
Non Waterproof
Voltage Rating
30V DC/AC
Vibration
Random vibration
-Frequency: 20~500Hz
-Power Spectral density:0.02 g2/Hz
-Acceleration: 3.1 grms
-Duration: 15 minutes/axis
-Direction: x,y,z axes
Gender
Male
Contact Pitch
0.5mm(0.02")
Current Rating
5A Max VBUS
Product Line
USB402
PCB Orientation
Board Mount
