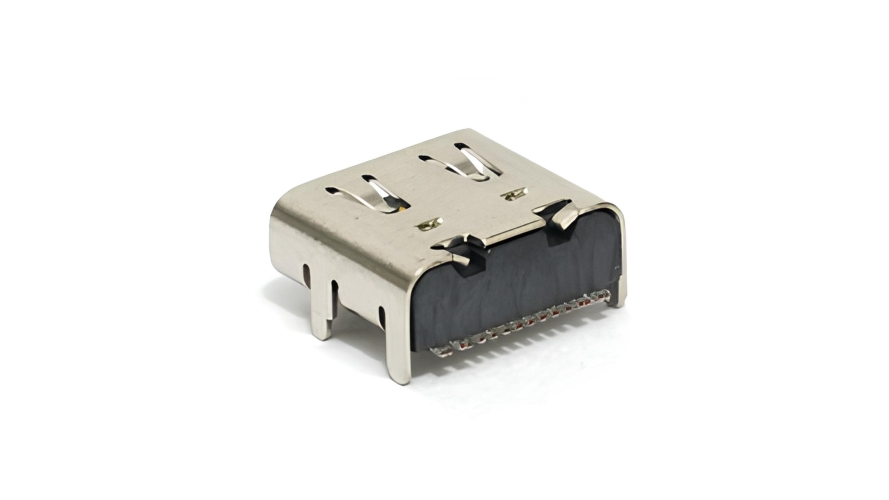

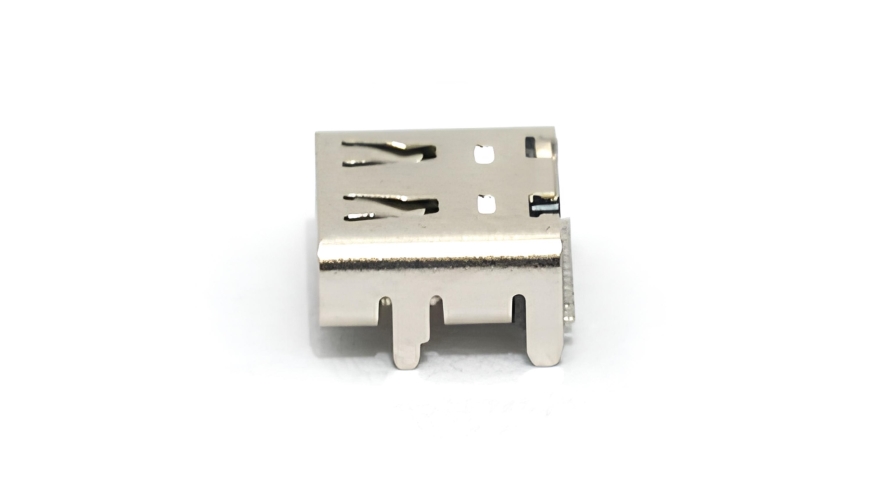

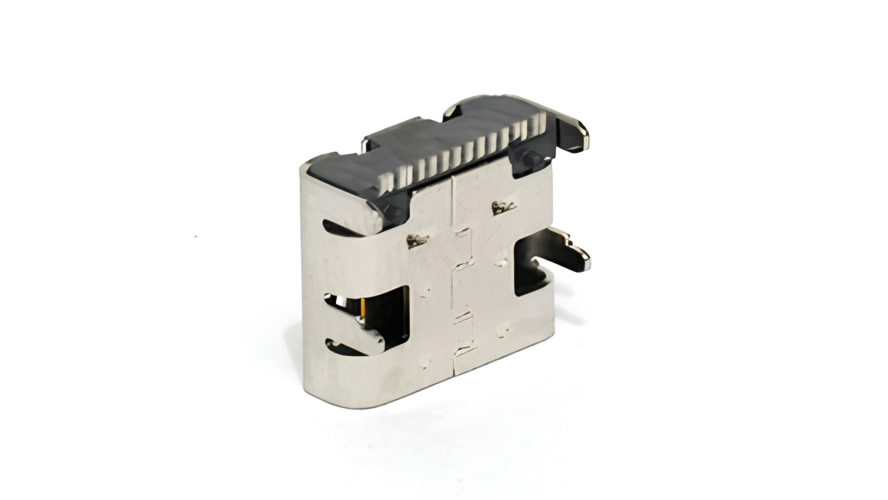

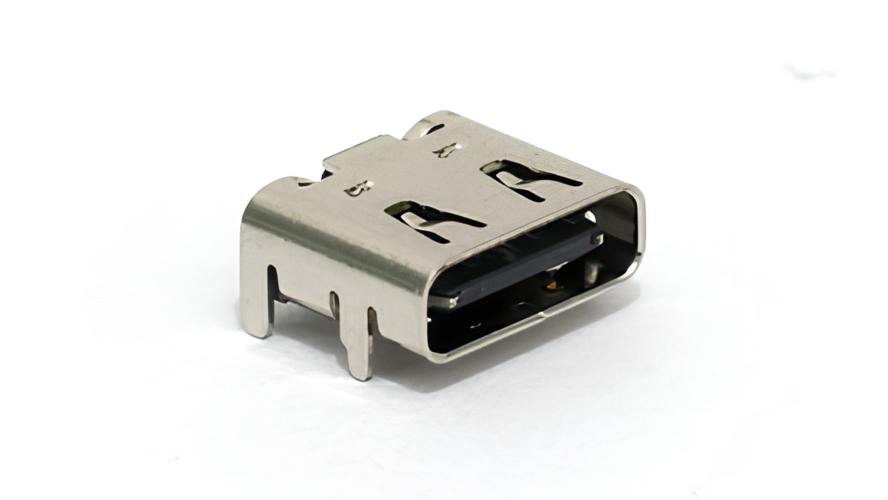

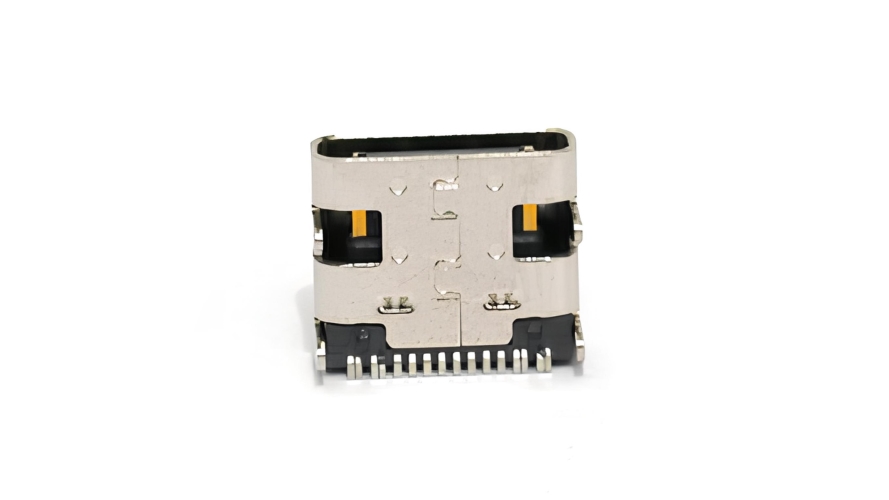

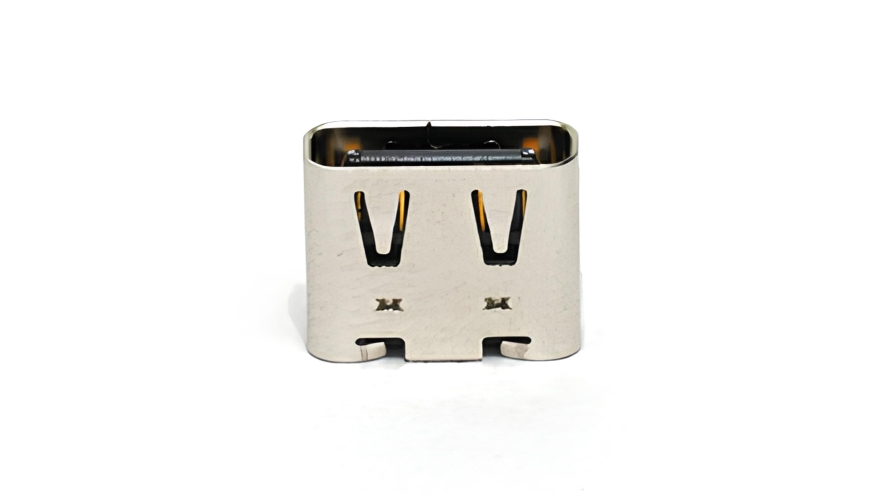

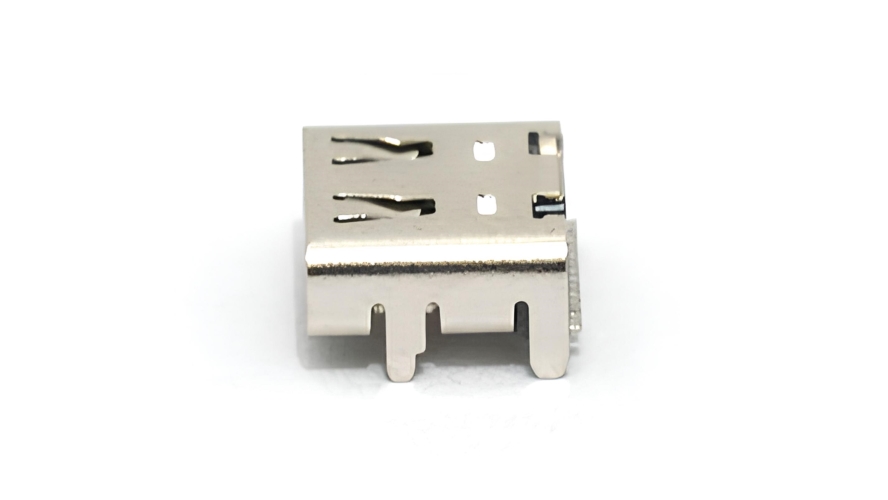

MMUSBC-2016BF-SMHP-G30

USB USB2016

USB 2.0 Type C Receptacle Top Mount SMT Type

Product Overview

Vibration N/A

Operating Temperature -25˚C~+85˚C

USB Version USB2.0 (10 Gbit/s)

Contact Pitch 0.5mm(0.02")

Current Rating 10A Max VBUS

Durability 10000 Mating Operations

Gender Female

Waterproof / Non Waterproof Non Waterproof

Voltage Rating 30V DC/AC

Mating/Relate Parts USB Series Type C Plug Connector

PCB Orientation Top Mount

Orientation Horizontal

Packaging Tape and Reel package

Available Pin Counts 12

Finishing Gold 30u" finish on contact area, Tin finish on termination.

Contact Resistance Initial: 40mΩ Max. After Stress:△10mΩ Max.

Product Line UTC234
