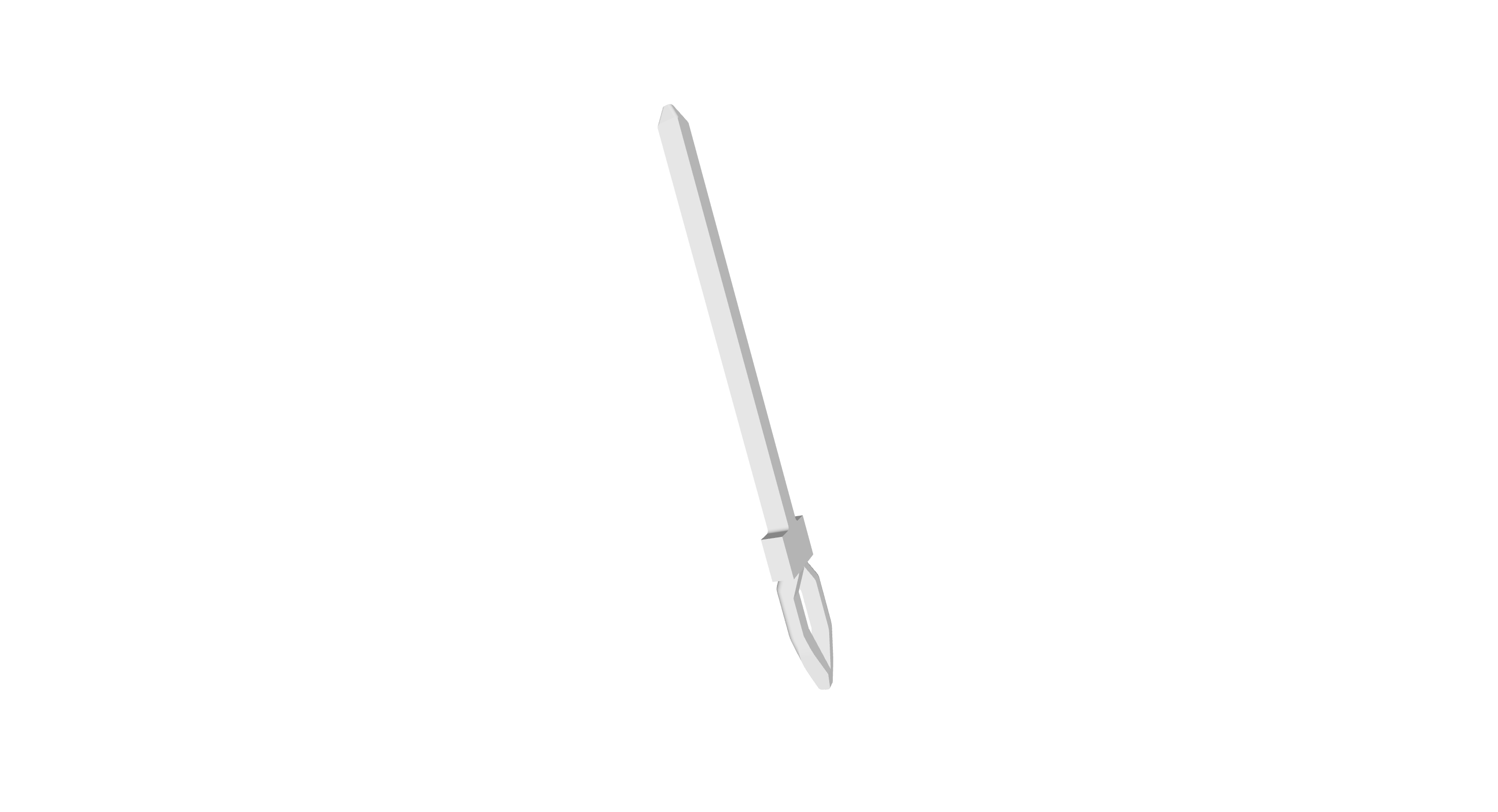

MMP-PF-063-1140-T0-R2
Press-fit Pins
MMP-PF-063
Press Fit Terminal 0.63X0.63 Type, Mating Length: 1140mm
Product Overview
Contact Resistance (Initial)
Not specified
Test Standards
IEC 512, EN 60068, DIN EN 60 352-5
Mechanical Shock
30g, 6ms, 50 shocks/axis
Tape and Reel Direction
Anti Clock Wise
Holding Force (Post-Stress)
≥ 40 N
PCB Hole Diameter
1.00 mm
Industry Climate
21 days, 75% RH, gas exposure
Holding Force (Initial)
≥ 50 N
Temperature Shock Duration
144 cycles
Plating
Tin Plating
Temperature Range (Tests)
-40°C to +125°C
Packing Type
Reel
Press-In Force (Sn/Sn)
60 – 180 N
PCB Thickness
1.6 ± 0.2 mm
Humidity Test
21 cycles, 24h each, 25–55°C @ 95% RH
Recommended Usage
Small signal/power pins
Vibration Test
15–1000 Hz, 10g, 6h/axis
Material
UNS C51900
Mating Pin Length (mm)
11.4
Pin Size (mm)
0.63 × 0.63
