MMANT-1700401-SM7-000
Antenna
Antenna

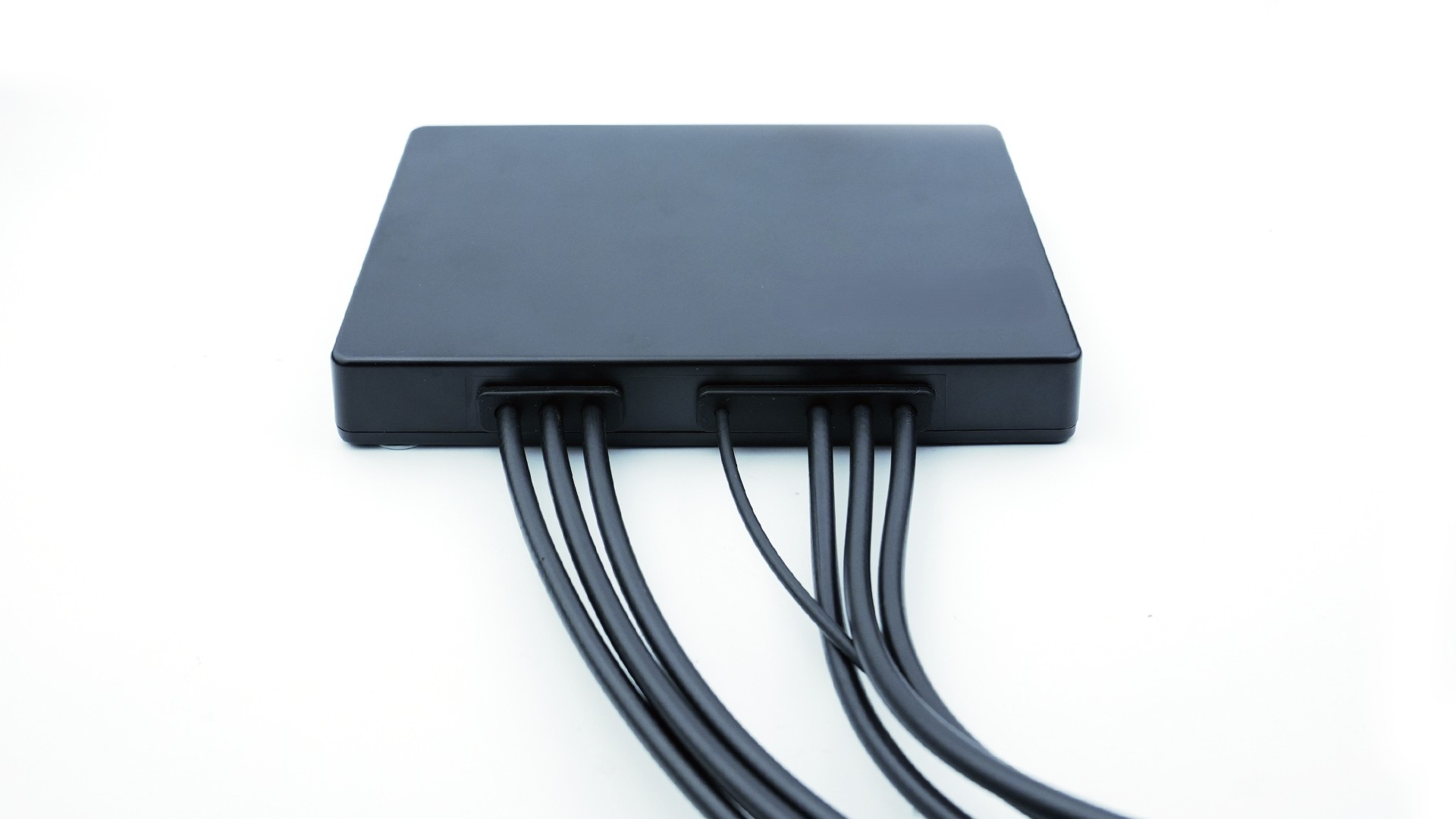

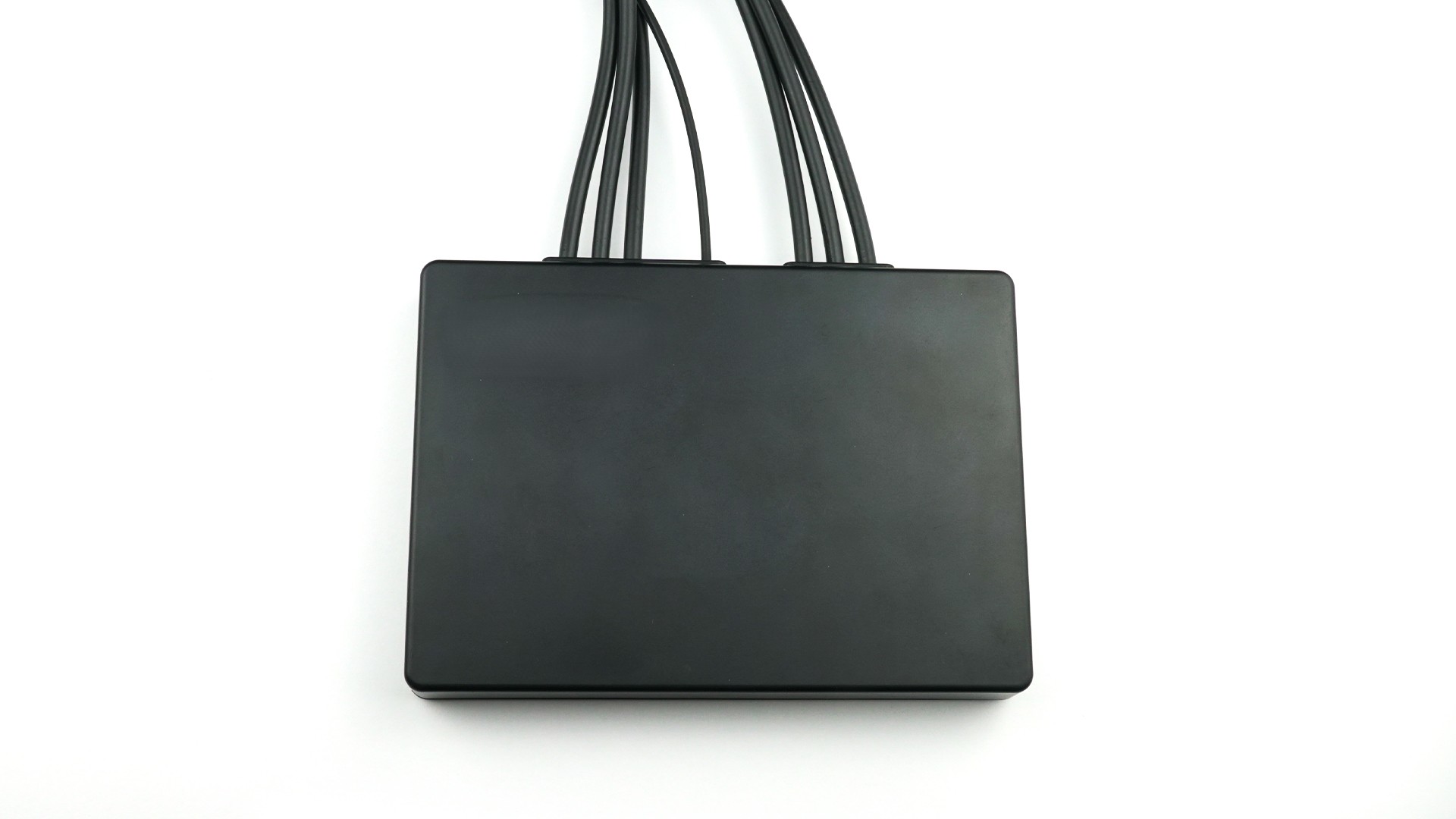

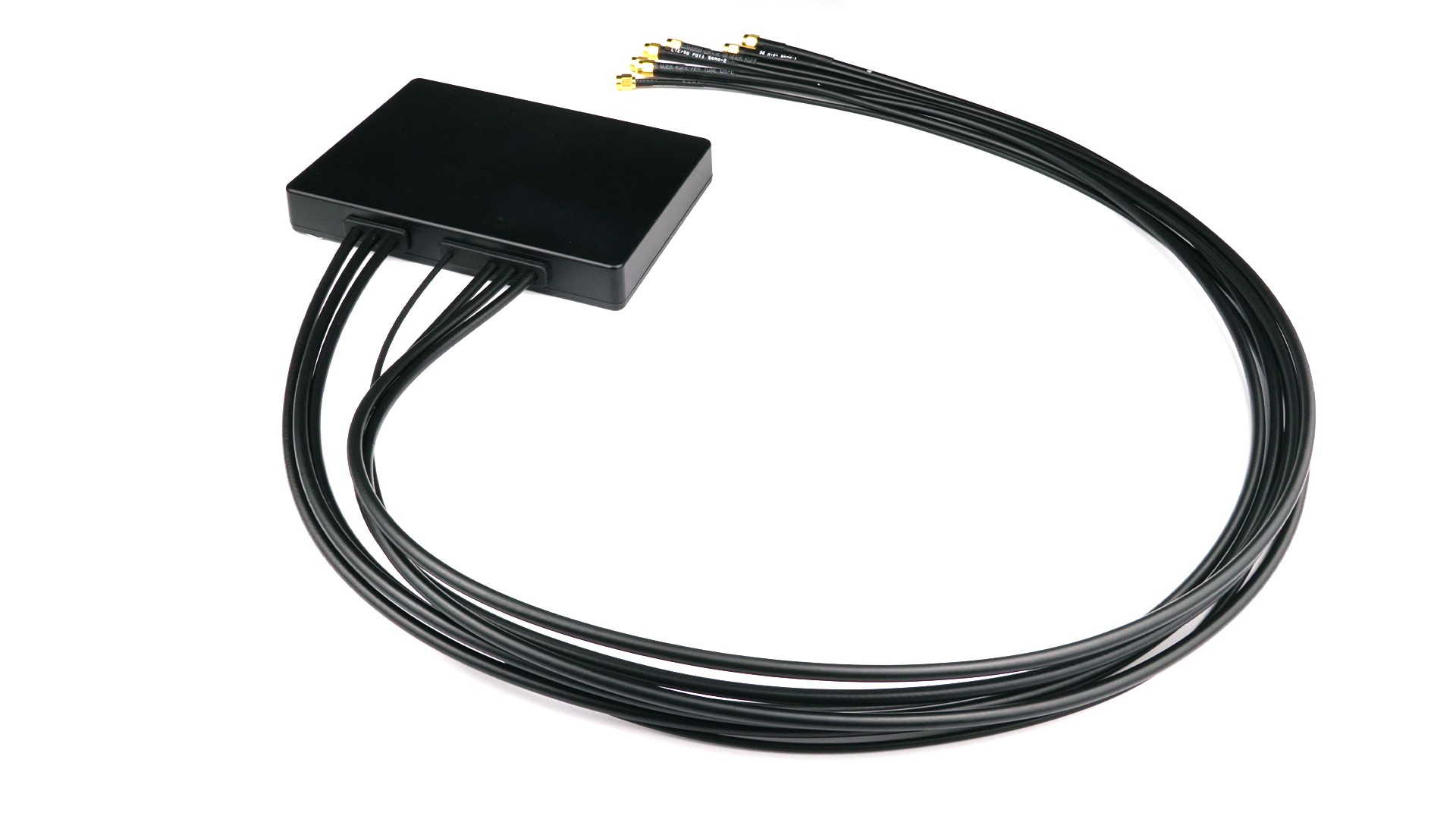

7-in-1 Combo Antenna: 2× LTE, 2× Wi-Fi, 2× 5G, 1× Active GPS, Adhesive Mount, IP67 Rated, SMA Connectors
Product Overview
Operating Frequency Range
5G/LTE:698-960MHz/1500-1700MHz/1710-2690MHz/
3300-5000MHz
Wi-Fi:2400-2500MHz/5150-5850MHz/5925-7125MHz
GNSS:1561-1602MHz
VSWR
5G/LTE:698-960MHz≤3/1500-1700MHz≤1.7/1710-2690MHz≤2.2/
3300-5000MHz≤1.9
Wi-Fi:2400-2500MHz≤2/5150-5850MHz≤1.8/5925-7125MHz≤1.5
GNSS:1561-1602MHz≤2
IP-Rating (waterproof?)
IP-67
Mounting
Adhesive Mount
Gain
5G/LTE:698-960MHz 4.2dBi/1500-1700MHz 5.9dBi/1710-2690MHz 8.1dBi/
3300-5000MHz 7.7dBi
Wi-Fi:2400-2500MHz 6.5dBi/5150-5850MHz 6.4dBi/5925-7125MHz 5.6dBi
GNSS:1561-1602MHz 28dB
Sub Types
Combination
Antenna Technology
Combo
Impedance
50Ω
Connector Type
SMA
Antenna Protocols
5G/LTE, Wi-Fi , GNSS
Combination
7-in-1
Types
External
