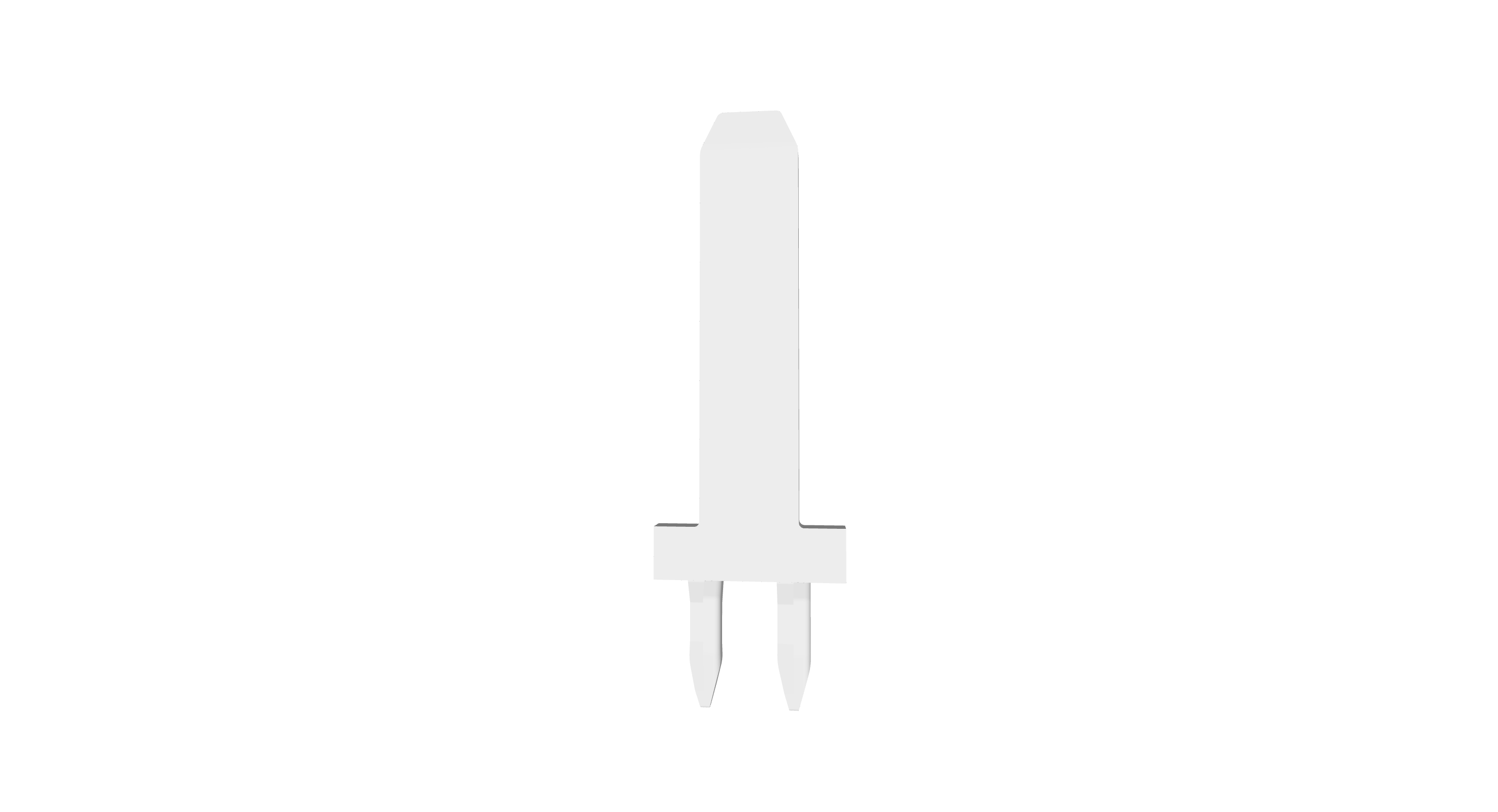

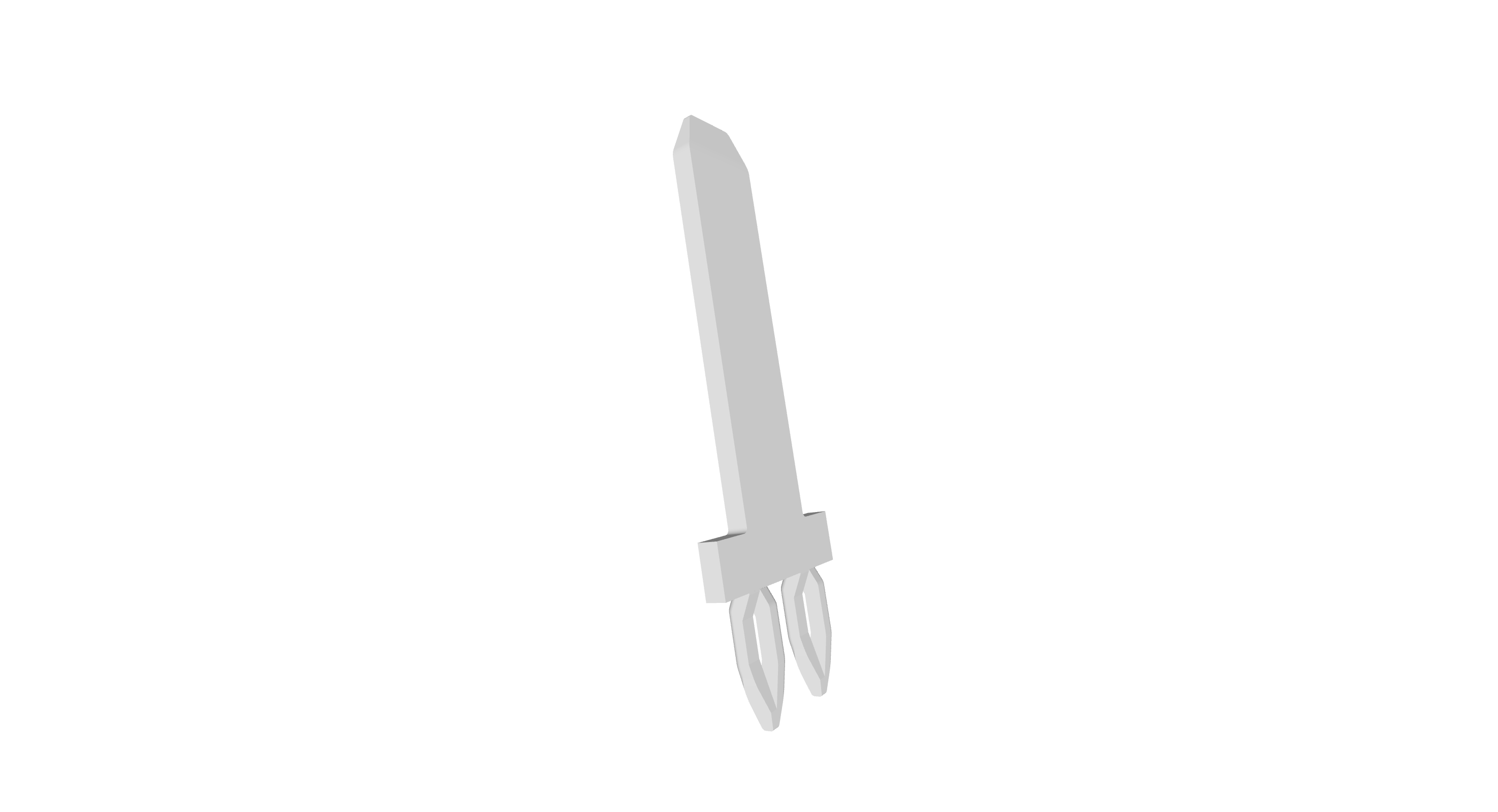

MMP-PF-280-1190-T0-R2
Press-fit Pins
MMP-PF-280
Press Fit Terminal 2.80X0.60 Type, Mating Length: 1190mm
Product Overview
Holding Force (Post-Stress)
≥ 80 N
Material
UNS C51900
Temperature Shock Duration
144 cycles
PCB Thickness
1.6 ± 0.14 mm
Plating
Tin Plating
PCB Hole Diameter
1.00 mm
Mechanical Shock
30g, 6ms, 50 shocks/axis
Test Standards
IEC 512, EN 60068, DIN EN 60 352-5
Tape and Reel Direction
Anti Clock Wise
Humidity Test
21 cycles, 24h each, 25–55°C @ 95% RH
Vibration Test
15–1000 Hz, 10g, 6h/axis
Holding Force (Initial)
≥ 100 N
Industry Climate
21 days, 75% RH, gas exposure
Contact Resistance (Initial)
≤ 0.5 mΩ
Recommended Usage
Higher-current or rugged mechanical designs
Packing Type
Reel
Press-In Force (Sn/Sn)
80 – 250 N
Pin Size (mm)
2.80 × 0.60
Mating Pin Length (mm)
11.9
Temperature Range (Tests)
-40°C to +140°C
