MMUSBC-3224BF-MMWP02-F01
USB
USB3224

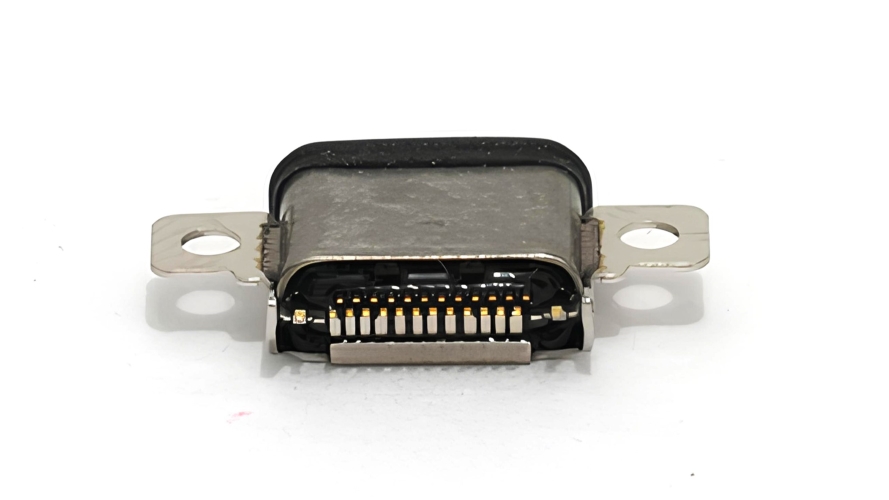

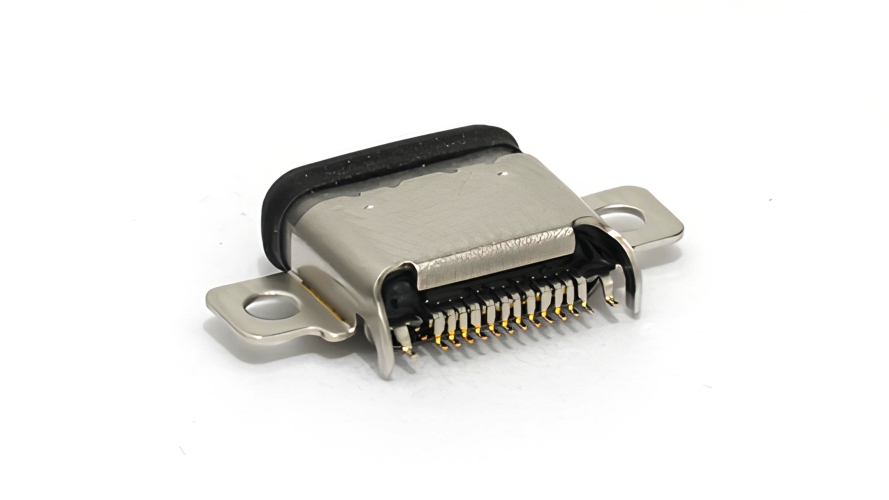

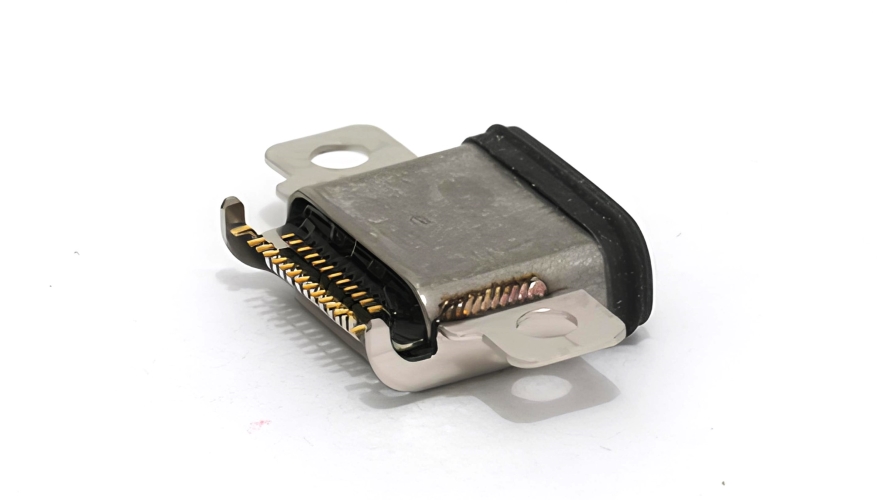

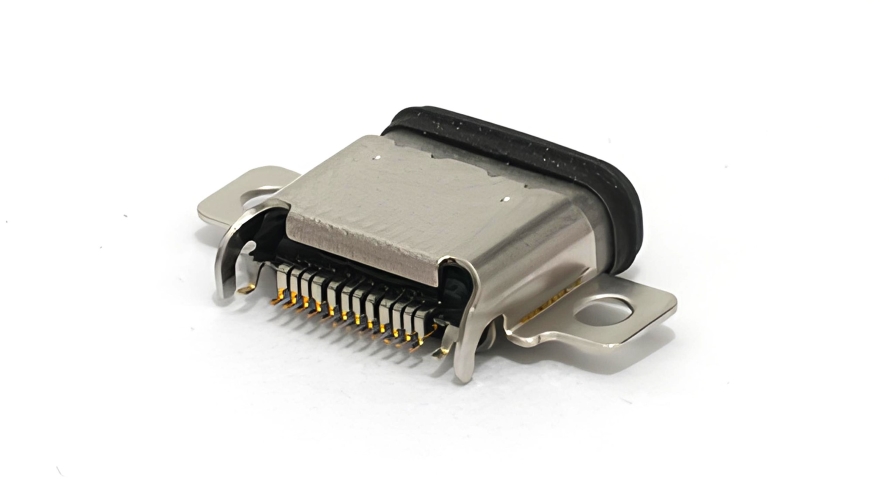

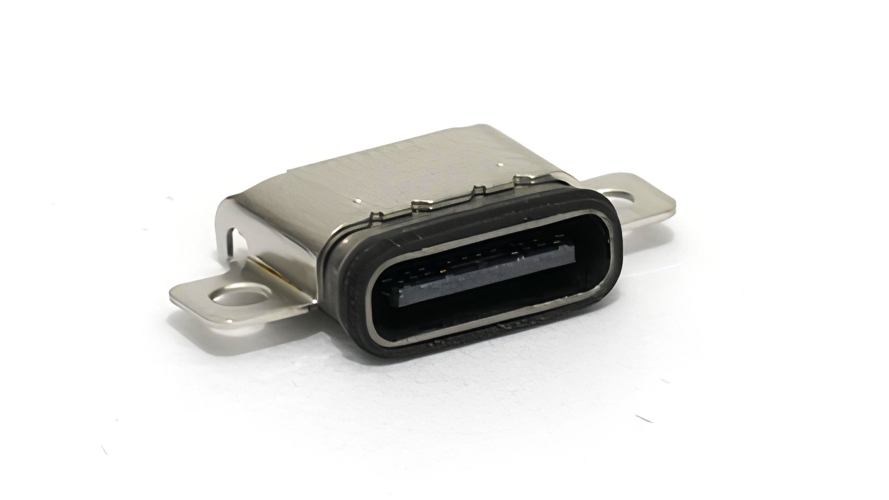

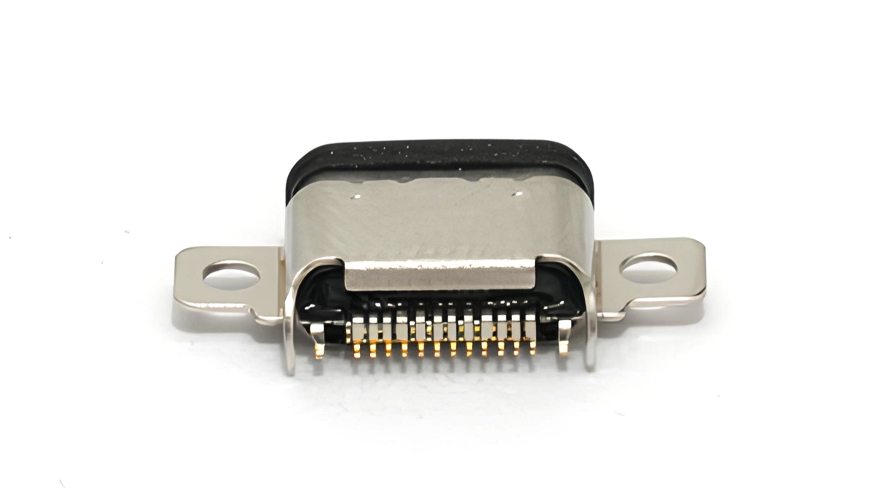

USB 3.2 Type C Receptacle (IPX8)
Product Overview
Current Rating
5A Max VBUS
USB Version
USB3.2 (20 Gbit/s)
PCB Orientation
Top Mount
Durability
10000 Mating Operations
Operating Temperature
-30˚C~+85˚C
Finishing
Full gold 1u" on contact area and termination.
Product Line
USB313WF
Packaging
Tape and Reel package
Contact Pitch
0.5mm(0.02")
Voltage Rating
20V DC/AC
Orientation
Horizontal
Waterproof / Non Waterproof
Waterproof
Mating/Relate Parts
USB Series Type C Plug Connector
Vibration
N/A
Available Pin Counts
24
Gender
Female
Contact Resistance
Initial: 40mΩ Max.
After Stress:△10mΩ Max.
