MMANT-1500701-UF-000
Antenna
Antenna

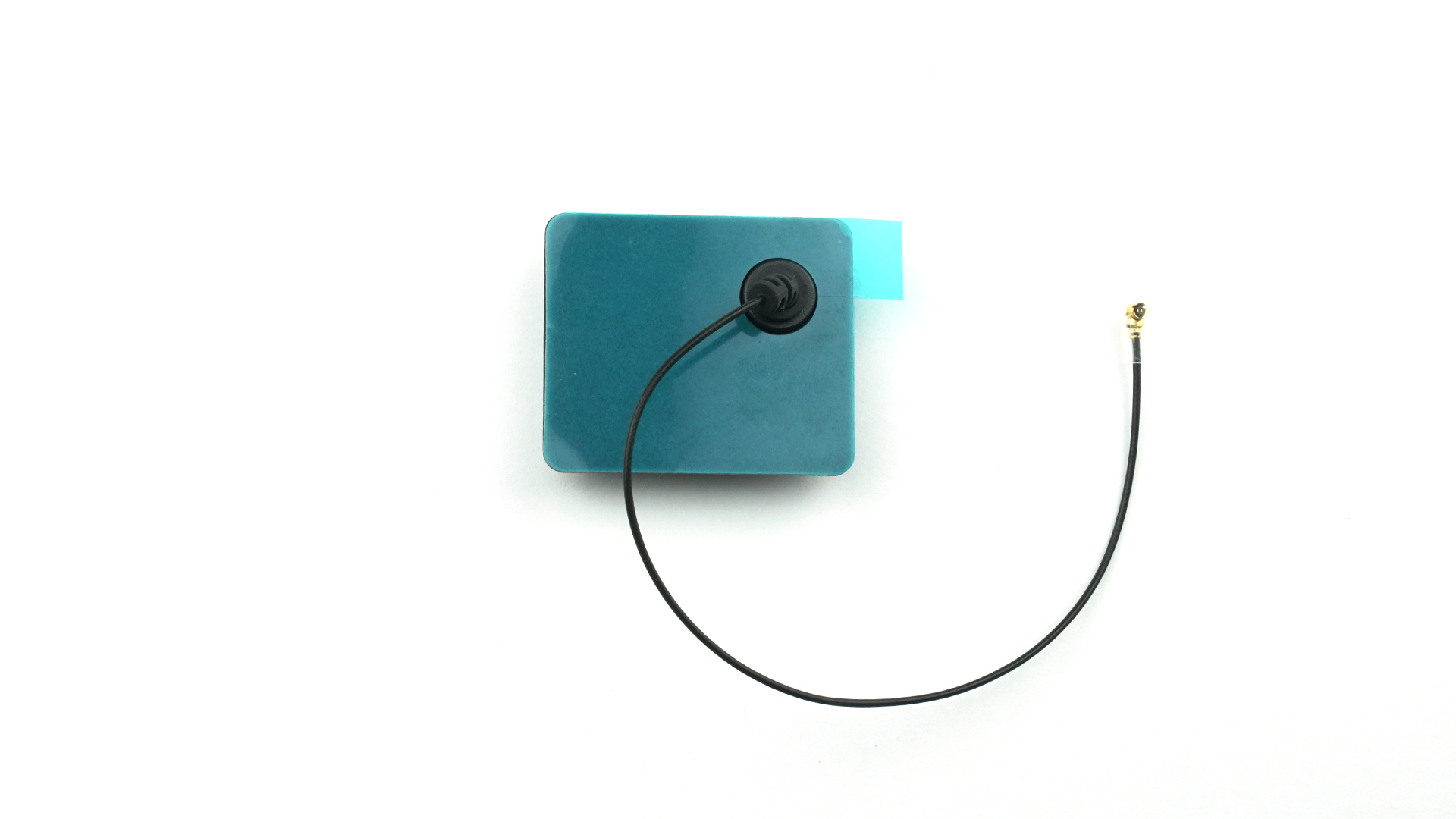

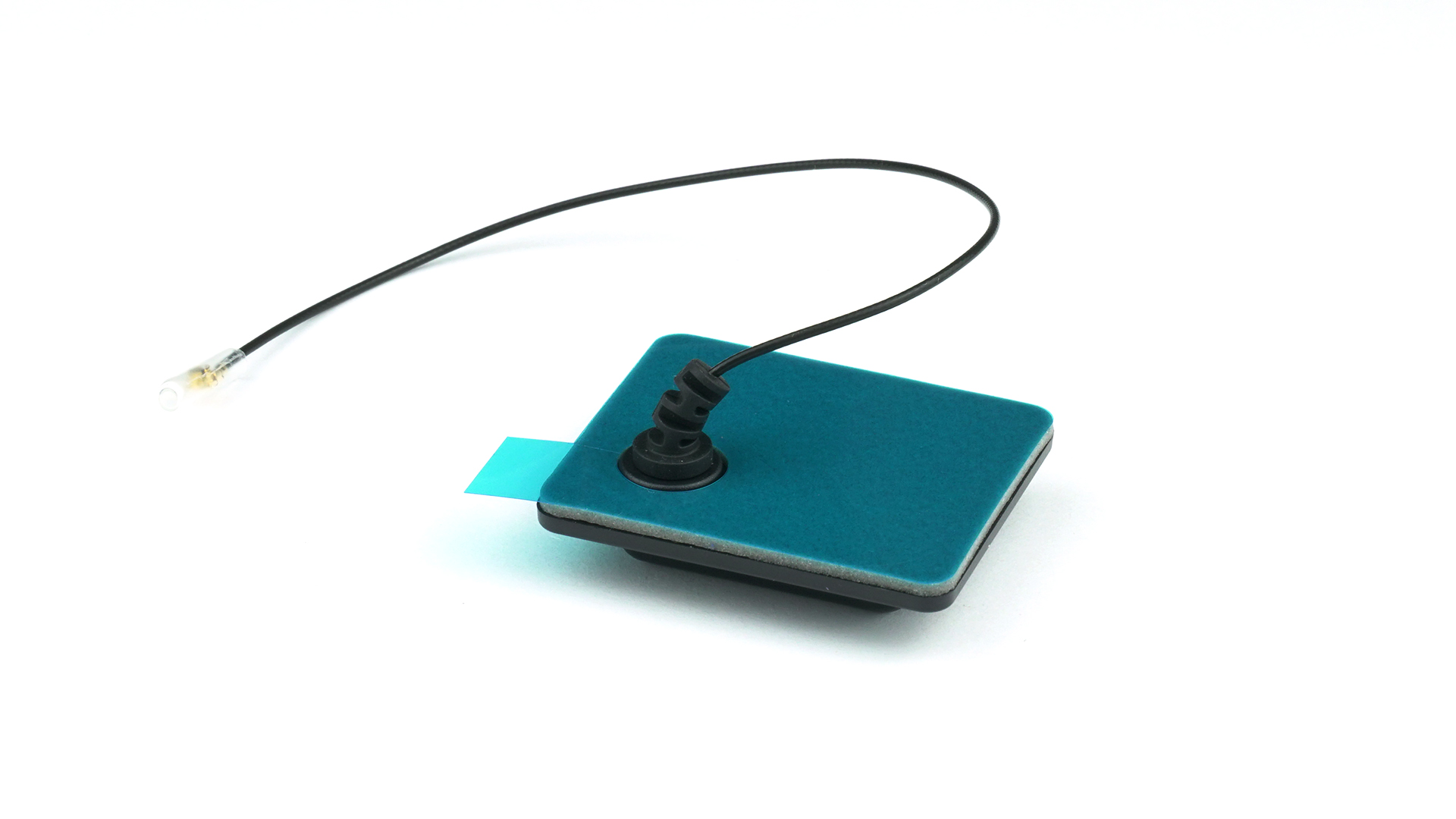

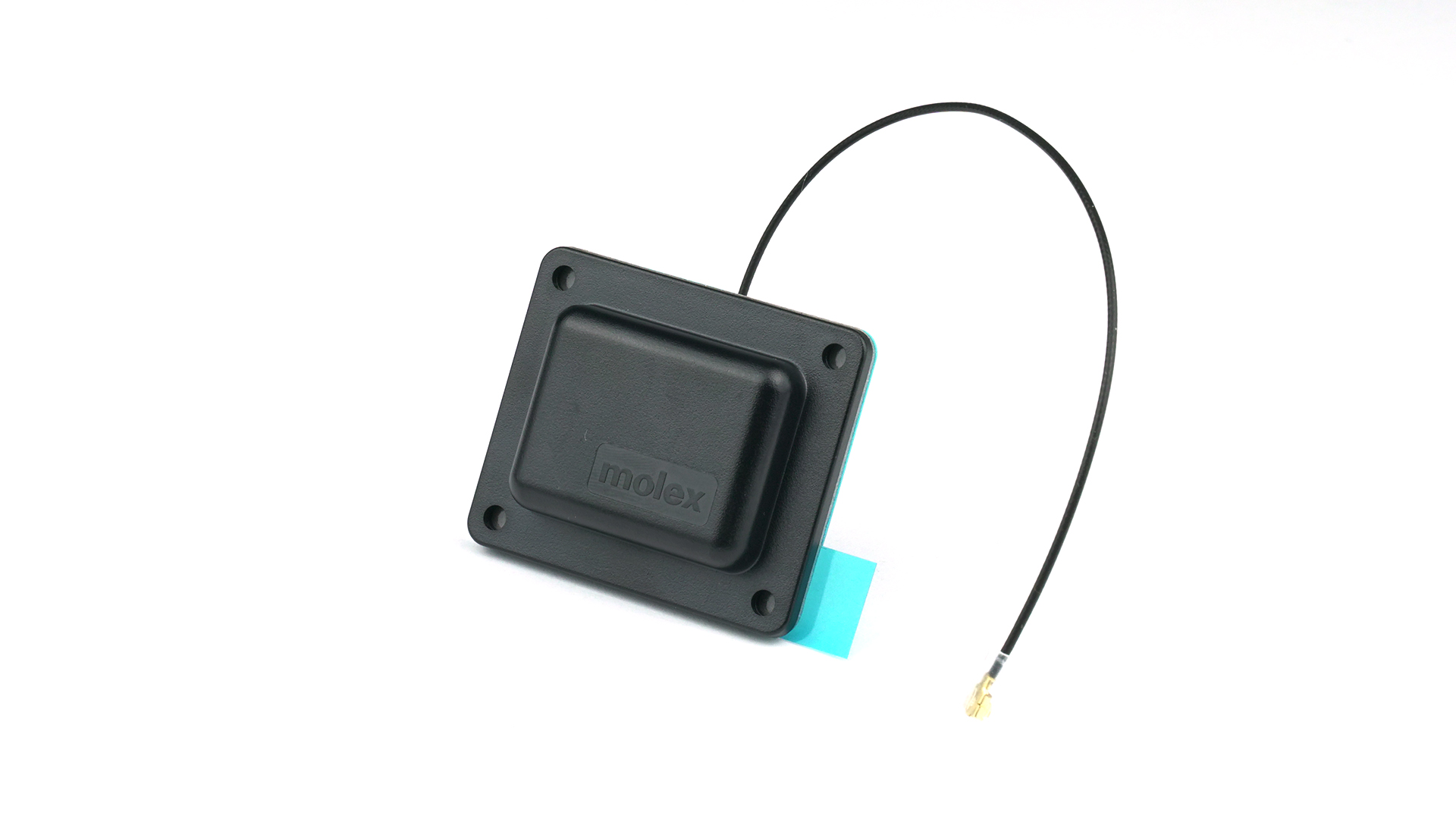

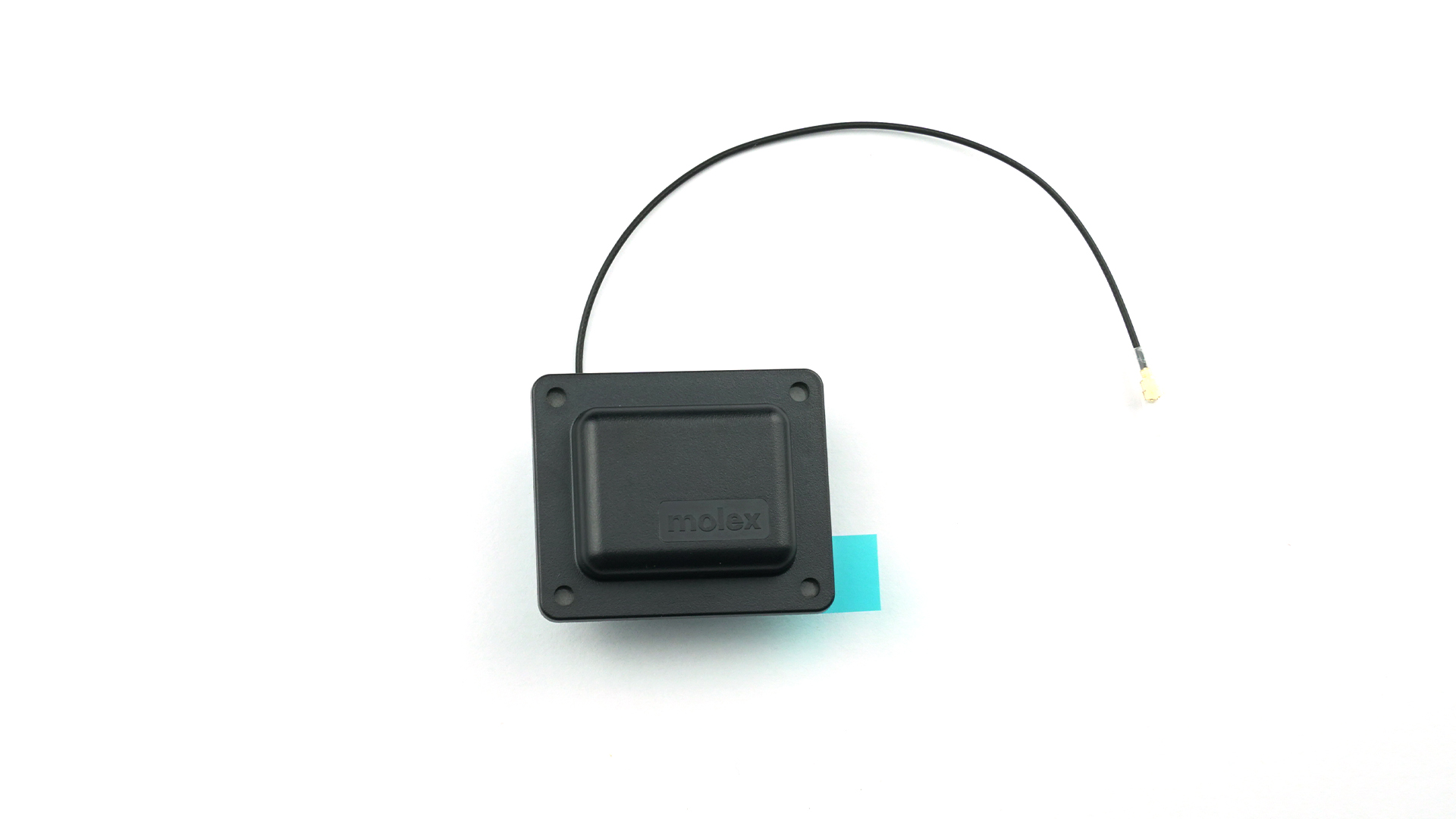

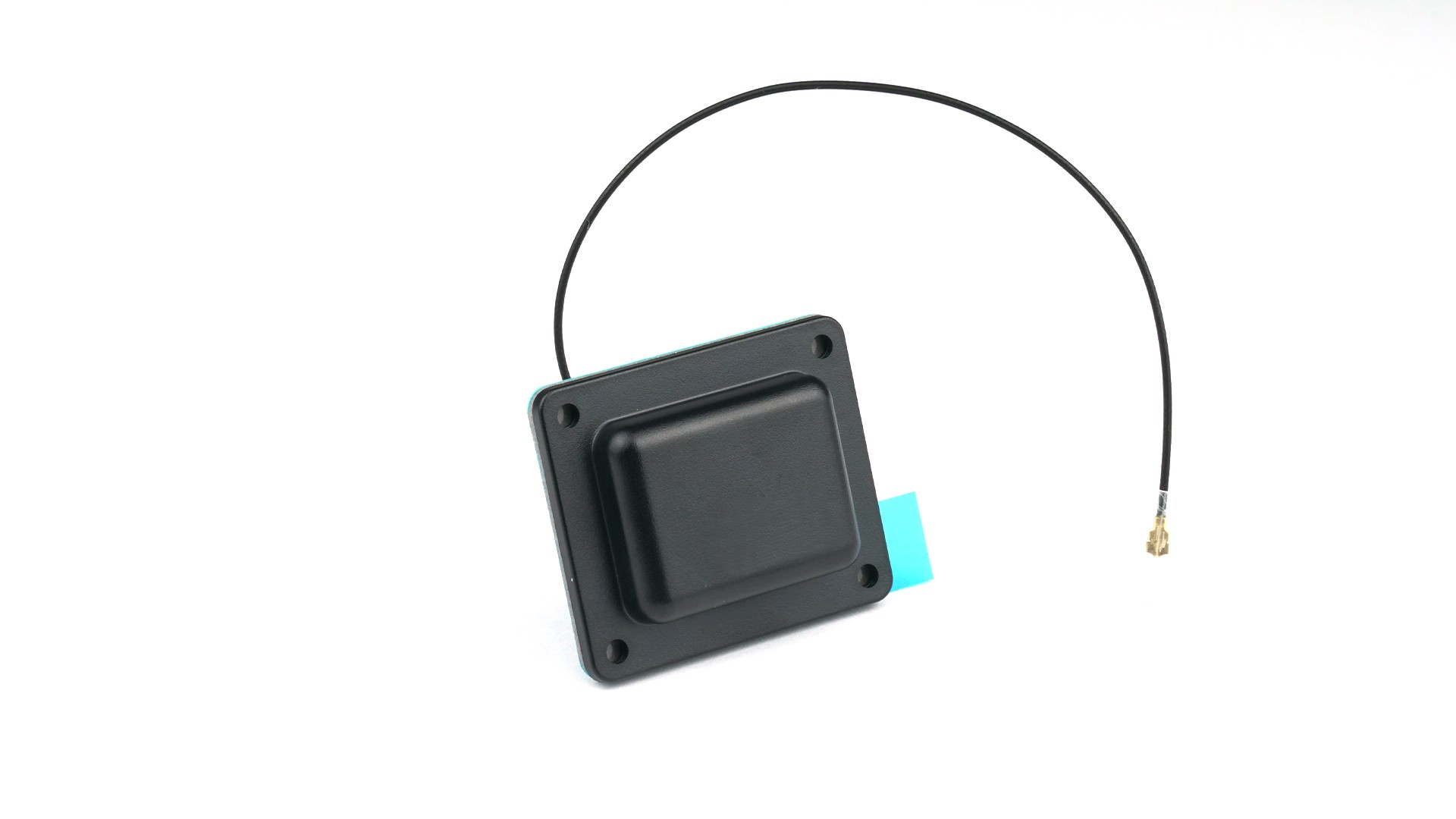

On Metal Dual Band Wifi Antenna (2.4-2.485 GHz, 5.15-5.85GHz), U.FL Cable
Product Overview
Mounting
Screw Mount
Antenna Protocols
Wi-Fi/BT
Impedance
50Ω
Types
Internal/Embedded
Combination
/
IP-Rating (waterproof?)
-
Gain
Peak Gain (Max):2.4-2.5GHz 1.8dBi /5.15-5.85GHz 5.5dBi
VSWR
2400MHz~2500MHz VSWR;≤3.0
5150MHz~5850MHz VSWR;≤4.0
Operating Frequency Range
2.4-2.485GHz 5.15-5.85GHz
Antenna Technology
Wi-Fi
Connector Type
MHF
Sub Types
Whip
