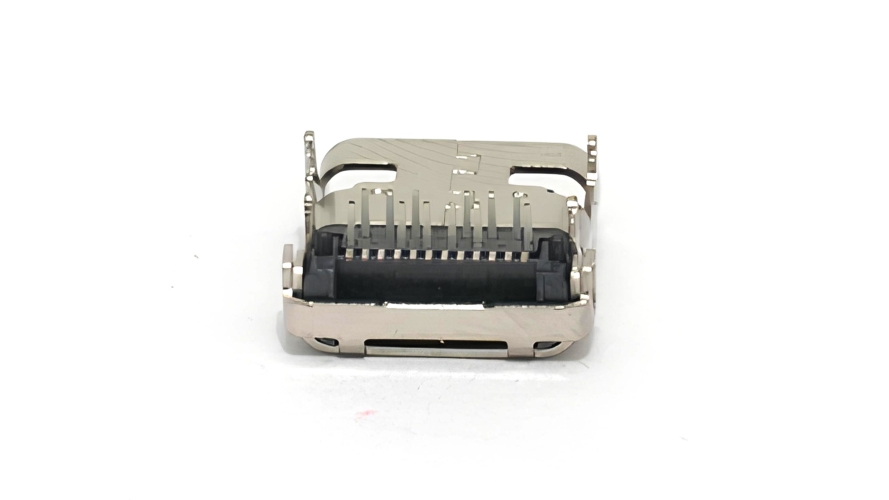

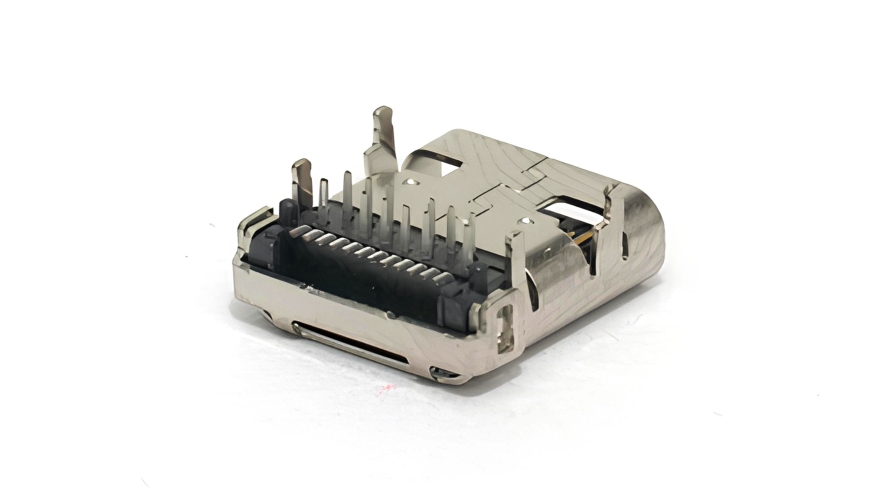

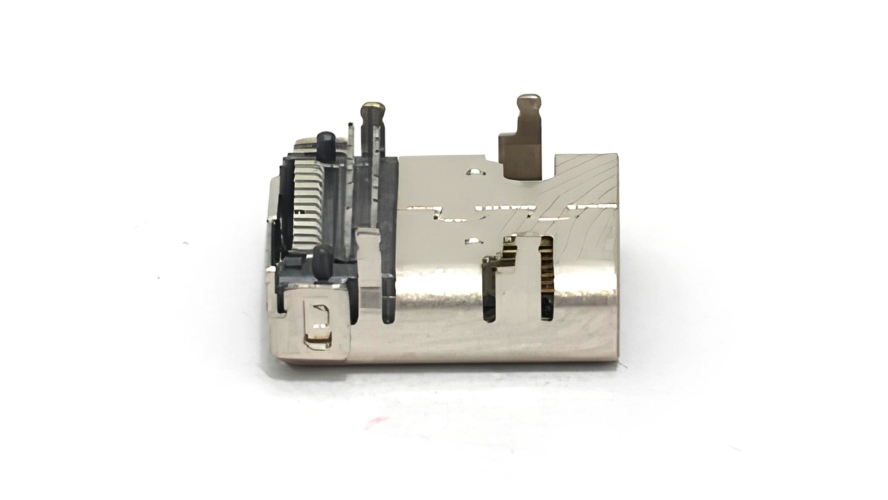

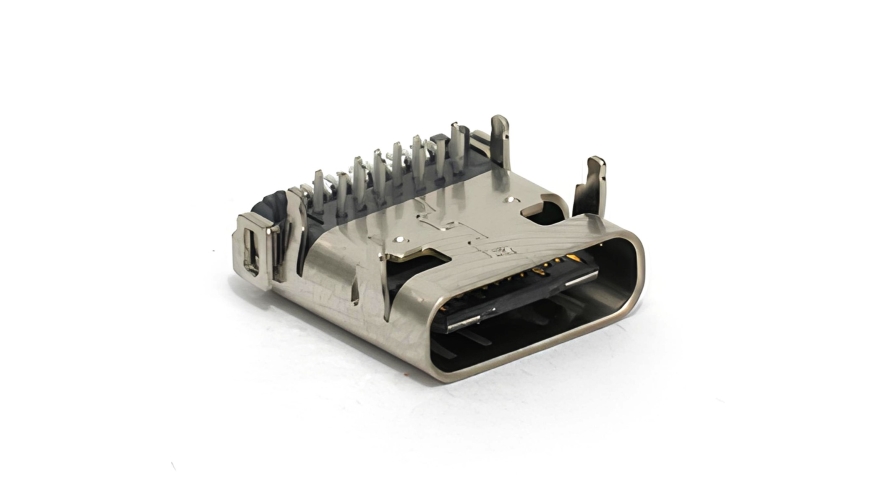

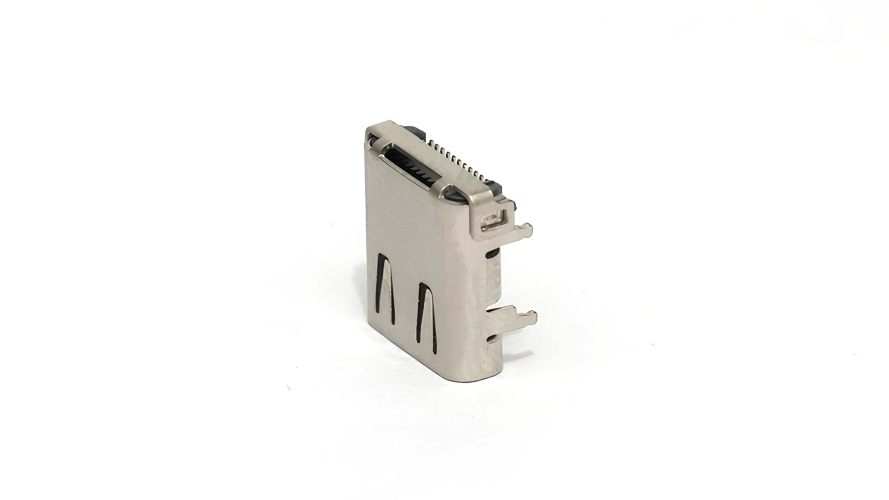

MMUSBC-3224AF-SMHS-G01
USB
USB3224
USB 3.2 Type C Receptacle Top Mount DIP+SMT Type
Product Overview
Durability
10000 Mating Operations
Current Rating
5A Max VBUS
Waterproof / Non Waterproof
Non Waterproof
Product Line
UTC232
PCB Orientation
Top Mount
Voltage Rating
30V DC/AC
Contact Pitch
0.5mm(0.02")
Finishing
Gold finish 1u" on contact area, Tin finish on termination.
Available Pin Counts
24
Contact Resistance
Initial: 40mΩ Max.
After Stress:△10mΩ Max.
USB Version
USB3.2 (20 Gbit/s)
Packaging
Tape and Reel package
Vibration
15 minutes in each of 3 mutually perpendicularaxes,20~500Hz, 0.02 g2/Hz
Orientation
Horizontal
Operating Temperature
-30˚C~+85˚C
Mating/Relate Parts
USB Series Type C Plug Connector
Gender
Female
