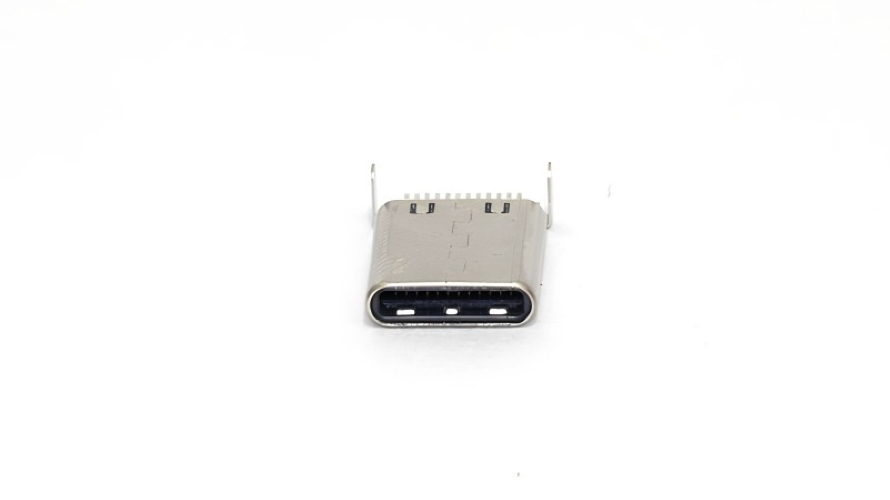

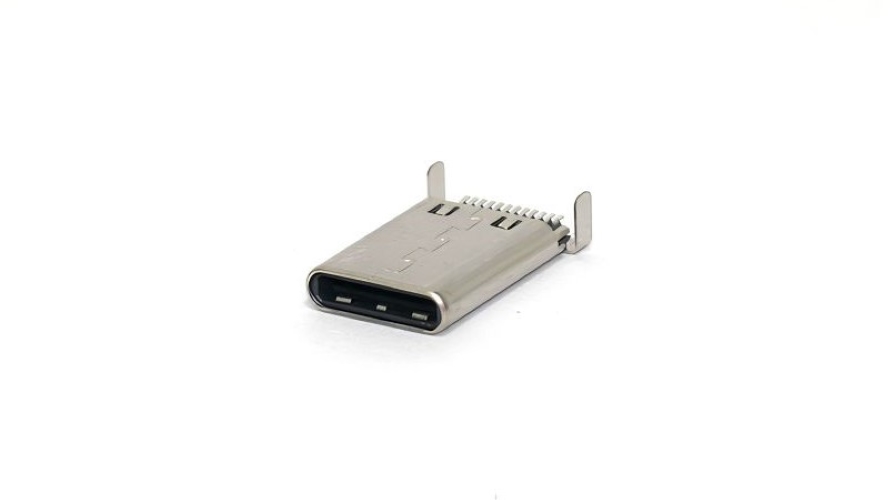

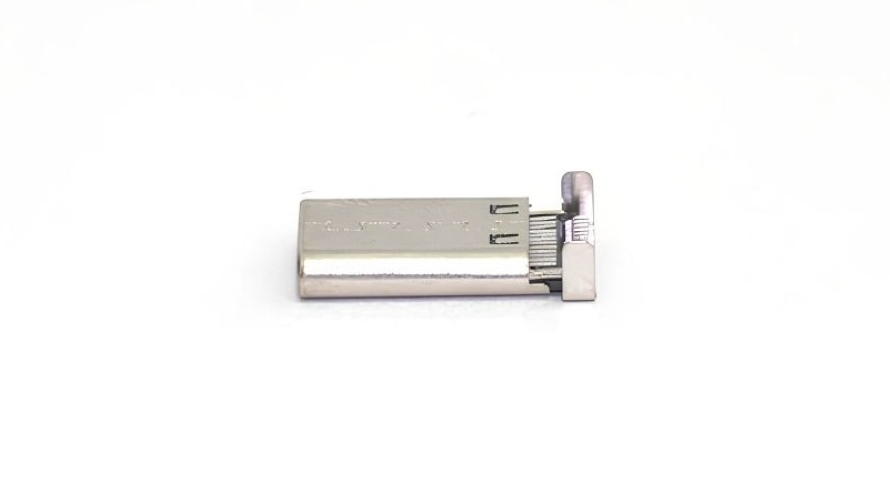

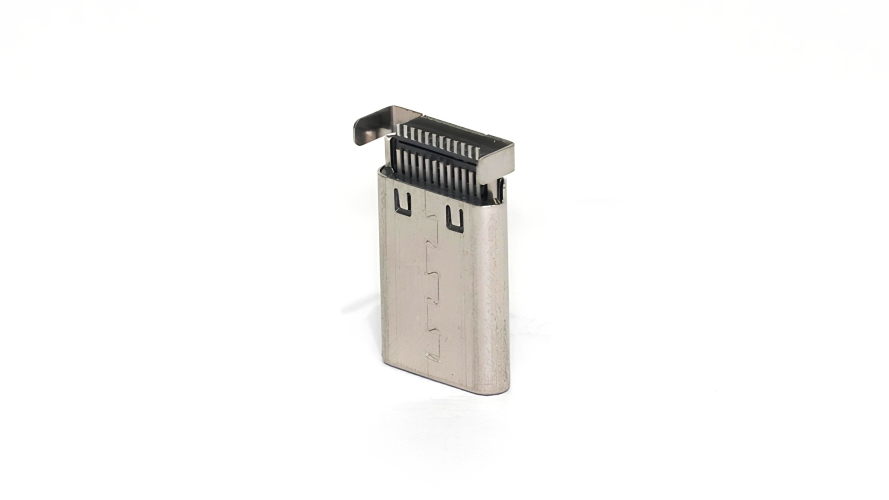

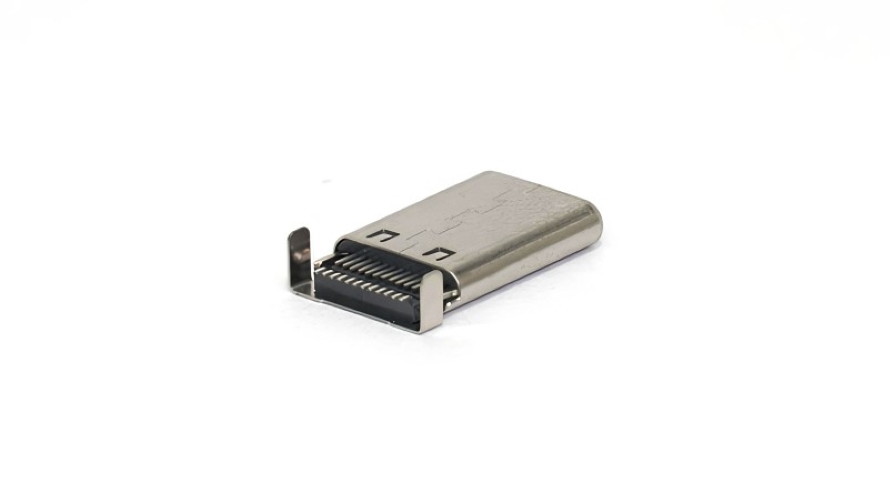

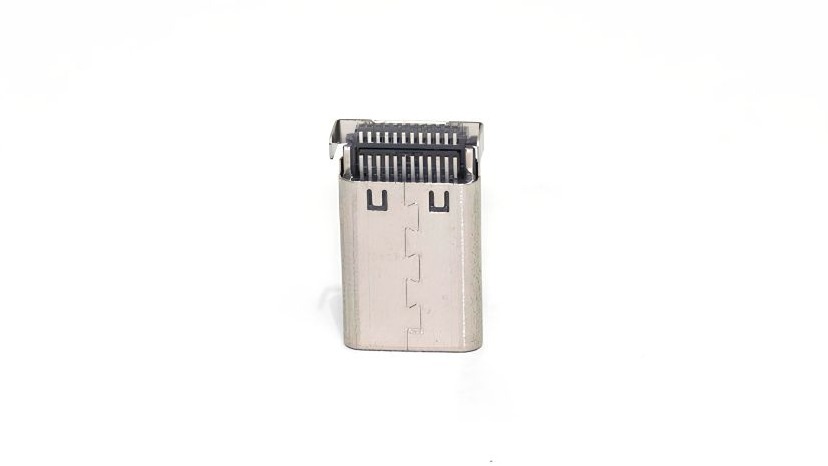

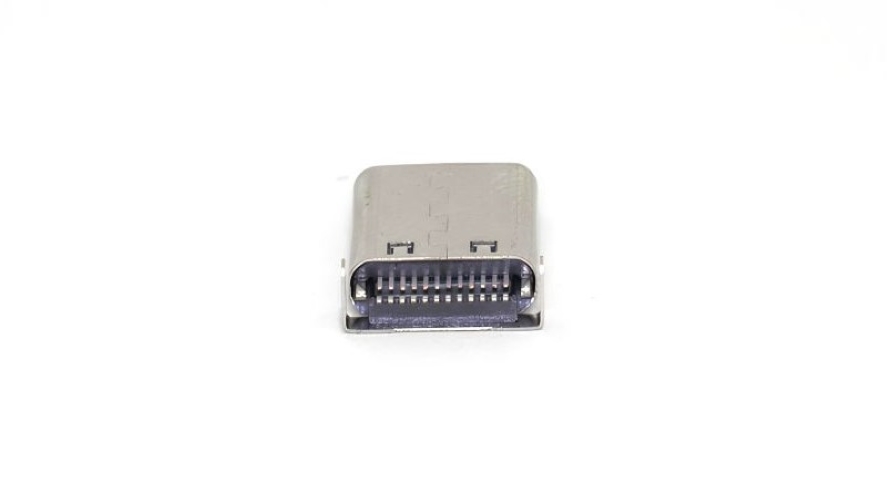

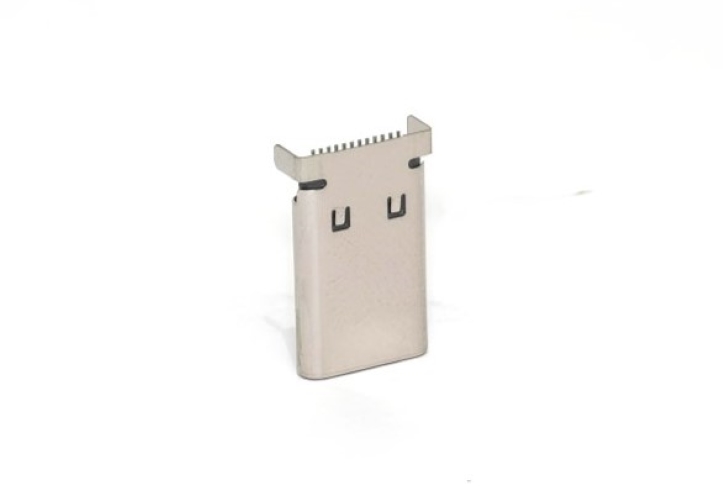

MMUSBC-4024BM-BMHS-G01
USB
USB4024
USB 4.0 Type C Plug Board Mount Offset 0.95mm SMT Type
Product Overview
Available Pin Counts
24
Contact Pitch
0.5mm(0.02")
Contact Resistance
Initial: 40mΩ Max.
After Stress:△10mΩ Max.
Current Rating
5A Max VBUS
Durability
10000 Mating Operations
Finishing
Gold finish 1u" on contact area, Tin finish on termination.
Gender
Male
Mating/Relate Parts
USB Series Type C Receptacle Connector
Operating Temperature
-40˚C~+85˚C
Orientation
Horizontal
PCB Orientation
Board Mount
Packaging
Tape and Reel package
Product Line
USB402
USB Version
USB4.0 (40 Gbit/s)
Vibration
Random vibration
-Frequency: 20~500Hz
-Power Spectral density:0.02 g2/Hz
-Acceleration: 3.1 grms
-Duration: 15 minutes/axis
-Direction: x,y,z axes
Voltage Rating
30V DC/AC
Waterproof / Non Waterproof
Non Waterproof
