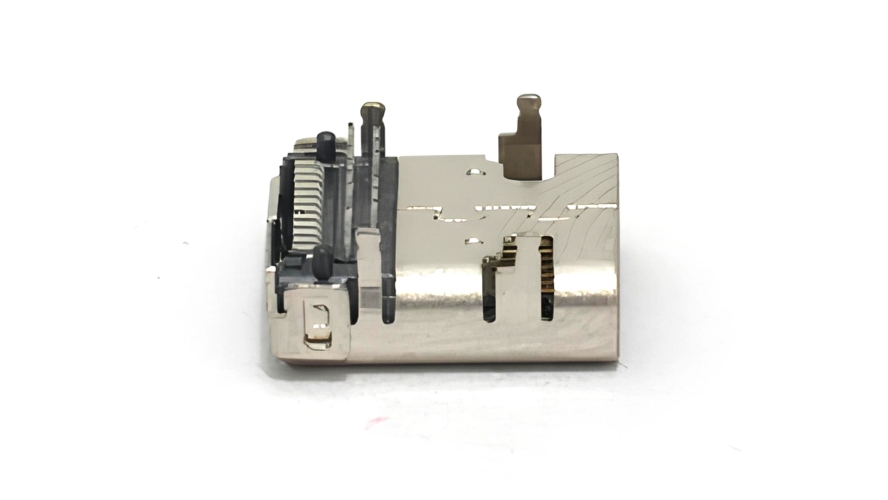

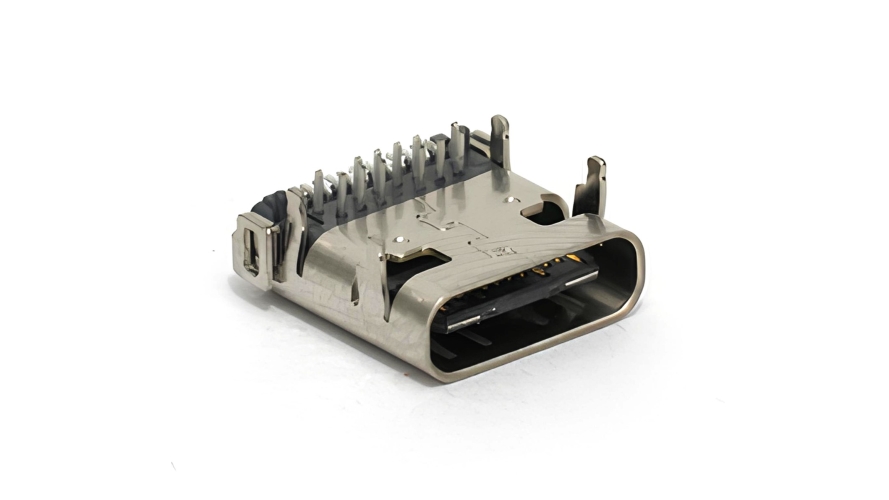

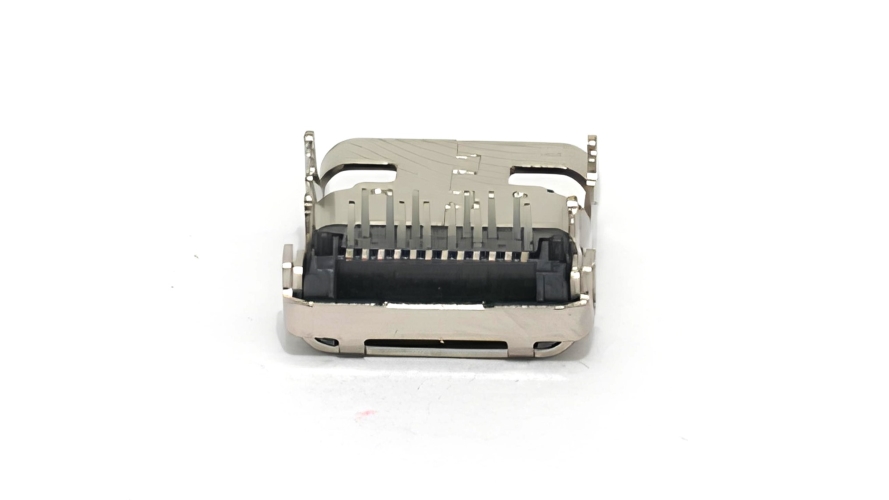

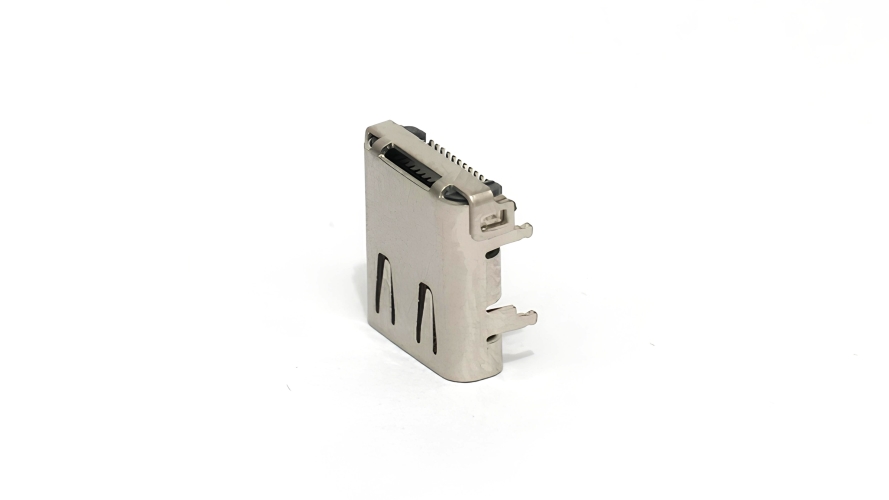

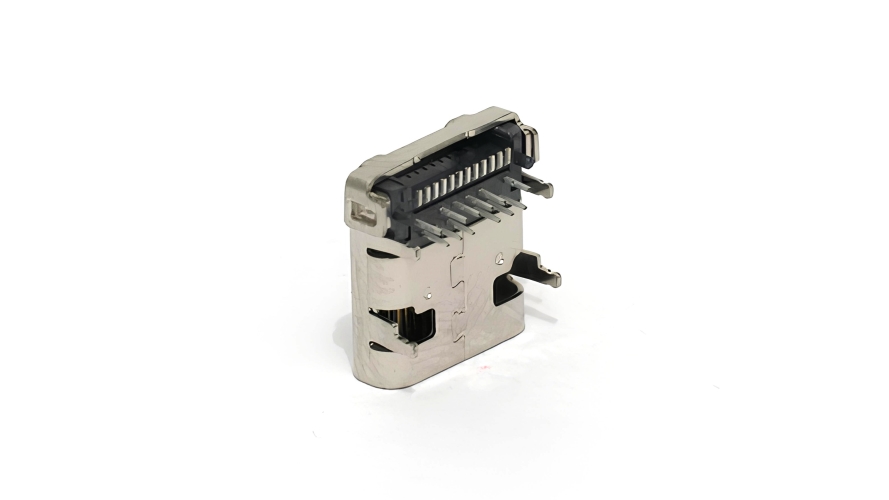

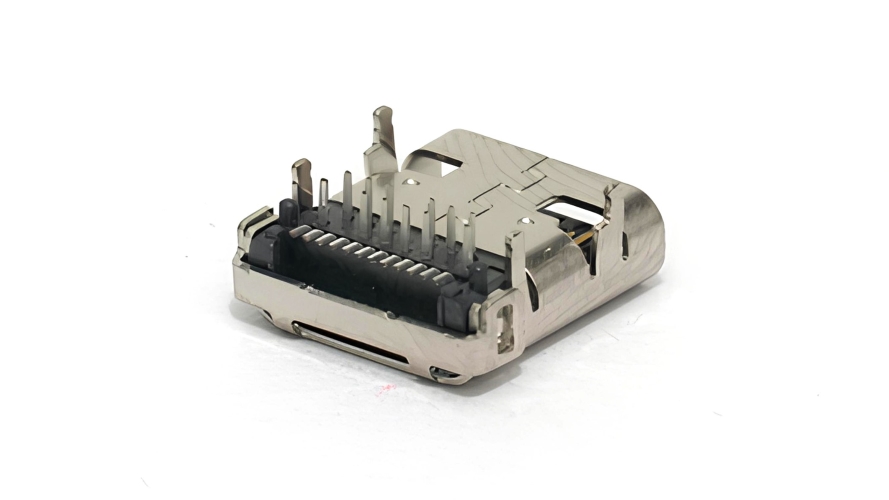

MMUSBC-3224AF-SMHS-G05
USB
USB3224
USB 3.2 Type C Receptacle Top Mount DIP+SMT Type
Product Overview
PCB Orientation
Top Mount
Gender
Female
Current Rating
5A Max VBUS
USB Version
USB3.2 (20 Gbit/s)
Waterproof / Non Waterproof
Non Waterproof
Operating Temperature
-30˚C~+85˚C
Orientation
Horizontal
Product Line
UTC232
Voltage Rating
30V DC/AC
Packaging
Tape and Reel package
Finishing
Gold 5u" finish on contact area, Tin finish on termination.
Contact Pitch
0.5mm(0.02")
Contact Resistance
Initial: 40mΩ Max.
After Stress:△10mΩ Max.
Available Pin Counts
24
Mating/Relate Parts
USB Series Type C Plug Connector
Durability
10000 Mating Operations
Vibration
15 minutes in each of 3 mutually perpendicularaxes,20~500Hz, 0.02 g2/Hz
