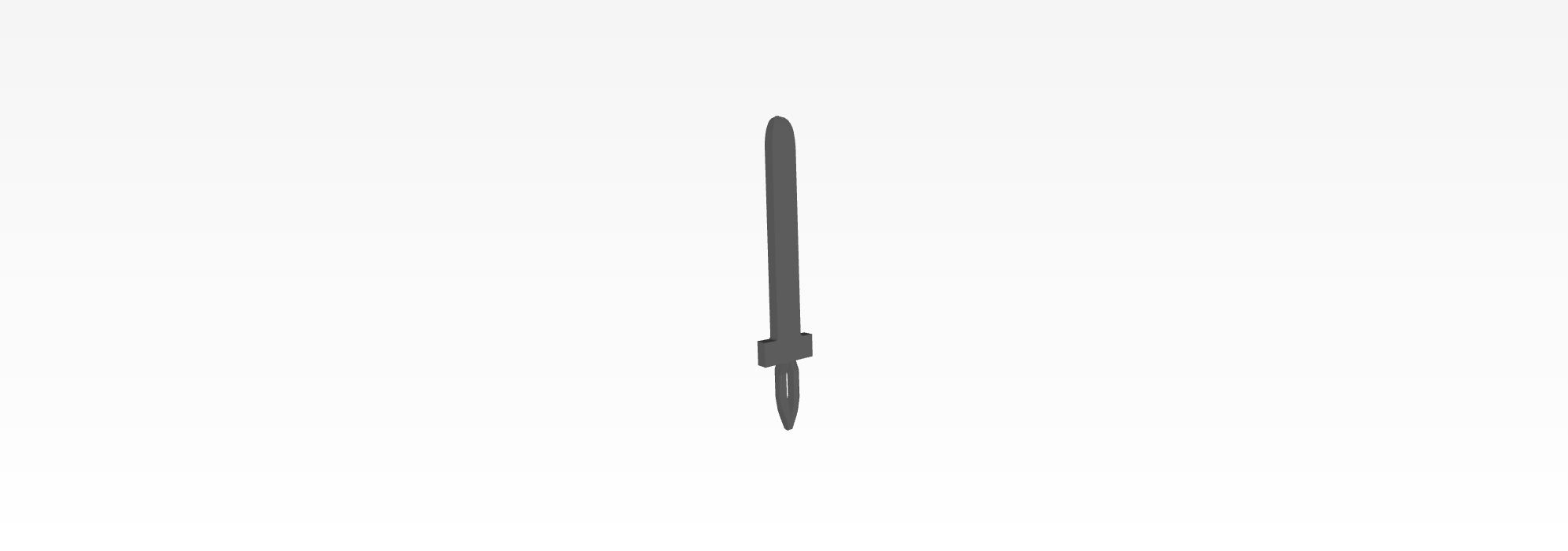

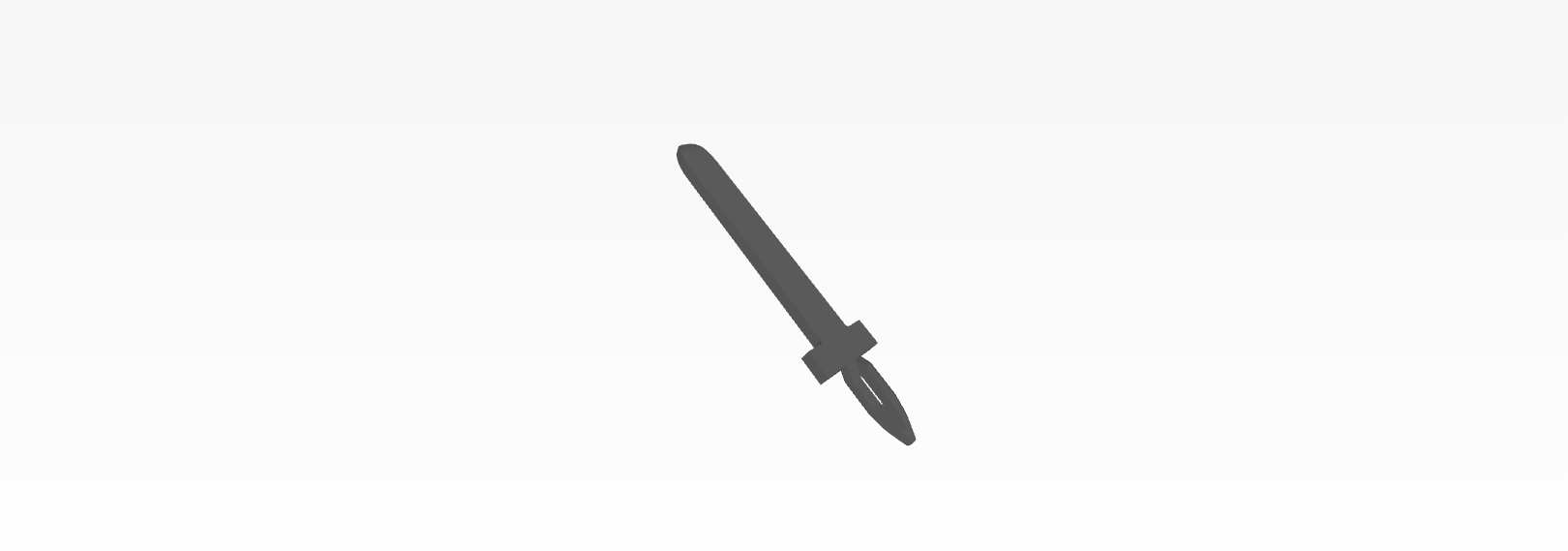

MMP-PF-150-1120-T0-R2
Press-fit Pins
MMP-PF-150
Press Fit Terminal 1.50X0.60 Type, Mating Length: 1120mm
Product Overview
Tape and Reel Direction
Anti Clock Wise
Recommended Usage
Medium-current signal or power applications
PCB Hole Diameter
1.00 mm
Vibration Test
15–1000 Hz, 10g, 6h/axis
Packing Type
Reel
Mechanical Shock
30g, 6ms, 50 shocks/axis
Holding Force (Initial)
≥ 50 N
Industry Climate
21 days, 75% RH, gas exposure
PCB Thickness
1.6 ± 0.14 mm
Mating Pin Length (mm)
11.2
Temperature Shock Duration
144 cycles
Contact Resistance (Initial)
≤ 0.5 mΩ
Holding Force (Post-Stress)
≥ 40 N
Temperature Range (Tests)
-40°C to +140°C
Test Standards
IEC 512, EN 60068, DIN EN 60 352-5
Plating
Tin Plating
Humidity Test
21 cycles, 24h each, 25–55°C @ 95% RH
Press-In Force (Sn/Sn)
60 – 180 N
Pin Size (mm)
1.50 × 0.60
Material
UNS C51900
