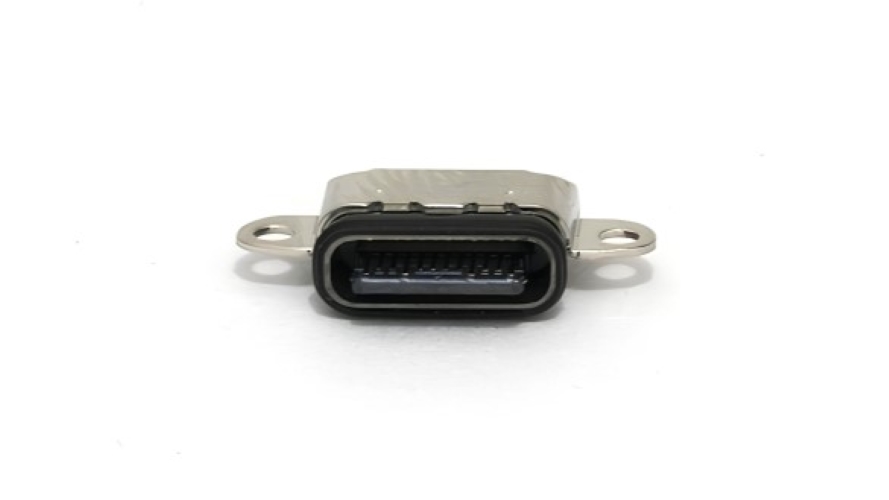

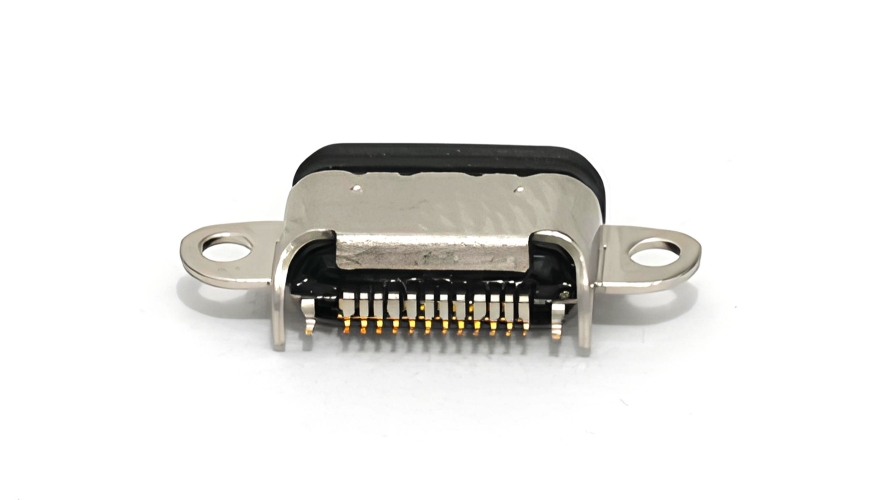

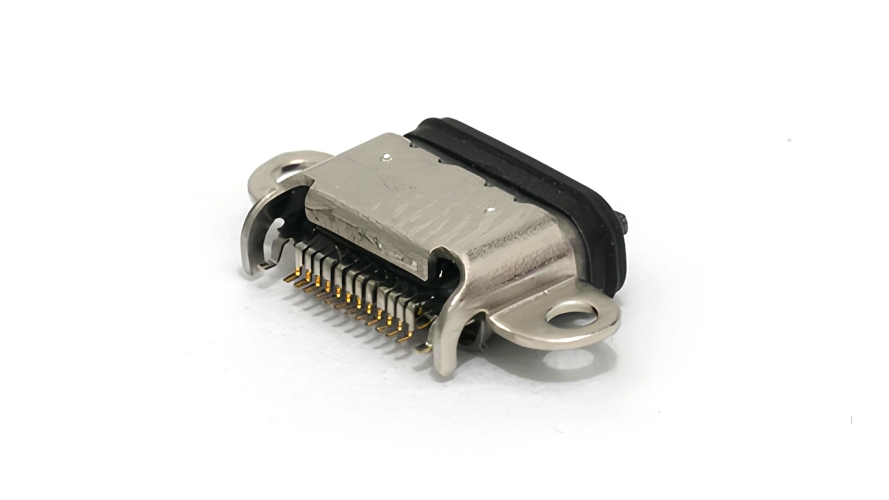

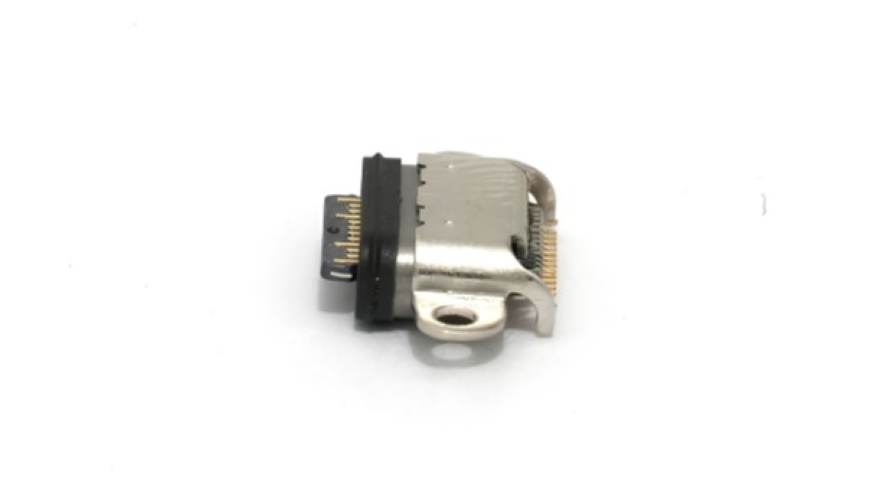

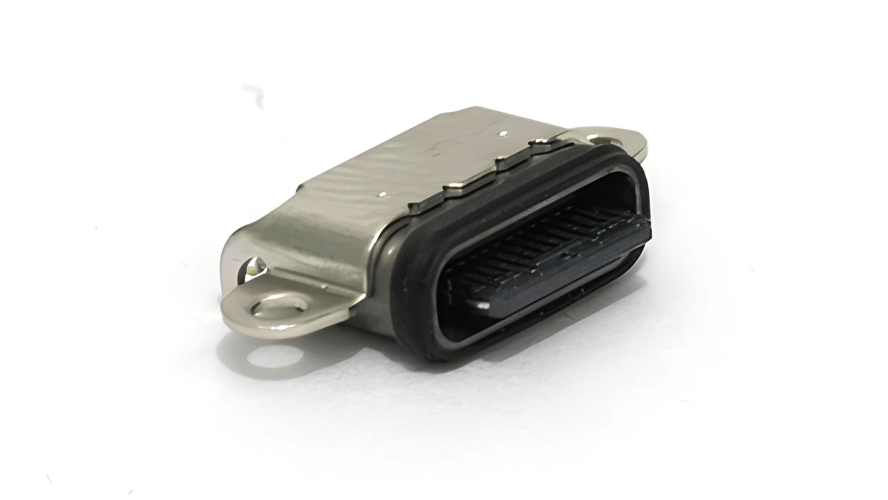

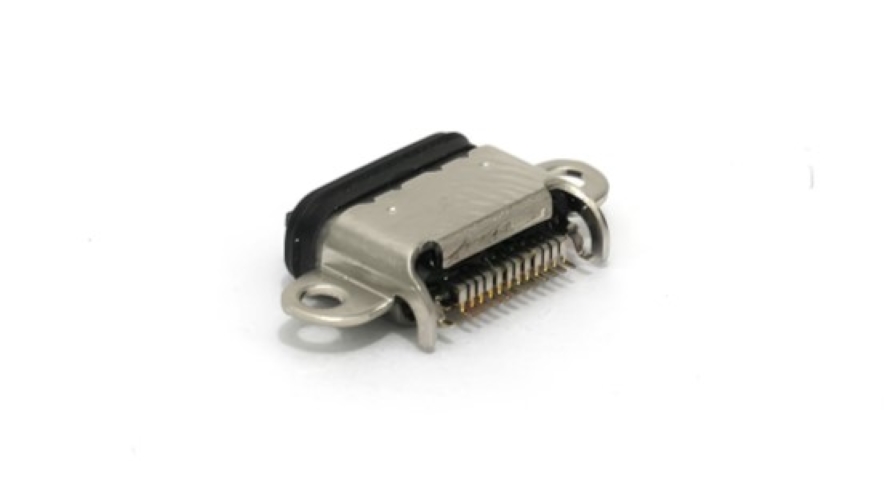

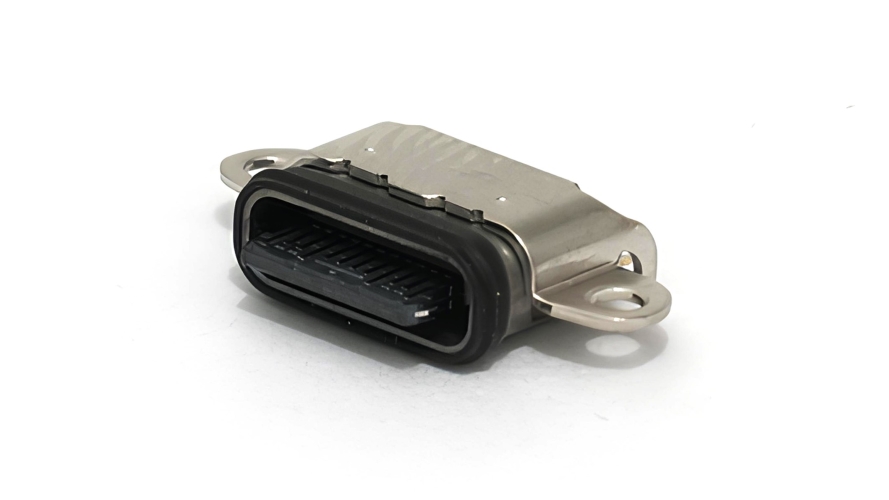

MMUSBC-3224BF-MMWP01-G05
USB
USB3224
USB 3.2 Type C Receptacle (IPX8)
Product Overview
Contact Resistance
Initial: 40mΩ Max.
After Stress:△10mΩ Max.
Mating/Relate Parts
USB Series Type C Plug Connector
Contact Pitch
0.5mm(0.02")
USB Version
USB3.2 (20 Gbit/s)
Product Line
USB313WF
Operating Temperature
-30˚C~+85˚C
Voltage Rating
20V DC/AC
Packaging
Tape and Reel package
PCB Orientation
Top Mount
Gender
Female
Current Rating
5A Max VBUS
Durability
10000 Mating Operations
Available Pin Counts
24
Orientation
Horizontal
Finishing
Full gold 5u" on contact area and termination.
Vibration
N/A
Waterproof / Non Waterproof
Waterproof
