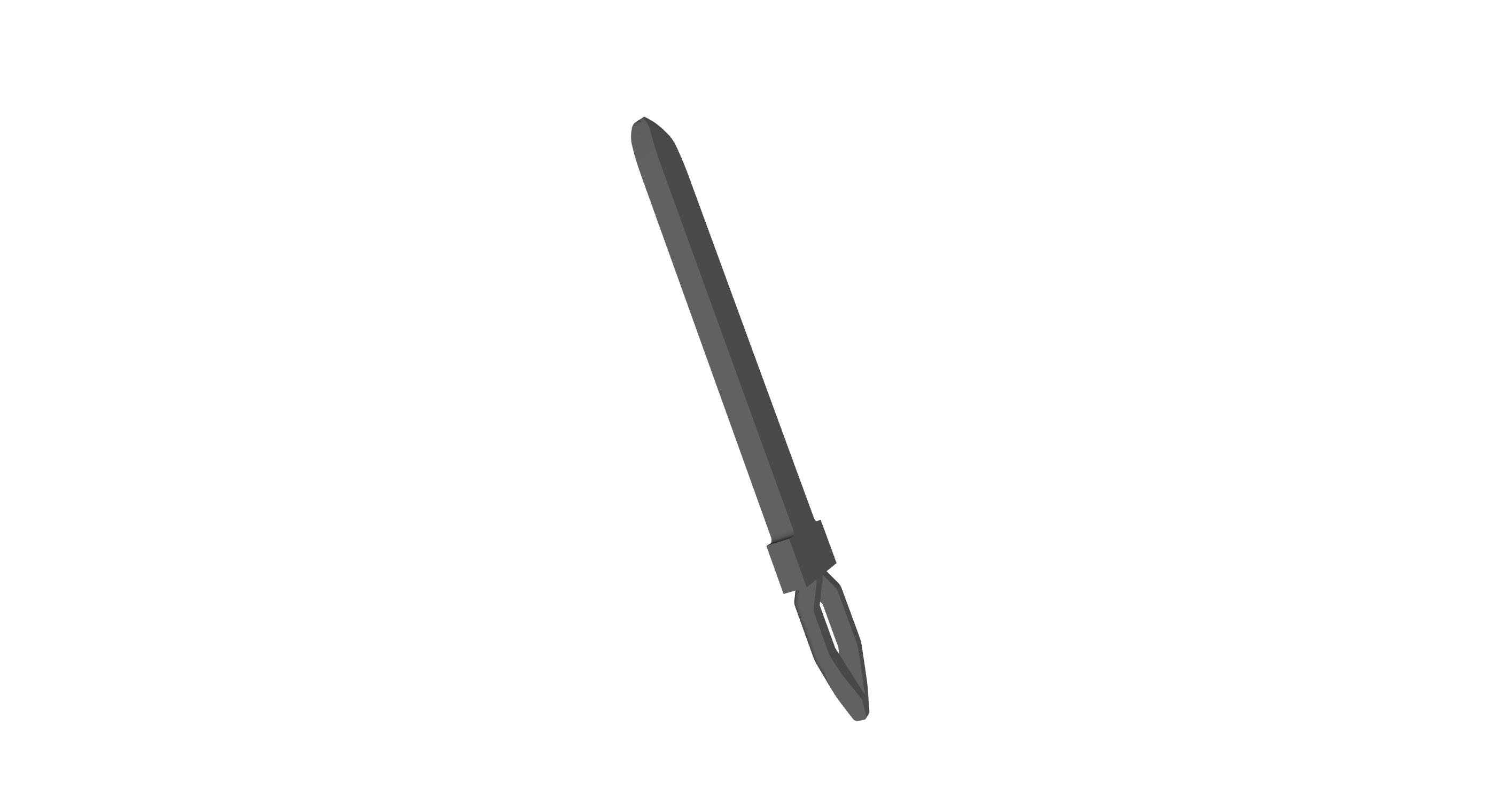

MMP-PF-150-1160-T0-R1
Press-fit Pins
MMP-PF-150
Press Fit Terminal 1.50X0.60 Type, Mating Length: 1160mm
Product Overview
Recommended Usage
Medium-current signal or power applications
Industry Climate
21 days, 75% RH, gas exposure
Plating
Tin Plating
Material
UNS C51900
Test Standards
IEC 512, EN 60068, DIN EN 60 352-5
Holding Force (Post-Stress)
≥ 40 N
Pin Size (mm)
1.50 × 0.60
PCB Hole Diameter
1.00 mm
Temperature Shock Duration
144 cycles
Mechanical Shock
30g, 6ms, 50 shocks/axis
Contact Resistance (Initial)
≤ 0.5 mΩ
Temperature Range (Tests)
-40°C to +140°C
Tape and Reel Direction
Clock Wise
Holding Force (Initial)
≥ 50 N
Packing Type
Reel
Humidity Test
21 cycles, 24h each, 25–55°C @ 95% RH
Press-In Force (Sn/Sn)
60 – 180 N
Mating Pin Length (mm)
11.6
Vibration Test
15–1000 Hz, 10g, 6h/axis
PCB Thickness
1.6 ± 0.14 mm
