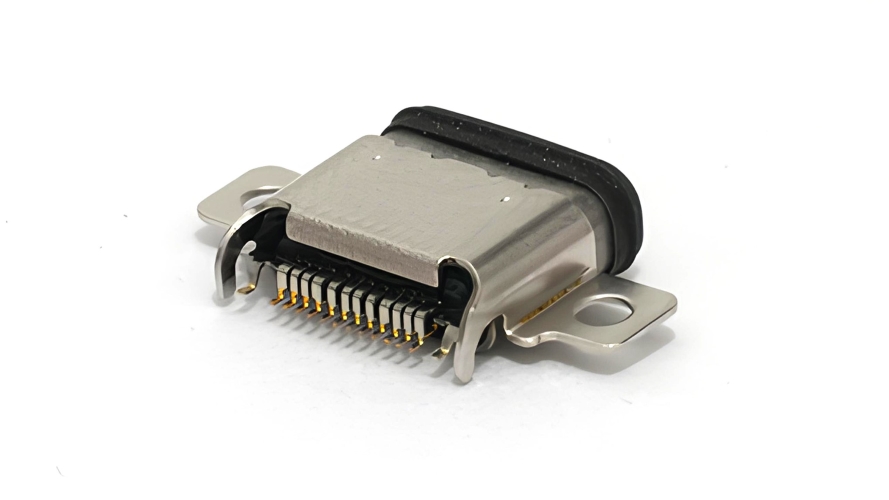

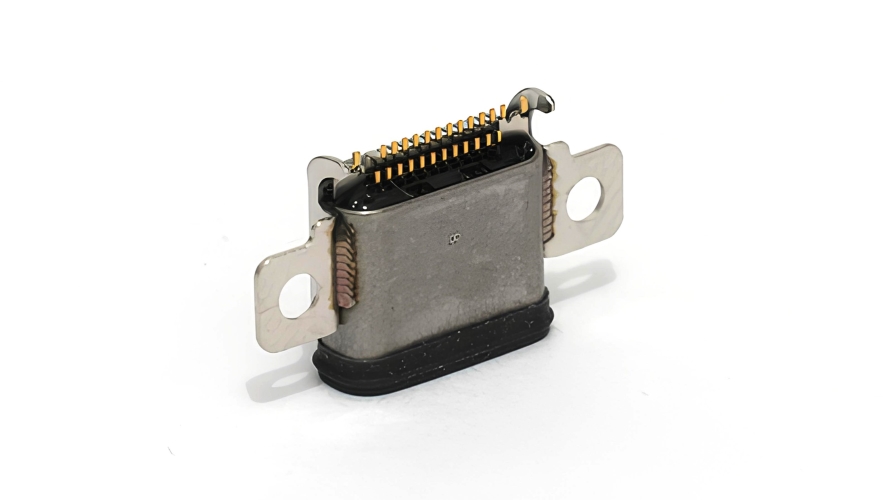

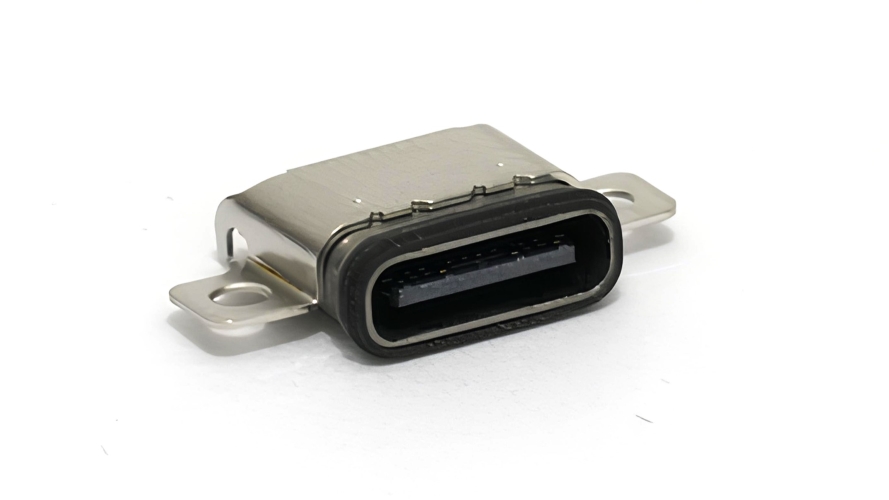

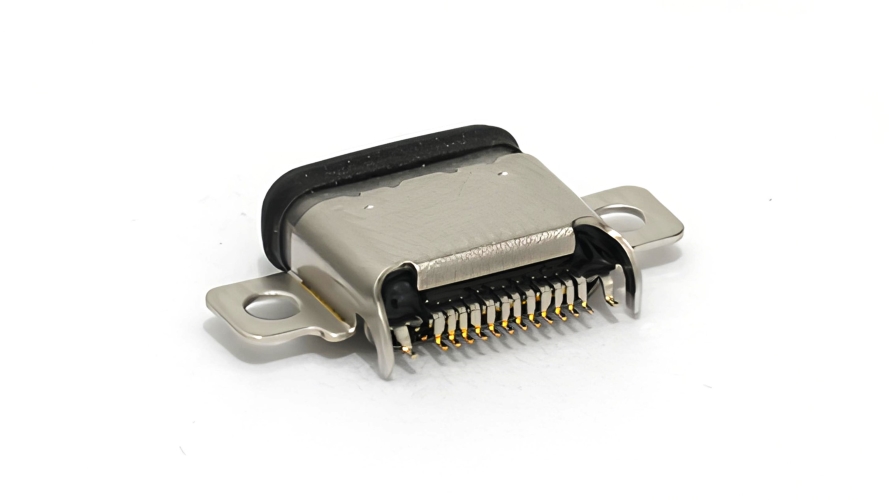

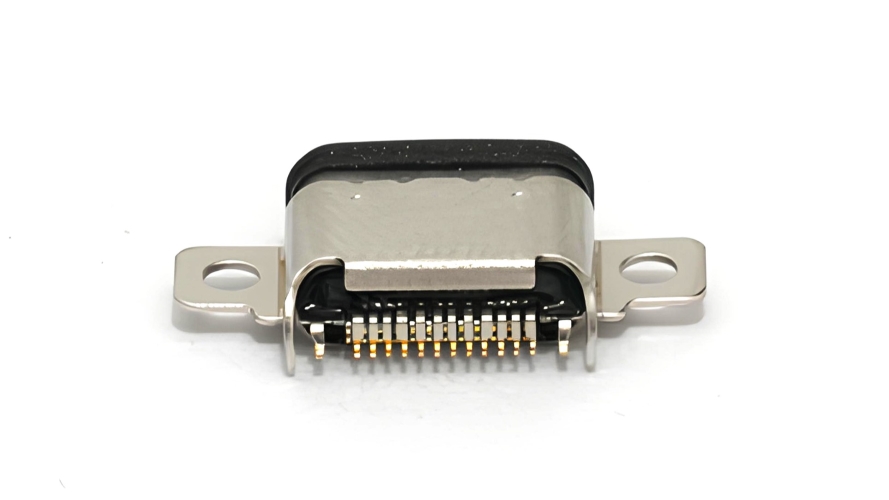

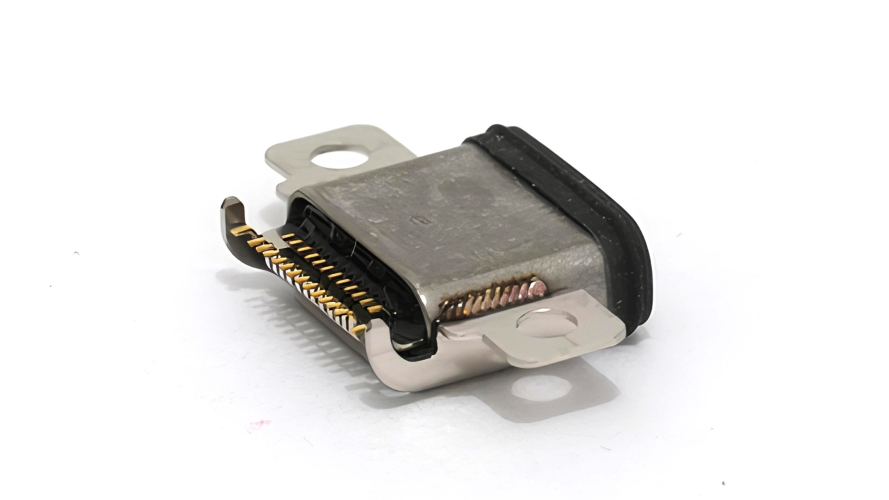

MMUSBC-3224BF-MMWP02-F05
USB
USB3224
USB 3.2 Type C Receptacle (IPX8)
Product Overview
Operating Temperature
-30˚C~+85˚C
Gender
Female
Orientation
Horizontal
Current Rating
5A Max VBUS
Packaging
Tape and Reel package
PCB Orientation
Top Mount
Available Pin Counts
24
Vibration
N/A
Contact Pitch
0.5mm(0.02")
Waterproof / Non Waterproof
Waterproof
USB Version
USB3.2 (20 Gbit/s)
Durability
10000 Mating Operations
Contact Resistance
Initial: 40mΩ Max.
After Stress:△10mΩ Max.
Mating/Relate Parts
USB Series Type C Plug Connector
Product Line
USB313WF
Finishing
Full gold 5u" on contact area and termination.
Voltage Rating
20V DC/AC
