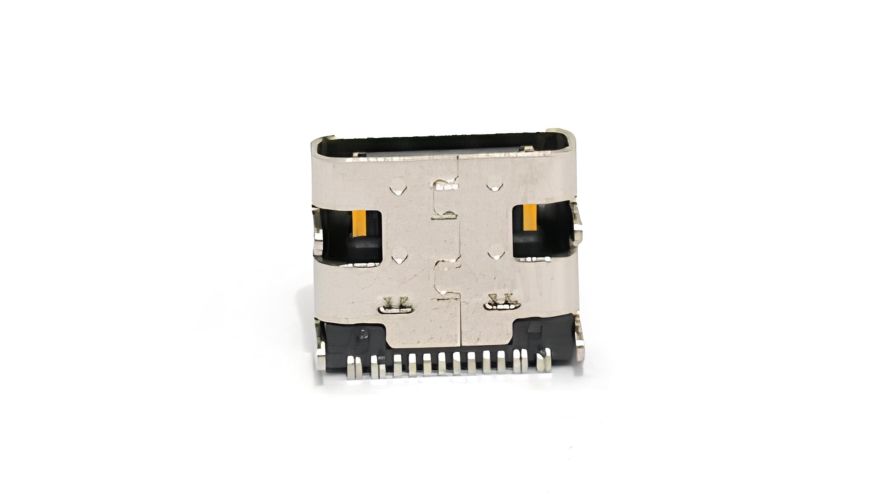

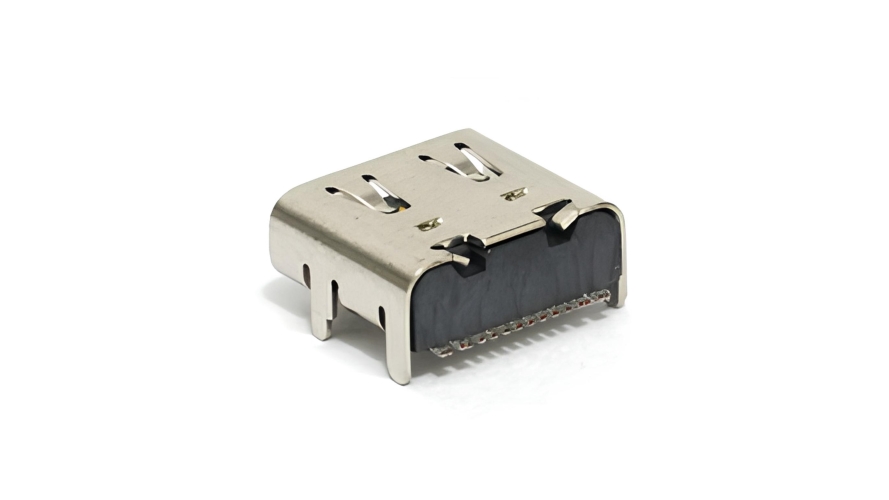

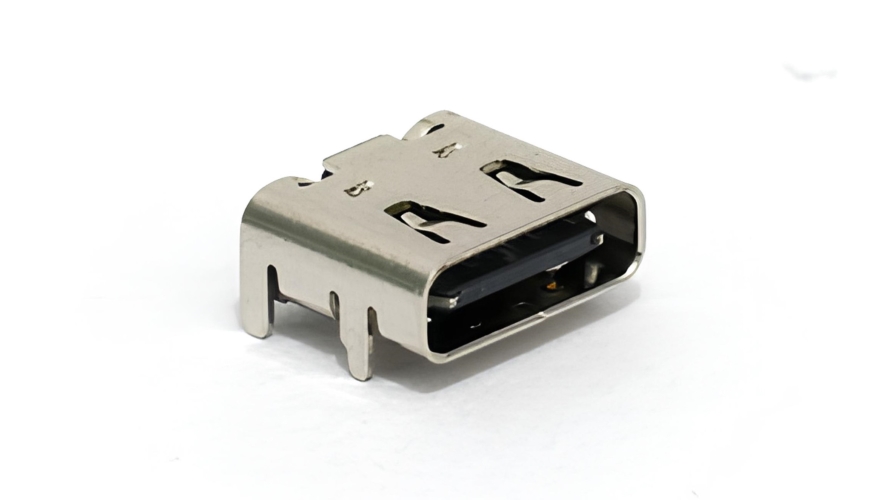

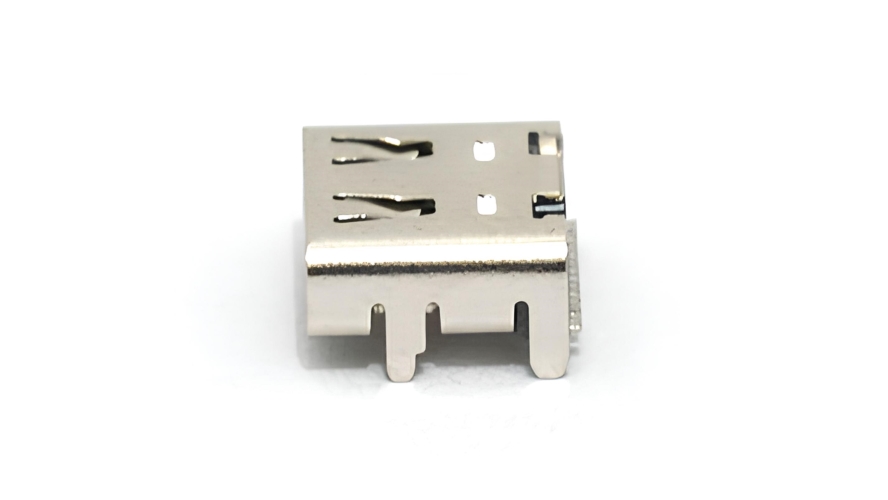

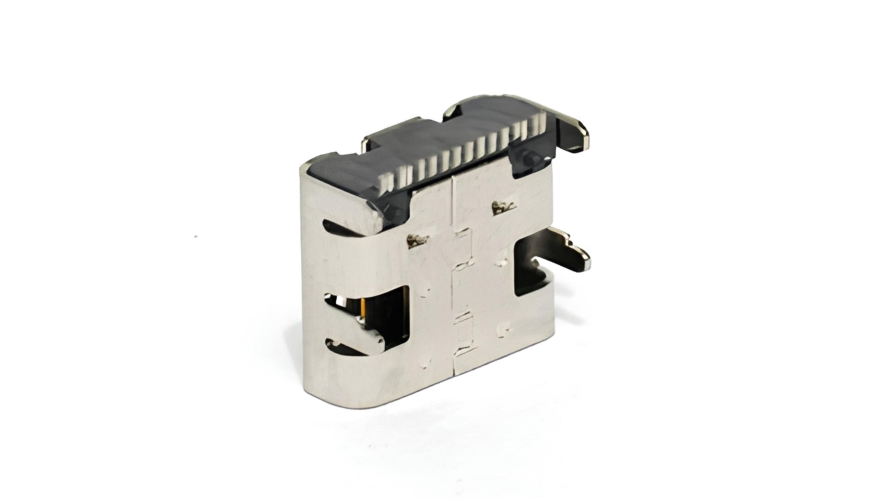

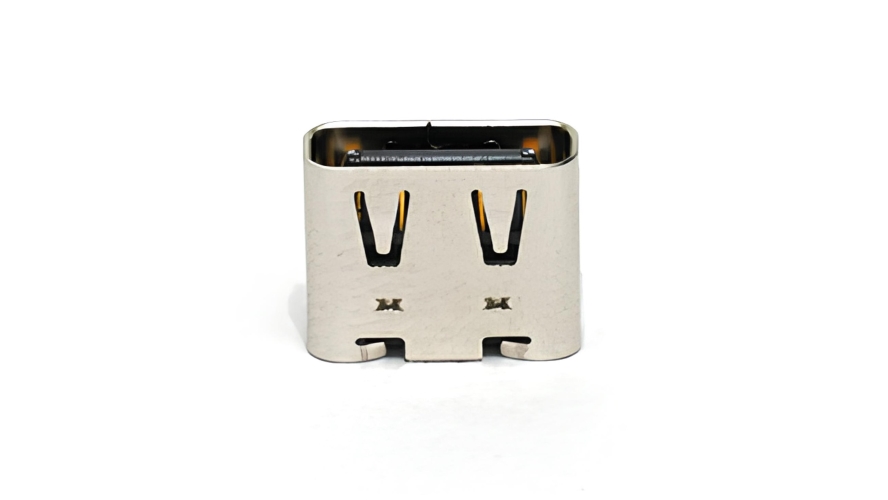

MMUSBC-2016BF-SMHP-G05

USB USB2016

USB 2.0 Type C Receptacle Top Mount SMT Type

Product Overview

Current Rating 10A Max VBUS

Orientation Horizontal

USB Version USB2.0 (10 Gbit/s)

Voltage Rating 30V DC/AC

Mating/Relate Parts USB Series Type C Plug Connector

Contact Pitch 0.5mm(0.02")

Contact Resistance Initial: 40mΩ Max. After Stress:△10mΩ Max.

PCB Orientation Top Mount

Packaging Tape and Reel package

Vibration N/A

Available Pin Counts 12

Operating Temperature -25˚C~+85˚C

Product Line UTC234

Finishing Gold 5u" finish on contact area, Tin finish on termination.

Gender Female

Durability 10000 Mating Operations

Waterproof / Non Waterproof Non Waterproof
