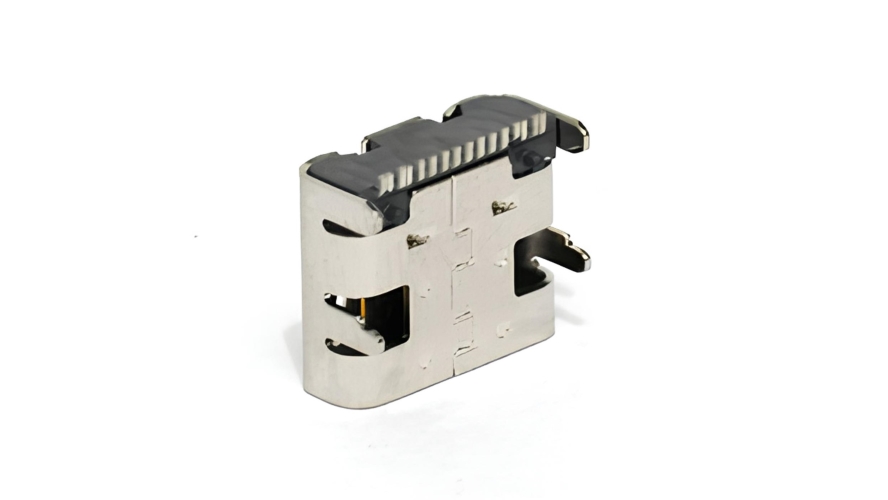

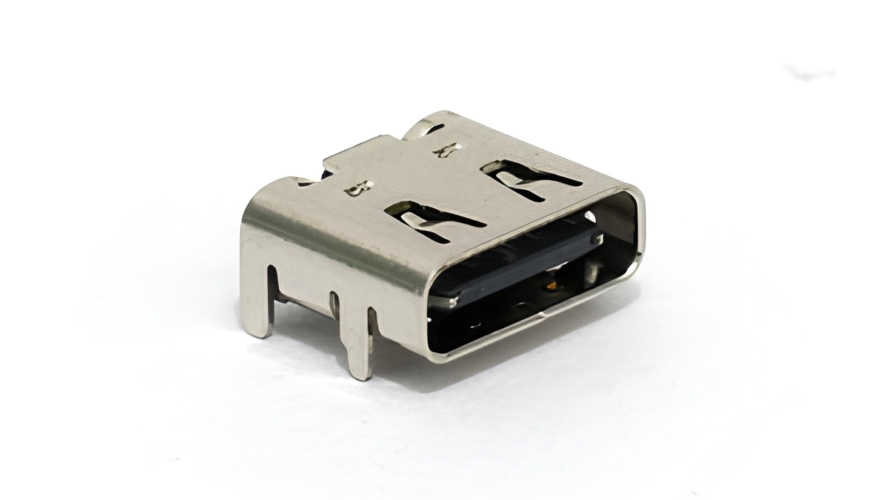

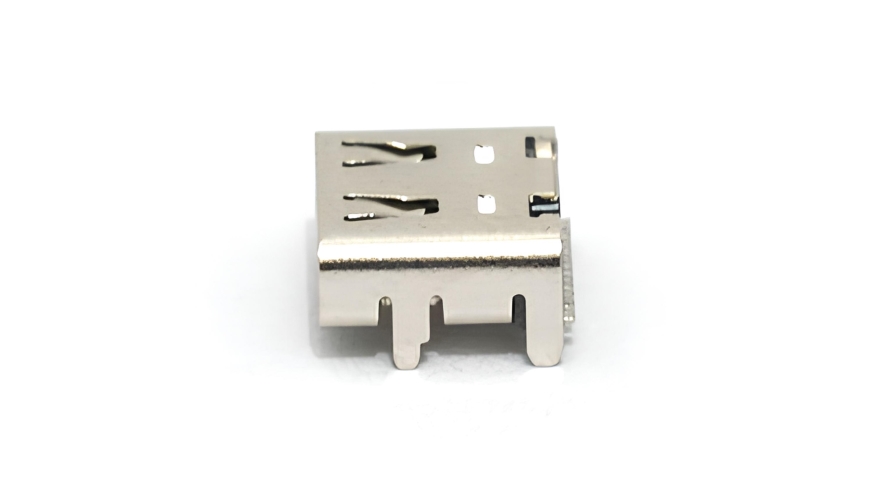

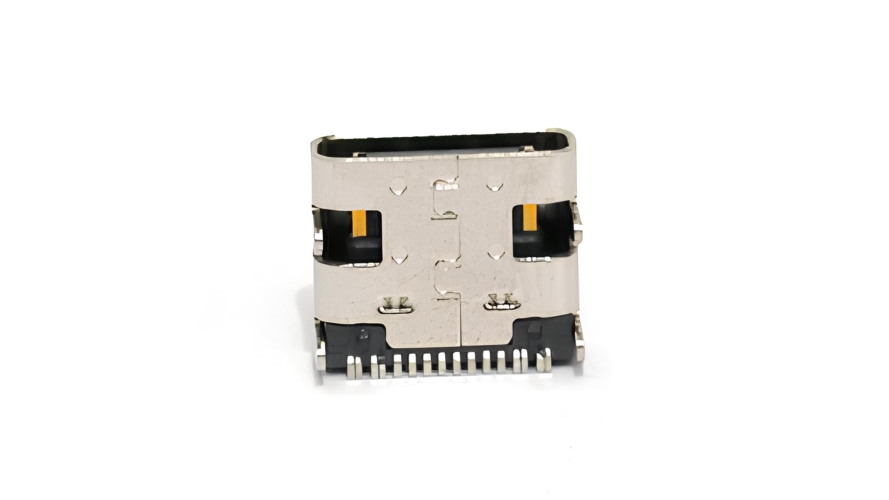

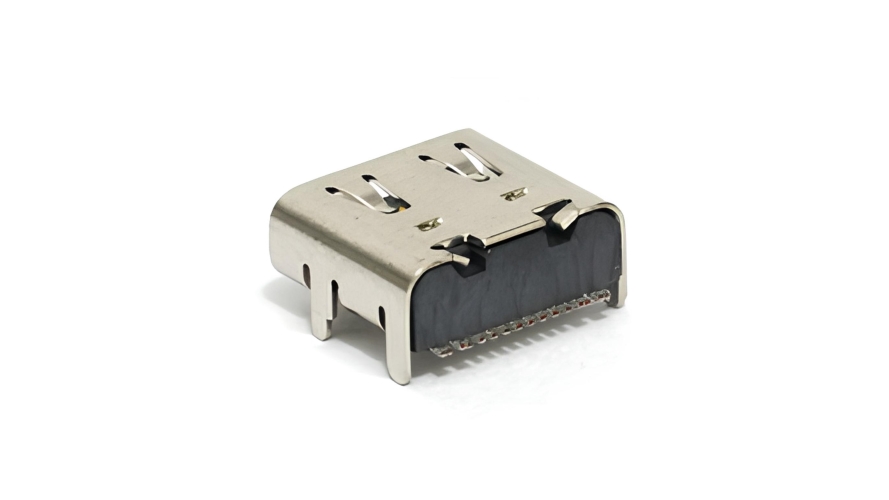

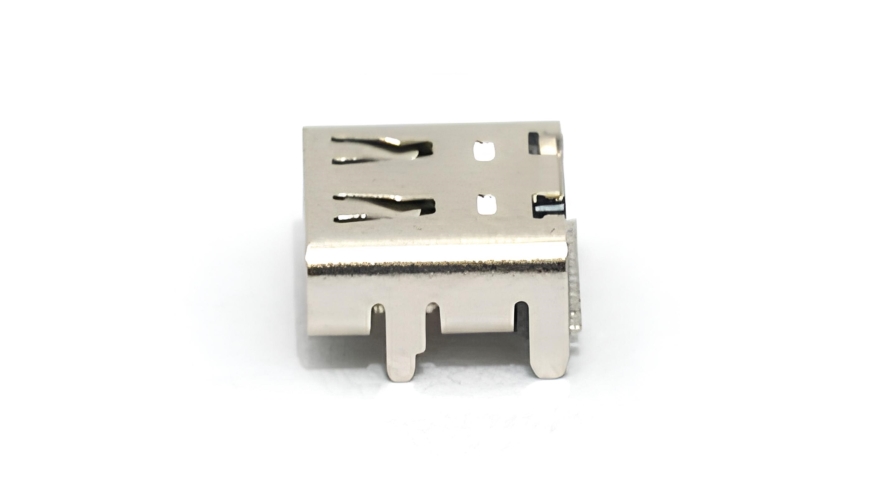

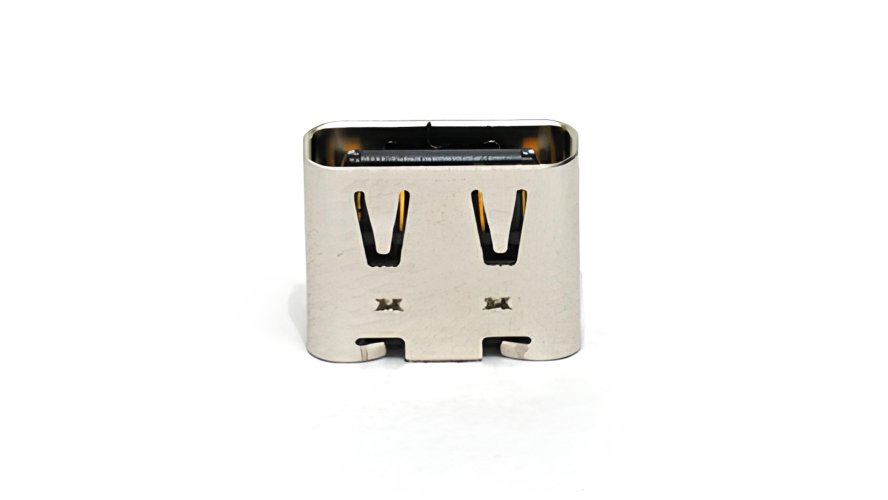

MMUSBC-2016BF-SMHP-G01

USB USB2016

USB 2.0 Type C Receptacle Top Mount SMT Type

Product Overview

Durability 10000 Mating Operations

Voltage Rating 30V DC/AC

Waterproof / Non Waterproof Non Waterproof

PCB Orientation Top Mount

Operating Temperature -25˚C~+85˚C

Product Line UTC234

Orientation Horizontal

Contact Resistance Initial: 40mΩ Max. After Stress:△10mΩ Max.

Vibration N/A

Available Pin Counts 12

Gender Female

Contact Pitch 0.5mm(0.02")

USB Version USB2.0 (10 Gbit/s)

Finishing Gold 1u" finish on contact area, Tin finish on termination.

Mating/Relate Parts USB Series Type C Plug Connector

Current Rating 10A Max VBUS

Packaging Tape and Reel package
