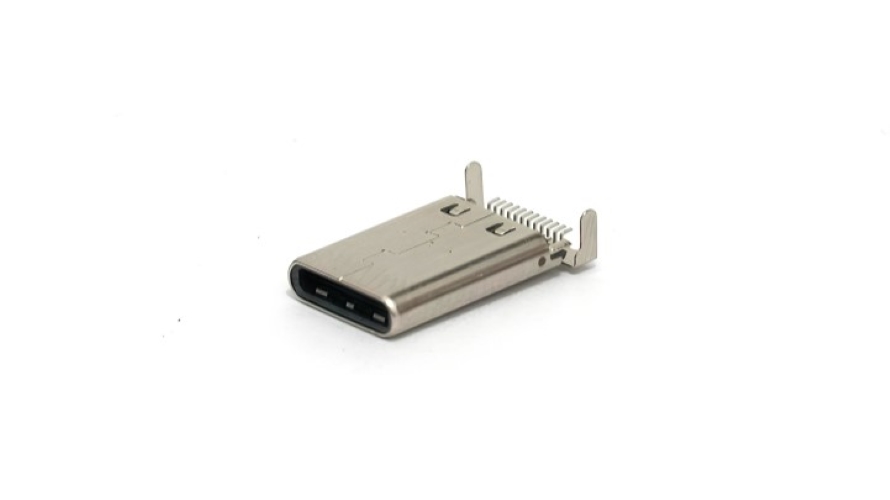

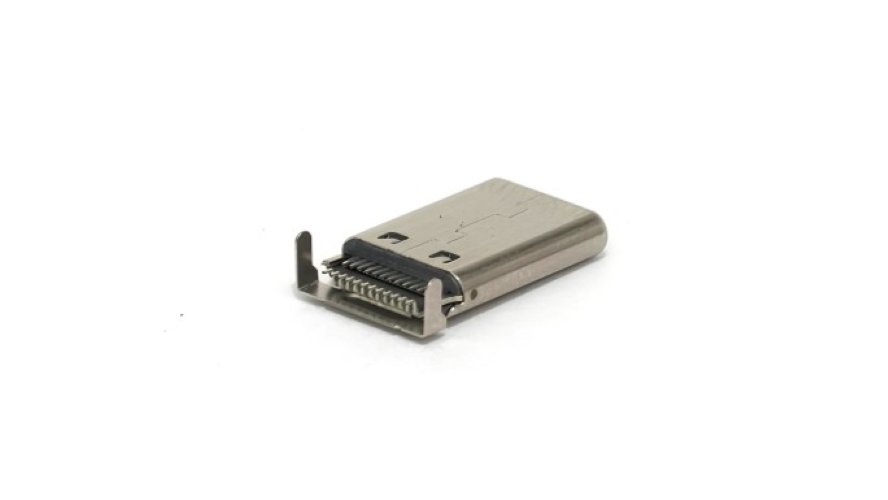

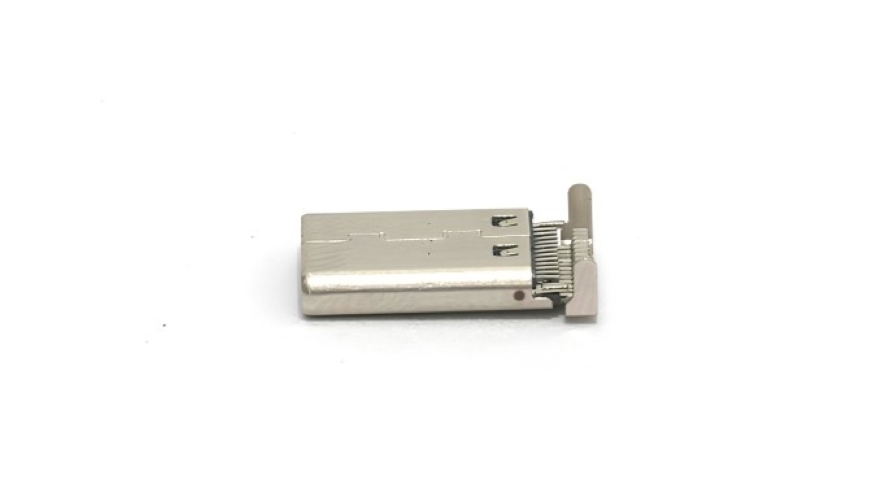

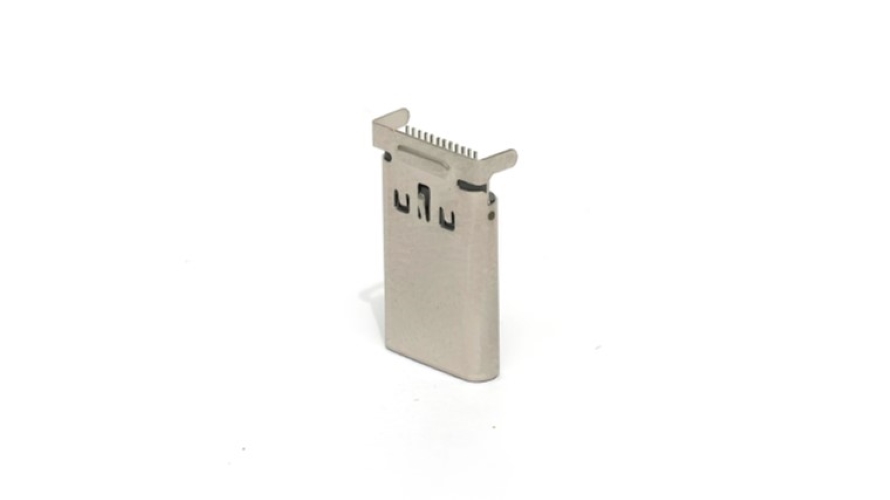

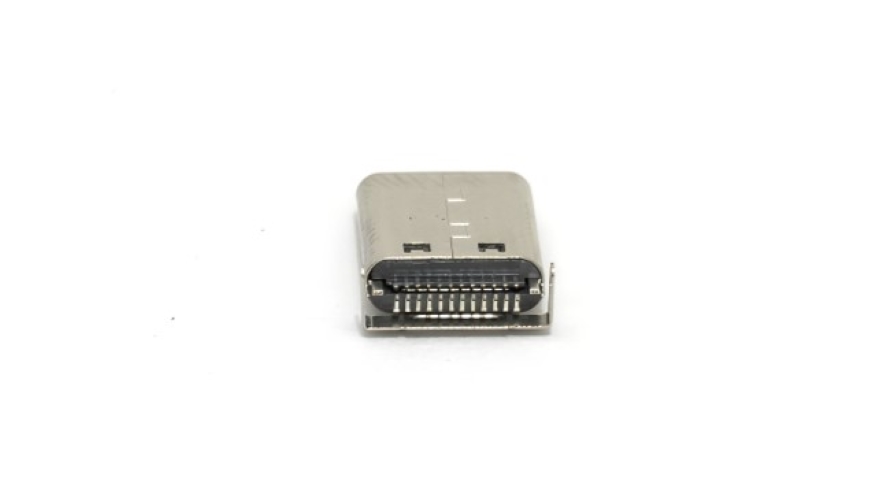

MMUSBC-3224BM-BMHS-G05
USB
USB3224
USB3.2 Type C Plug Board Mount Offset 0.95mm SMT Type
Product Overview
Available Pin Counts
24
Contact Pitch
0.5mm(0.02")
Contact Resistance
Initial: 40mΩ Max.
After Stress:△10mΩ Max.
Current Rating
5A Max VBUS
Durability
10000 Mating Operations
Finishing
Gold finish 5u" on contact area, Tin finish on termination.
Gender
Male
Mating/Relate Parts
USB Series Type C Receptacle Connector
Operating Temperature
-40˚C~+85˚C
Orientation
Horizontal
PCB Orientation
Board Mount
Packaging
Tape and Reel package
Product Line
USB401E
USB Version
USB3.2 (20 Gbit/s)
Vibration
5min in each of 3 mutually perpendicular directions.(Power Spectral Density 0.02g2/Hz, Overall rms 3.10g)
Voltage Rating
30V DC/AC
Waterproof / Non Waterproof
Non Waterproof
