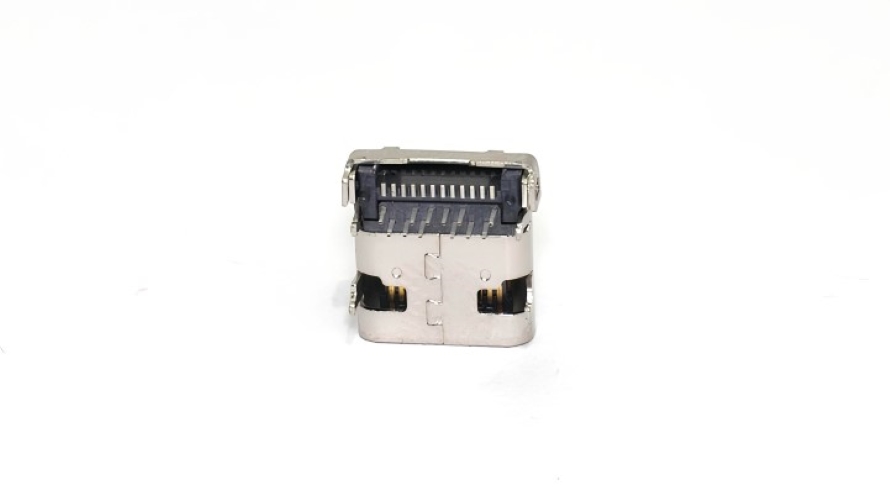

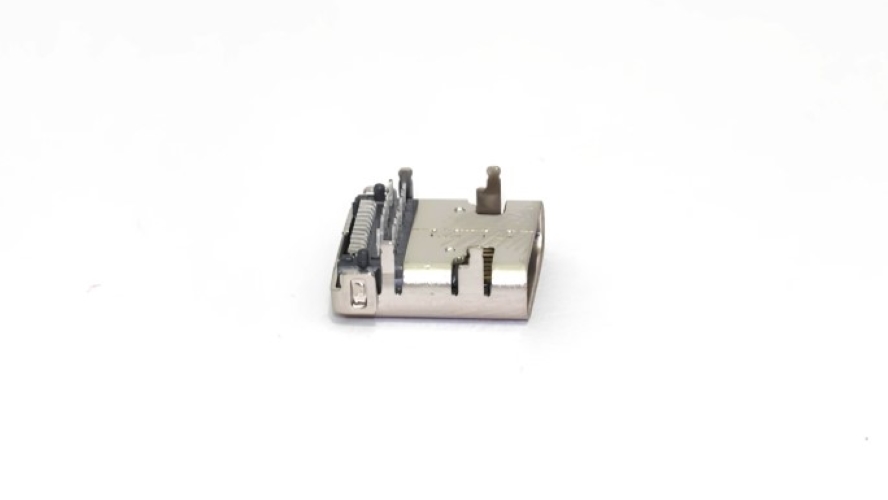

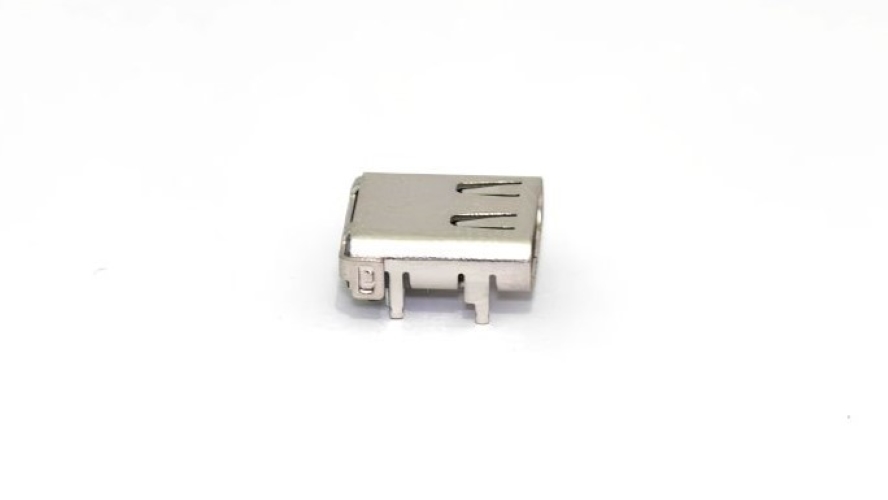

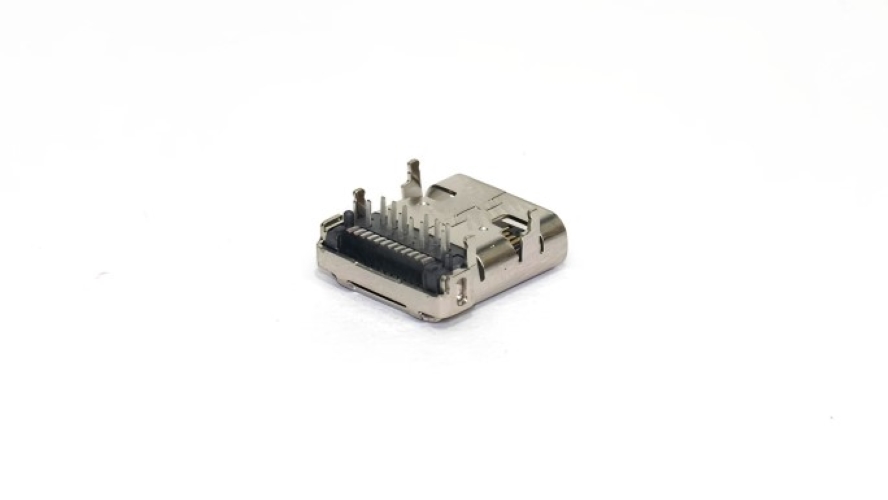

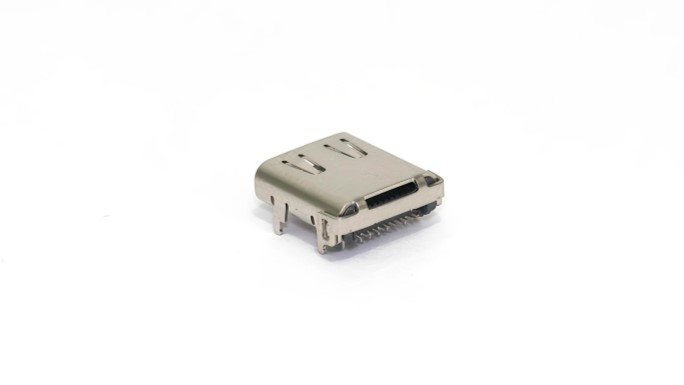

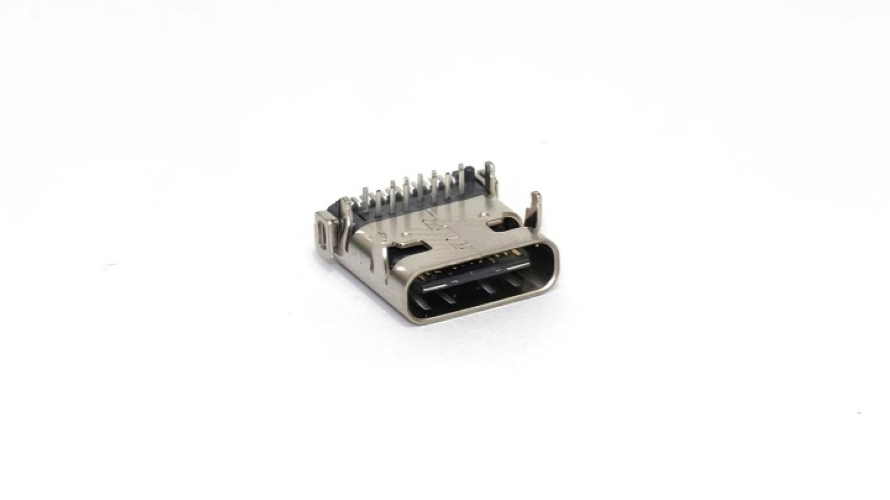

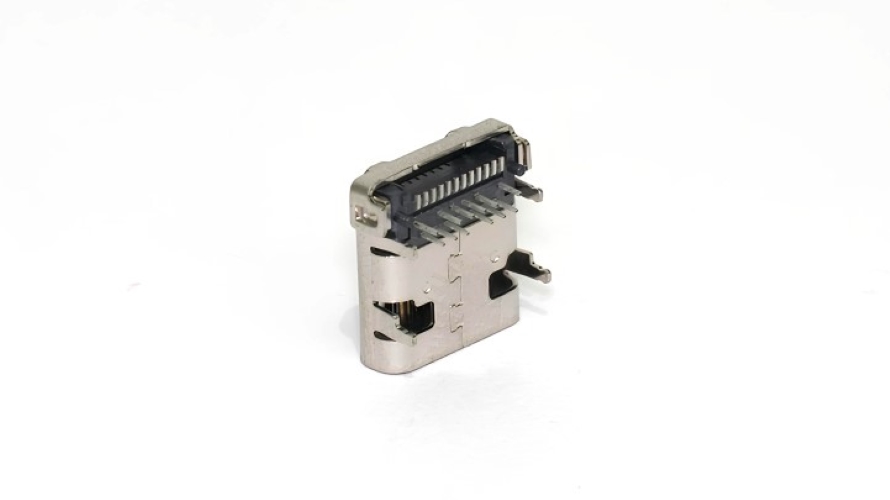

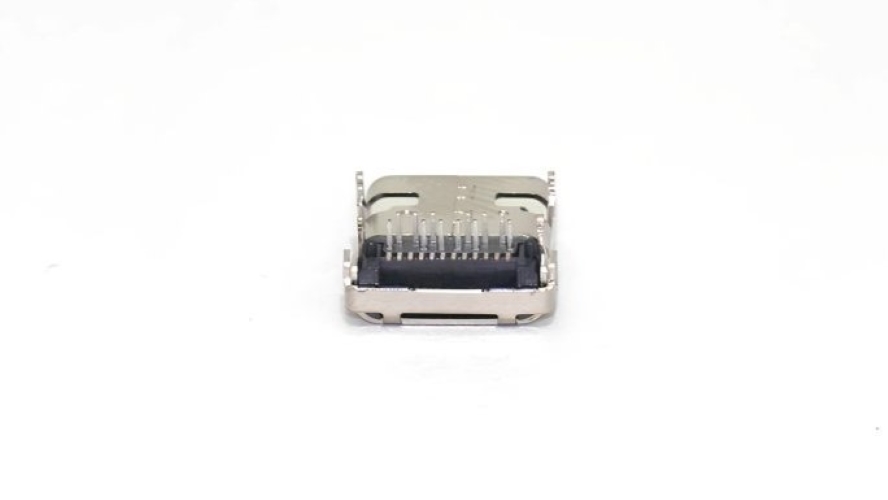

MMUSBC-4024AF-SMHS-G05
USB
USB4024
USB 4.0 Type C Receptacle Top Mount DIP+SMT Type
Product Overview
Available Pin Counts
24
Contact Pitch
0.5mm(0.02")
Contact Resistance
Initial: 40mΩ Max.After Stress:△10mΩ Max.
Current Rating
5A Max VBUS
Durability
10000 Mating Operations
Finishing
Gold finish 5u" on contact area, Tin finish on termination.
Gender
Female
Mating/Relate Parts
USB Series Type C Plug Connector
Operating Temperature
-30˚C~+85˚C
Orientation
Horizontal
PCB Orientation
Top Mount
Packaging
Tape and Reel package
Product Line
UTC237
USB Version
USB4.0 (40 Gbit/s)
Vibration
15 minutes in each of 3 mutually perpendicularaxes,20~500Hz, 0.02 g2/Hz
Voltage Rating
30V DC/AC
Waterproof / Non Waterproof
Non Waterproof
