MMANT-1700401-FK3-000
Antenna
Antenna

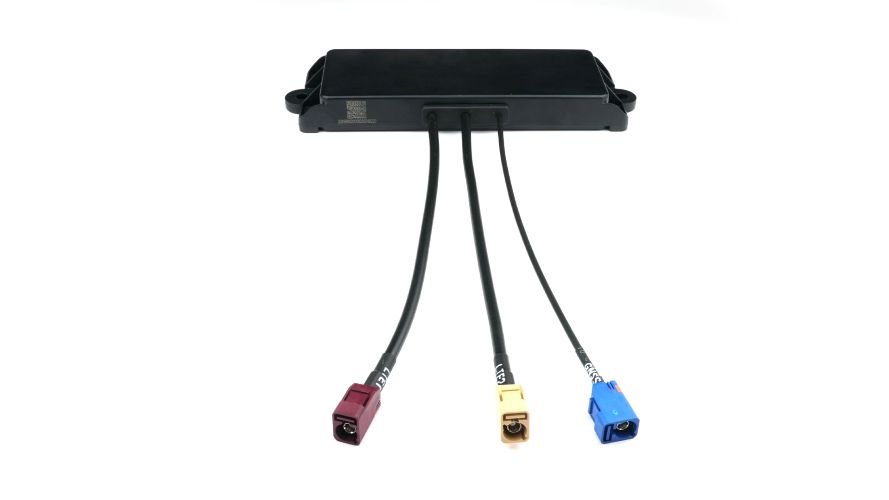

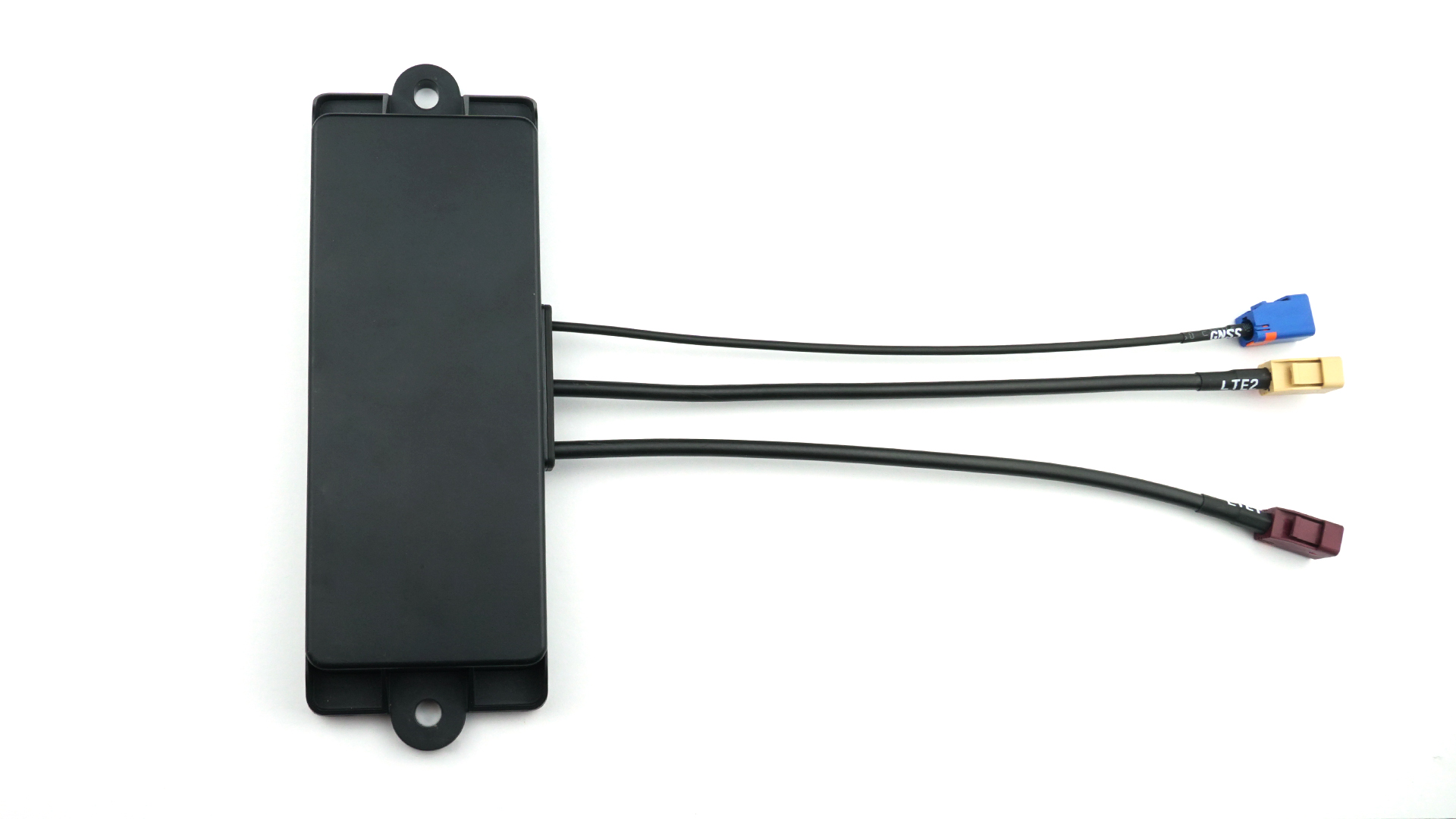

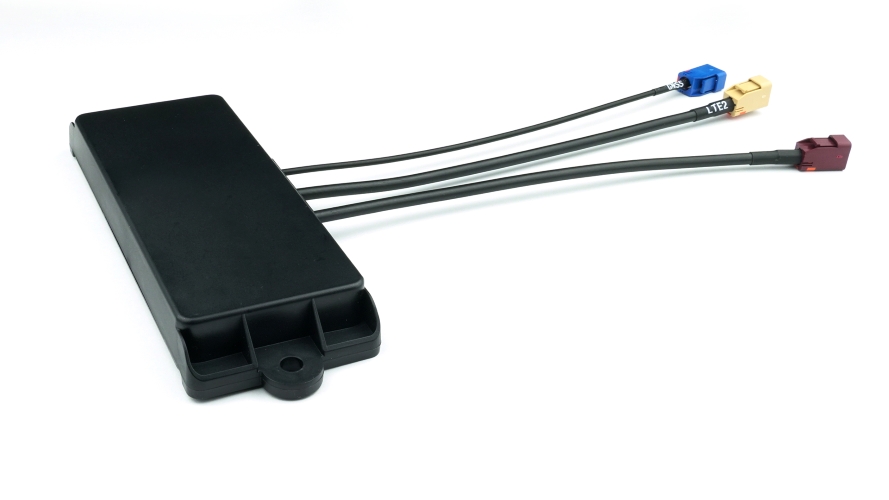

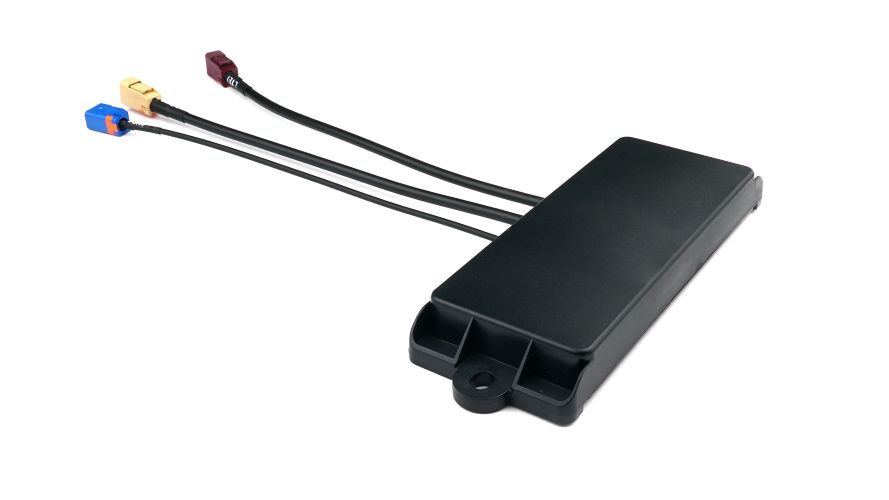

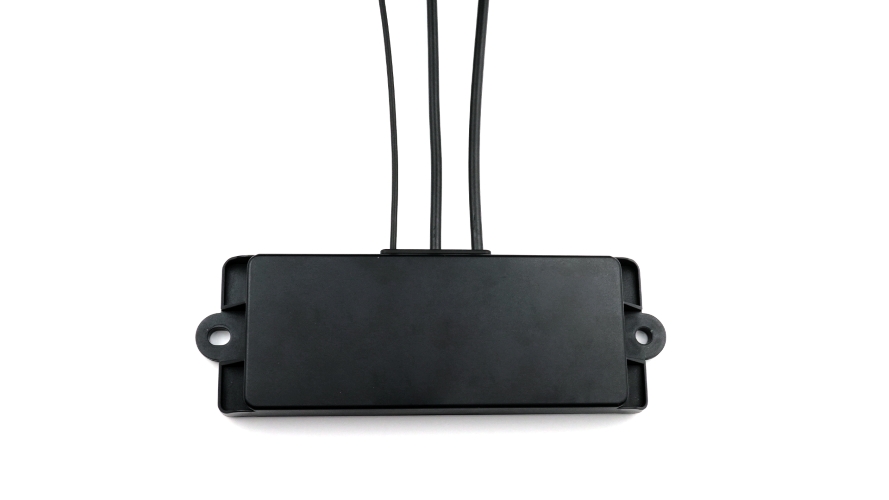

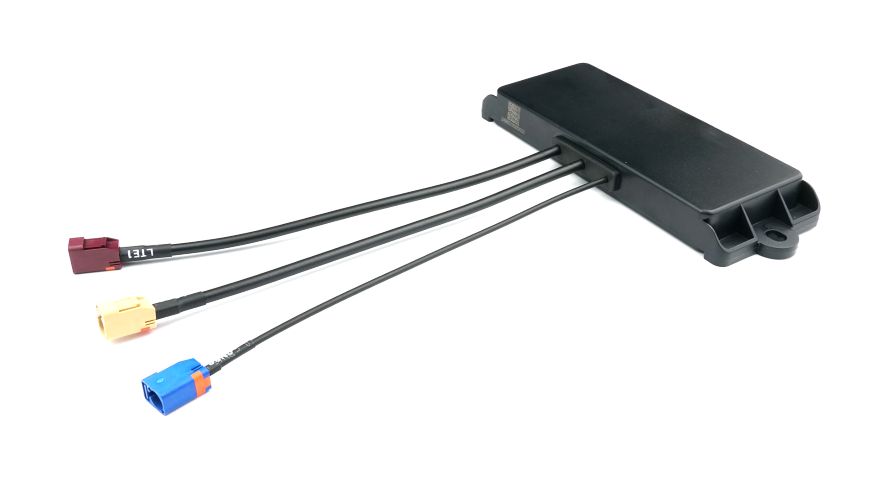

3-in-1 Antenna, LTE x 1-2, Active GPS/Beidou, Screw Mount, 3 Fakra Connector
Product Overview
Connector Type
Fakra
Sub Types
Combination
Gain
5G/LTE:698-960MHz 2.7dBi/1500-1700MHz 4.0dBi/1710-2690MHz 7.8dBi/3300-5000MHz 7.5dBi
GNSS:1561-1602MHz 28dB
Impedance
50Ω
Operating Frequency Range
5G/LTE:698-960MHz/1500-1700MHz/1710-2690MHz
3300-5000MHz
GNSS:1561-1602MHz
Types
External
Combination
3-in-1
Antenna Technology
Combo
VSWR
5G/LTE:698-960MHz≤5/1500-1700MHz≤3.5/1710-2690MHz≤5.5/3300-5000MHz≤3.5
GNSS:1561-1602MHz≤2
Mounting
Screw Mount
IP-Rating (waterproof?)
IP-67
Antenna Protocols
5G/LTE, GNSS
