MMANT-1301000-SM1-001
Antenna
Antenna

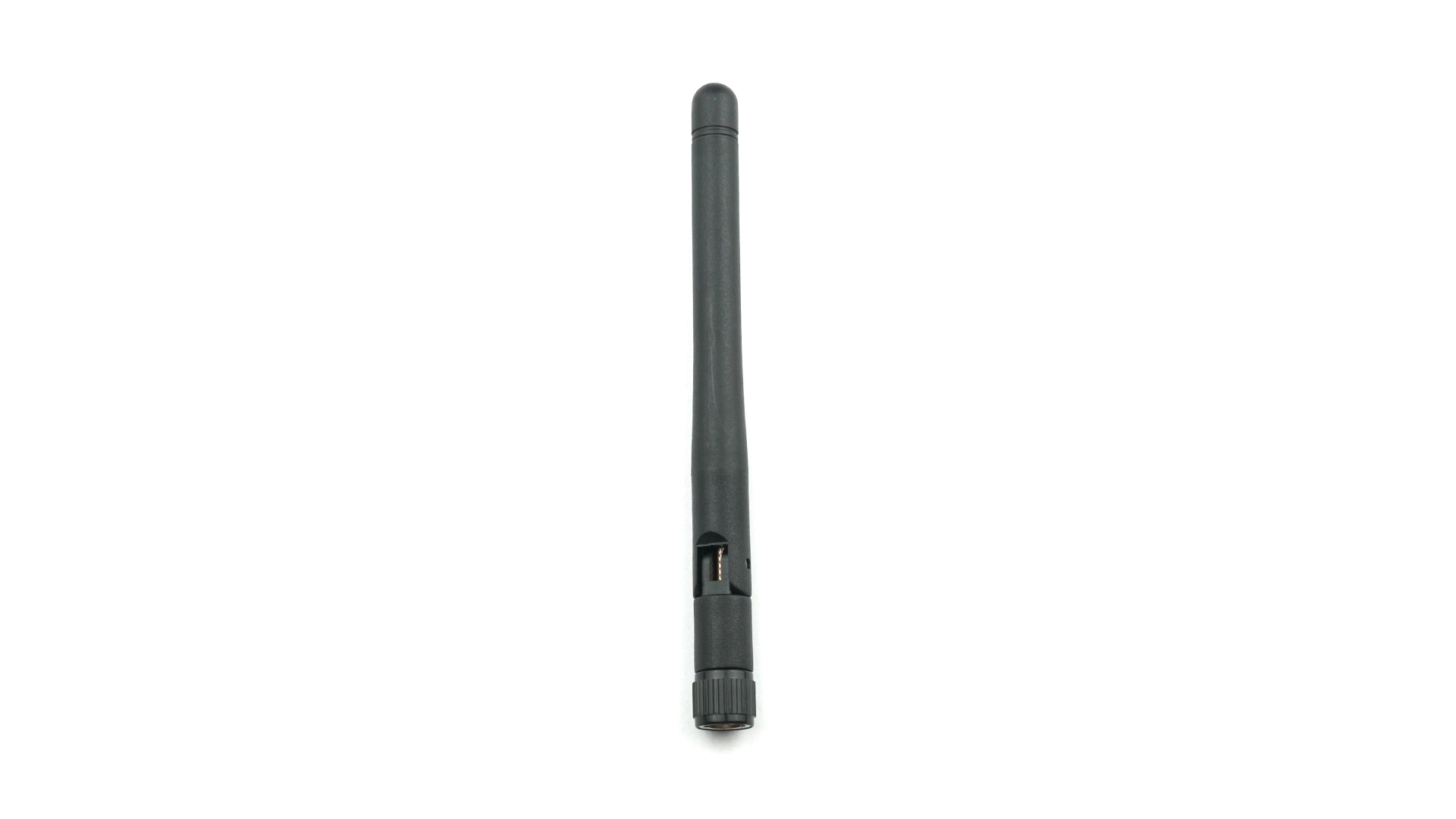

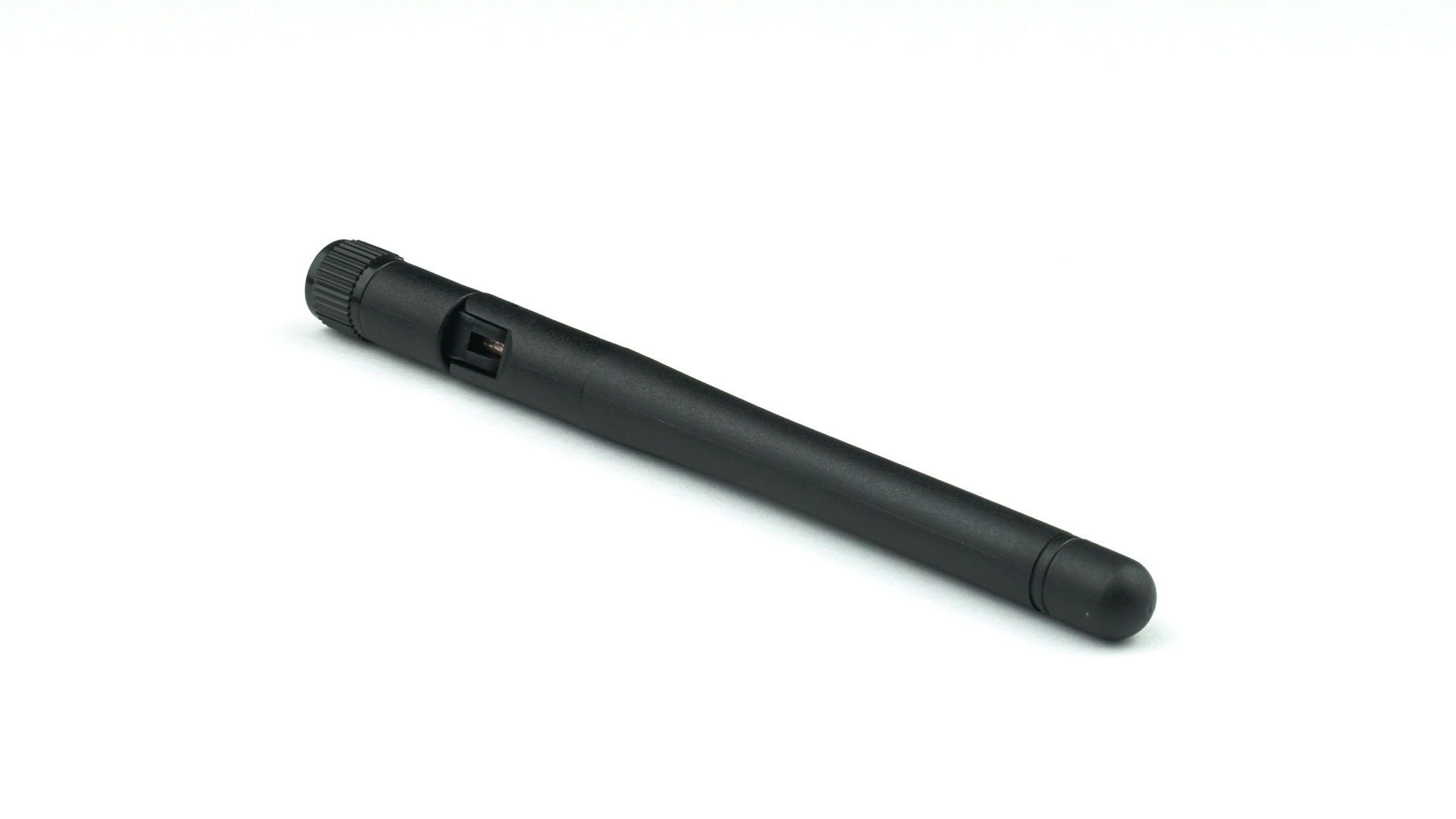

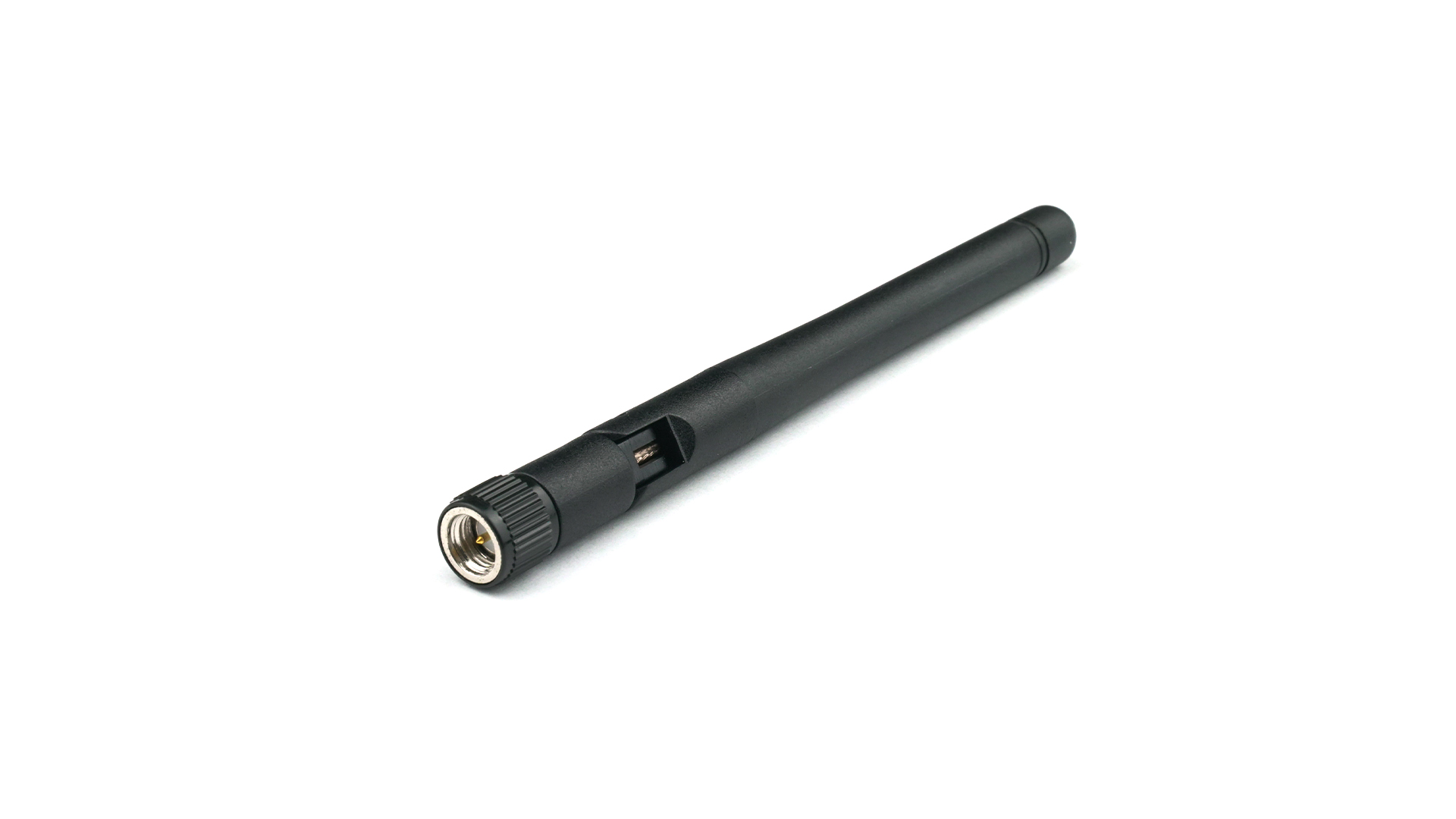

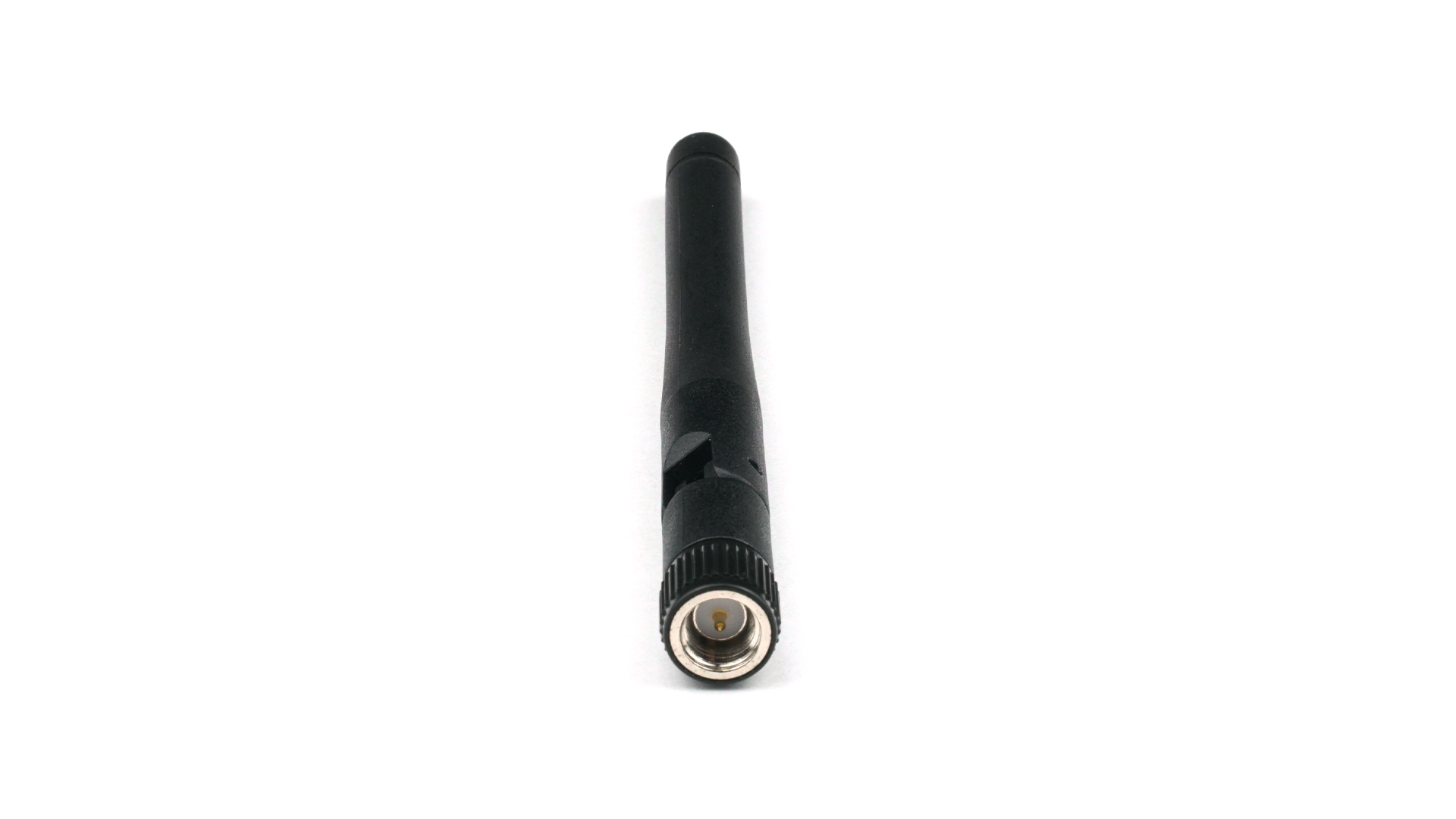

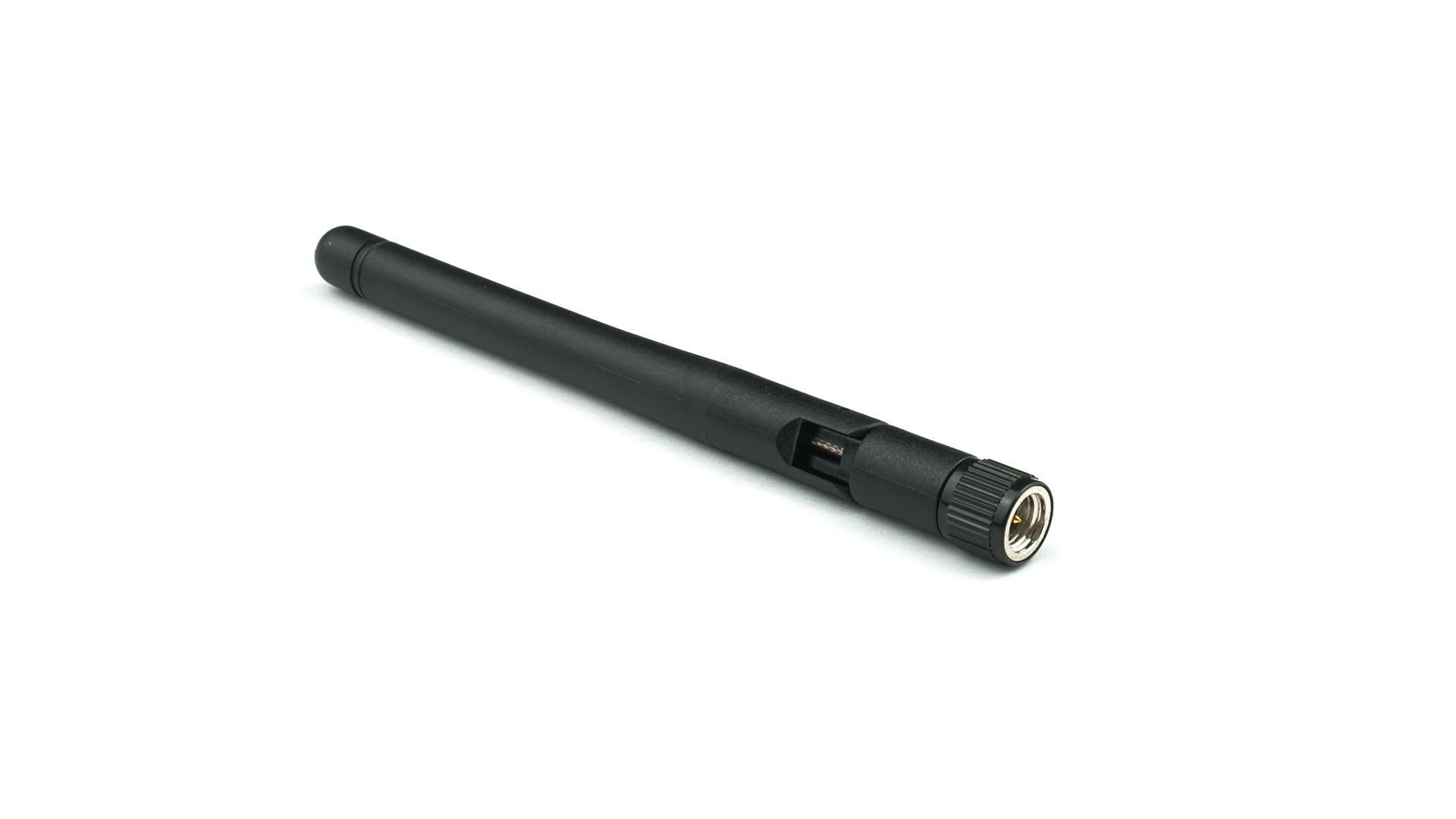

2.4 GHz, Wifi Stubby Antenna, Round Hinge SMA Connector, Indoor Rated
Product Overview
Antenna Protocols
Wi-Fi/BT
Antenna Technology
Wi-Fi
Combination
/
Connector Type
SMA
Gain
Peak Gain (Max):2.4-2.5GHz 5.3dBi /5.15-5.85GHz 4.5dBi
IP-Rating (waterproof?)
-
Impedance
50Ω
Mounting
Screw Mount
Operating Frequency Range
2400MHz~2500MHz/5150MHz~5850MHz/5925MHz~7125MHz
Sub Types
Whip
Types
External
VSWR
2400MHz~2500MHz VSWR;≤2.0
5150MHz~5850MHz VSWR;≤2.0
5925MHz~7125MHz VSWR;≤3.0
