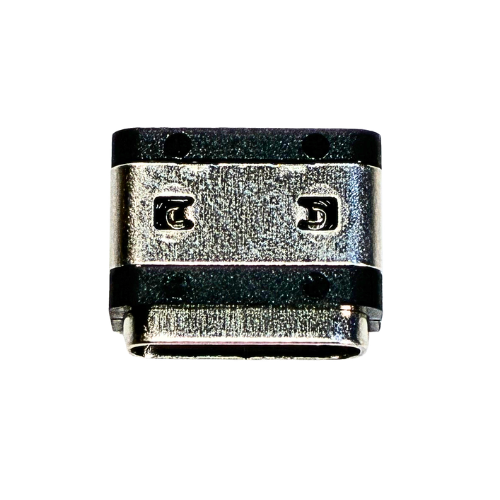

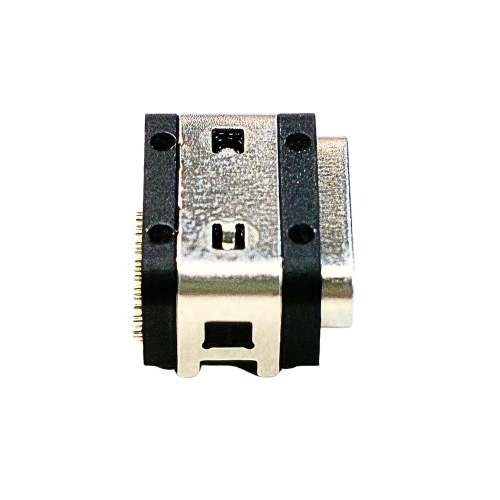

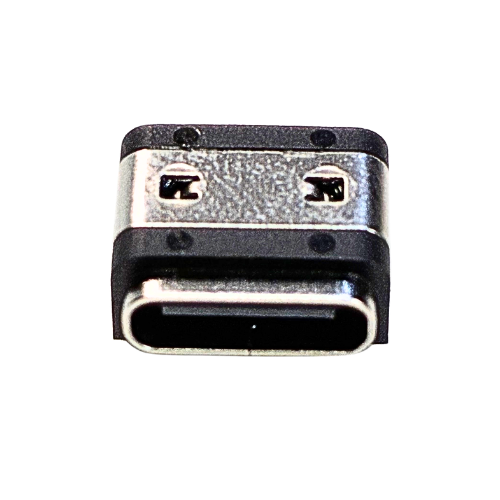

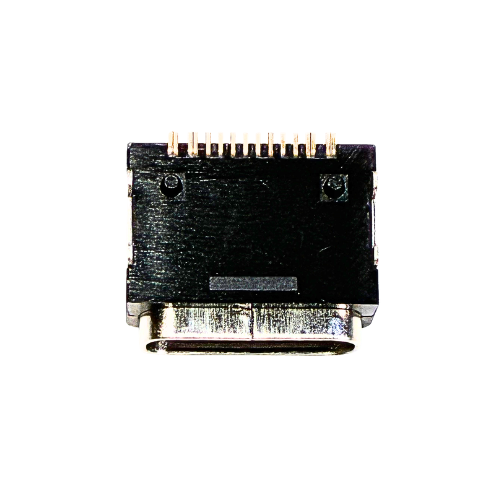

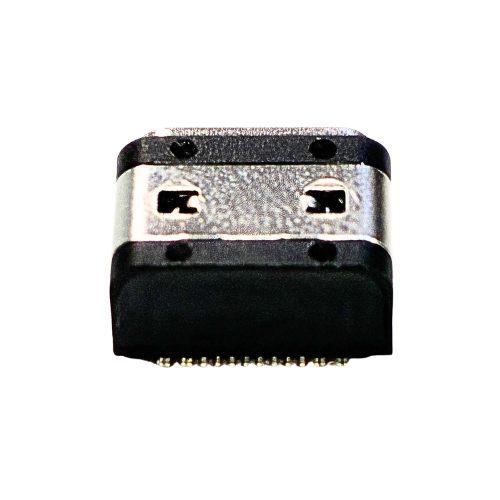

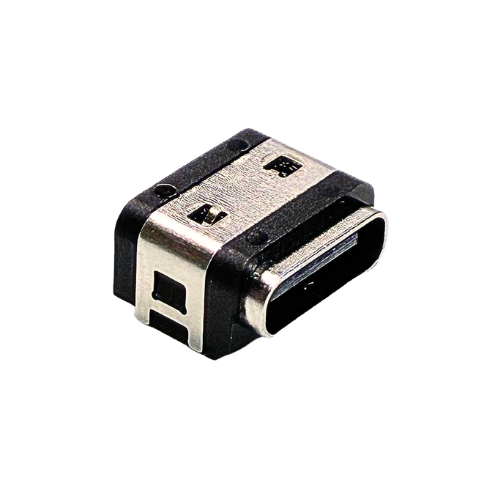

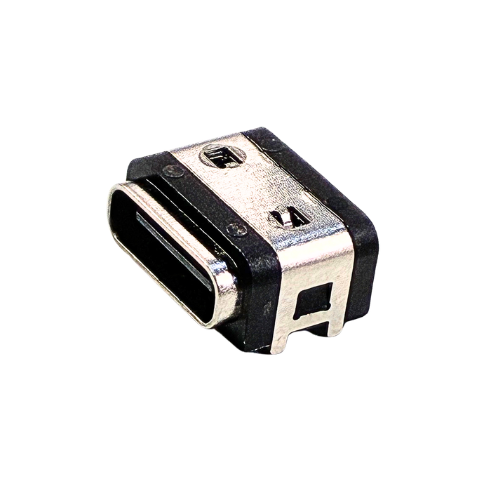

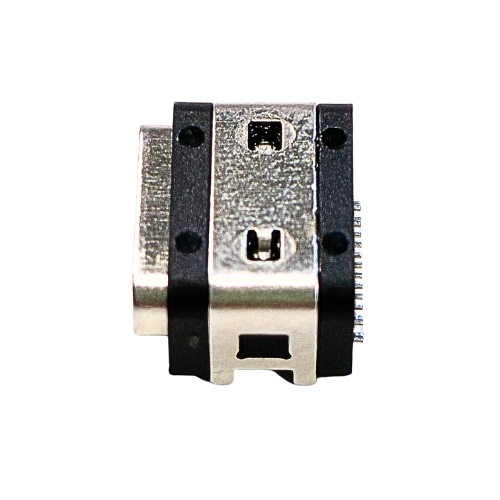

MMUSBC-2016BF-SMWP02-XX
USB-C
USB2016
USB Type C Female 16 Pin Waterproof Type
Product Overview
Available Pin Counts
16
Contact Pitch
0.5mm (0.02")
Contact Resistance
-
Current Rating
Contact Current Rating: 5A; For Collectively Power SUPPIPTN (PTNA1.A4. A9.A12. B1.B4. B9. B12).1.25A For Vconn Pin; 0.25A For Other Signal Pin.
Durability
10000 Mating Operations
Finishing
Gold finish on contact area, Tin finish on termination.
Gender
Female
Mating/Relate Parts
USB Series Type C Plug Connector
Operating Temperature
-25°C~+85°C
Orientation
Horizontal
PCB Orientation
Board Mount
Packaging
Tape and Reel package
Product Line
-
USB Version
USB2.0 (10 Gbit/s)
Vibration
Random vibration- Frequency:20~500Hz- Power Spectral density: 0.02 g2/Hz- Acceleration:3.1grms- Duration:15 minutes/axis-Direction:x,y,z axes
Voltage Rating
5V
Waterproof / Non Waterproof
Waterproof
