		Description	Current Rating	Finishing	Gender	Orientation	Packaging	PCB Orientation	USB Version	Voltage Rating	Waterproof / Non Waterproof

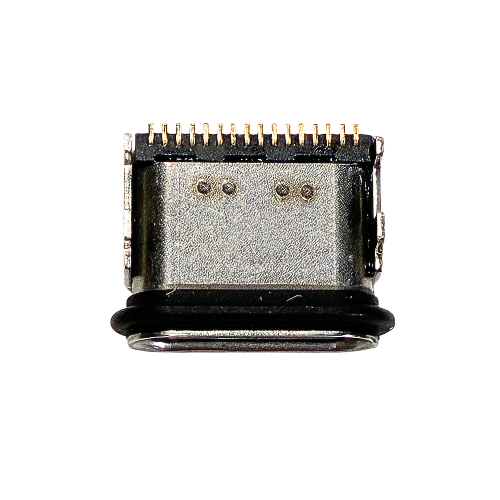

MMUSBC-2016BF-SM-WP-XX USB Type C Waterproof Female Top Mount SMT	USB2016	USB Type C Waterproof Female Top Mount SMT	Contact Current Rating: 5A; For Collectively Power SUPPIPTN (PTNA1.A4. A9.A12. B1.B4. B9. B12).1.25A For Vconn Pin; 0.25A For Other Signal Pin.	Gold finish on contact area, Tin finish on termination.	Female	Horizontal	Tape and Reel package	Top Mount	USB2.0 (10 Gbit/s)	5V	Waterproof

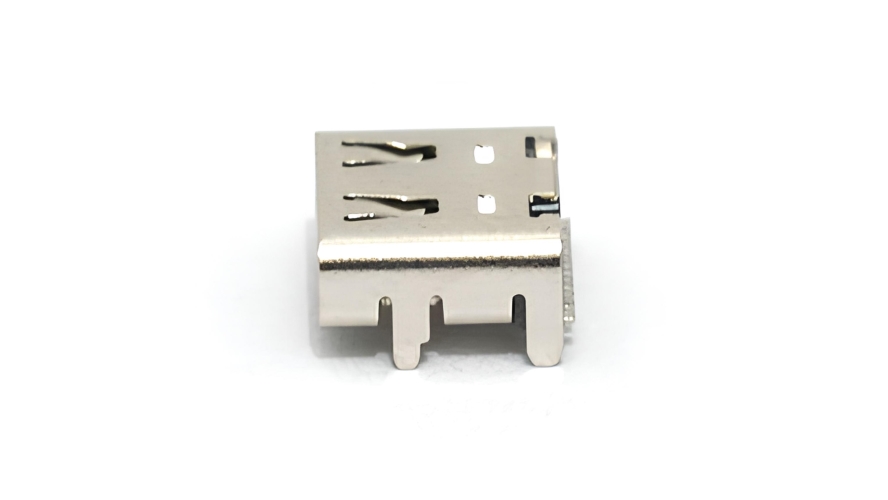

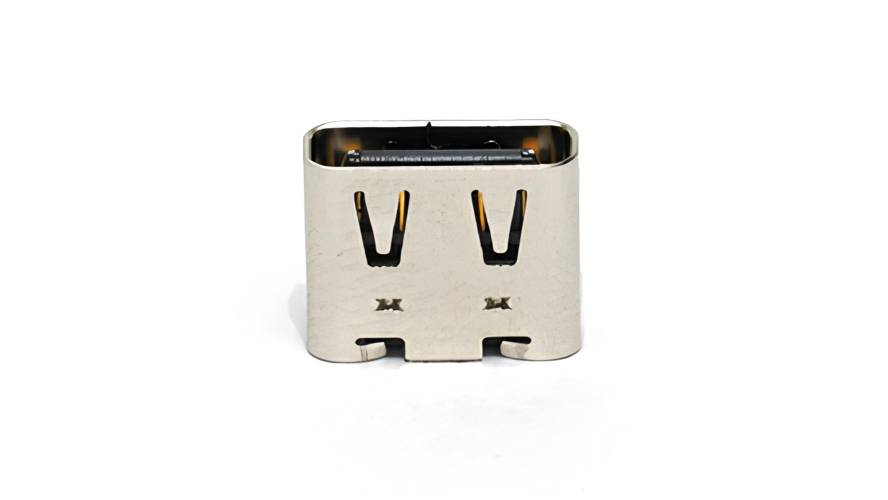

MMUSBC-2016BF-SMHP-G01 USB 2.0 Type C Receptacle Top Mount SMT Type	USB2016	USB 2.0 Type C Receptacle Top Mount SMT Type	10A Max VBUS	Gold 1u" finish on contact area, Tin finish on termination.	Female	Horizontal	Tape and Reel package	Top Mount	USB2.0 (10 Gbit/s)	30V DC/AC	Non Waterproof

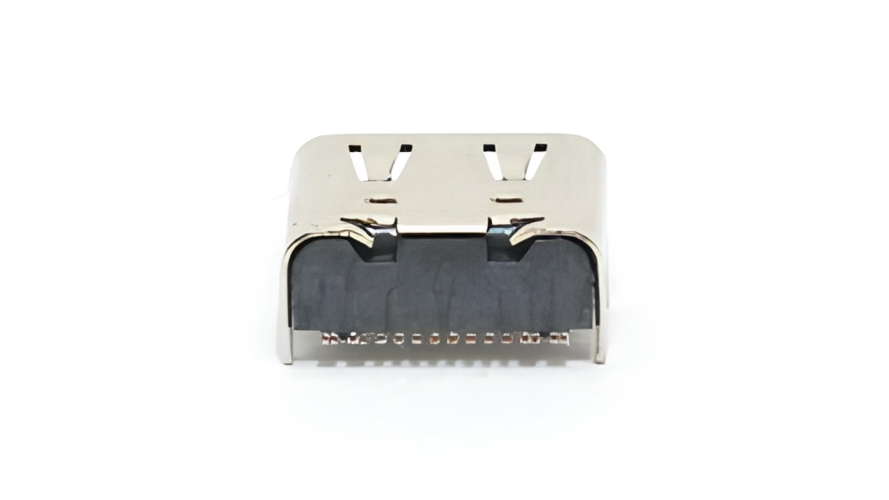

MMUSBC-2016BF-SMHP-G05 USB 2.0 Type C Receptacle Top Mount SMT Type	USB2016	USB 2.0 Type C Receptacle Top Mount SMT Type	10A Max VBUS	Gold 5u" finish on contact area, Tin finish on termination.	Female	Horizontal	Tape and Reel package	Top Mount	USB2.0 (10 Gbit/s)	30V DC/AC	Non Waterproof
MMUSBC-2016BF-SMHP-G30 USB 2.0 Type C Receptacle Top Mount SMT Type	USB2016	USB 2.0 Type C Receptacle Top Mount SMT Type	10A Max VBUS	Gold 30u" finish on contact area, Tin finish on termination.	Female	Horizontal	Tape and Reel package	Top Mount	USB2.0 (10 Gbit/s)	30V DC/AC	Non Waterproof

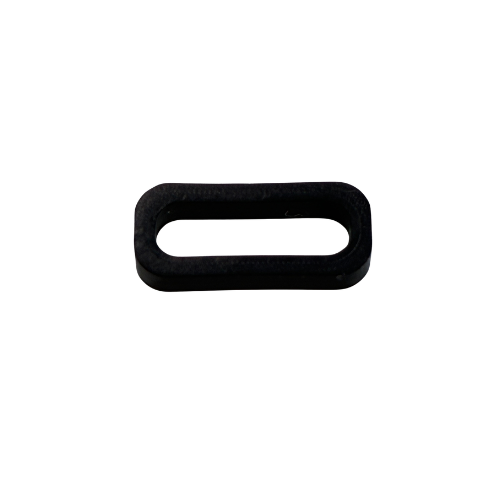

MMUSBC-2016BF-SMWP02-XX USB Type C Female 16 Pin Waterproof Type	USB2016	USB Type C Female 16 Pin Waterproof Type	Contact Current Rating: 5A; For Collectively Power SUPPIPTN (PTNA1.A4. A9.A12. B1.B4. B9. B12).1.25A For Vconn Pin; 0.25A For Other Signal Pin.	Gold finish on contact area, Tin finish on termination.	Female	Horizontal	Tape and Reel package	Board Mount	USB2.0 (10 Gbit/s)	5V	Waterproof

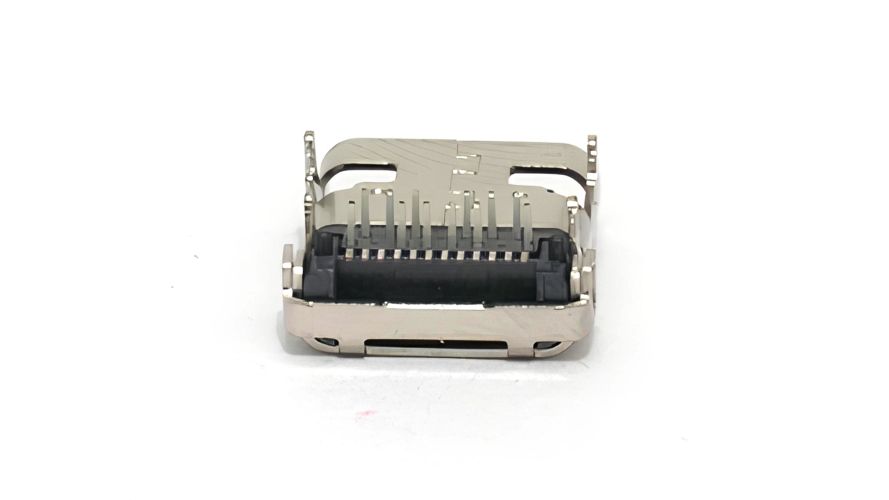

MMUSBC-3224AF-SMHS-G01 USB 3.2 Type C Receptacle Top Mount DIP+SMT Type	USB3224	USB 3.2 Type C Receptacle Top Mount DIP+SMT Type	5A Max VBUS	Gold finish 1u" on contact area, Tin finish on termination.	Female	Horizontal	Tape and Reel package	Top Mount	USB3.2 (20 Gbit/s)	30V DC/AC	Non Waterproof

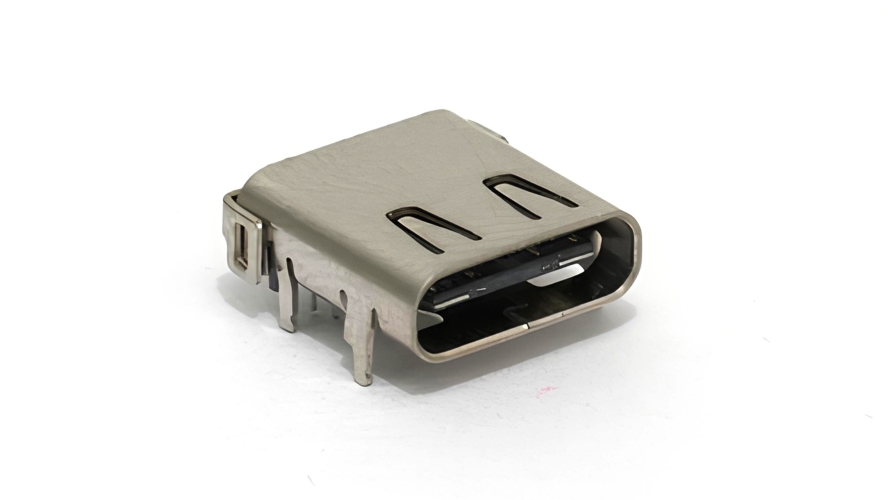

MMUSBC-3224AF-SMHS-G05 USB 3.2 Type C Receptacle Top Mount DIP+SMT Type	USB3224	USB 3.2 Type C Receptacle Top Mount DIP+SMT Type	5A Max VBUS	Gold 5u" finish on contact area, Tin finish on termination.	Female	Horizontal	Tape and Reel package	Top Mount	USB3.2 (20 Gbit/s)	30V DC/AC	Non Waterproof
MMUSBC-3224AF-SMHS-G30 USB 3.2 Type C Receptacle Top Mount DIP+SMT Type	USB3224	USB 3.2 Type C Receptacle Top Mount DIP+SMT Type	5A Max VBUS	Gold 30u" finish on contact area, Tin finish on termination.	Female	Horizontal	Tape and Reel package	Top Mount	USB3.2 (20 Gbit/s)	30V DC/AC	Non Waterproof

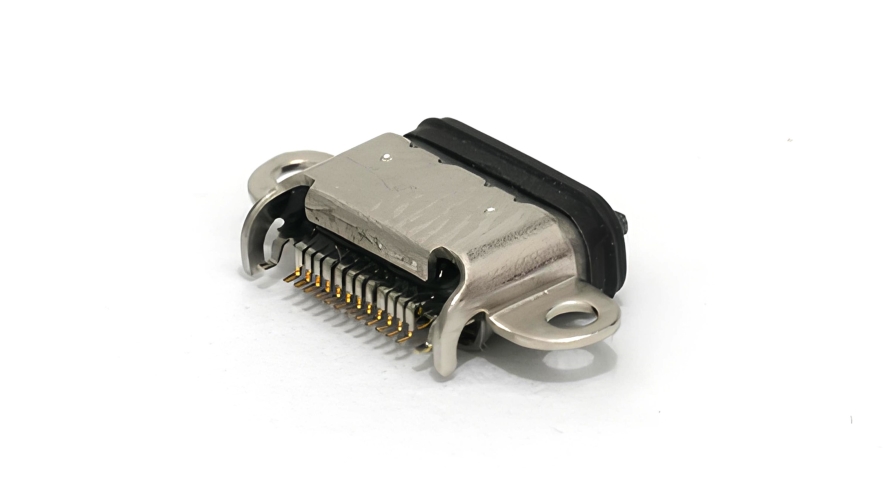

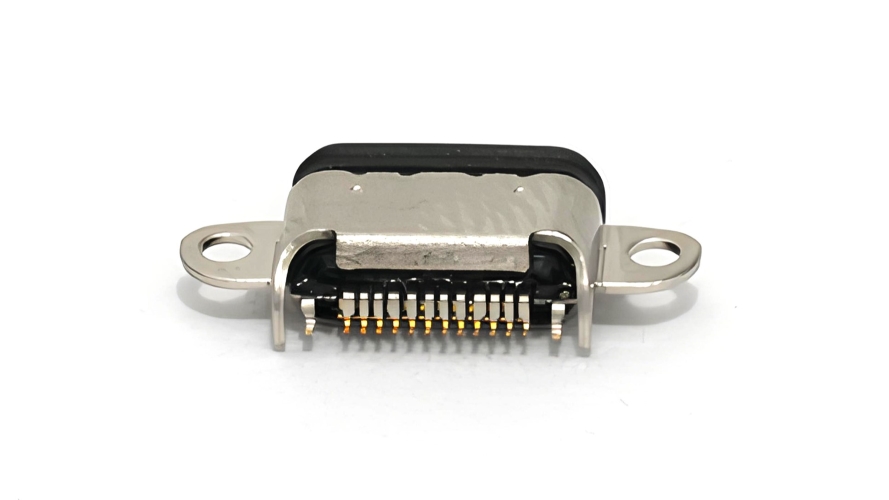

MMUSBC-3224BF-MMWP01-G01 USB 3.2 Type C Receptacle (IPX8)	USB3224	USB 3.2 Type C Receptacle (IPX8)	5A Max VBUS	Full gold 1u" on contact area and termination.	Female	Horizontal	Tape and Reel package	Top Mount	USB3.2 (20 Gbit/s)	20V DC/AC	Waterproof

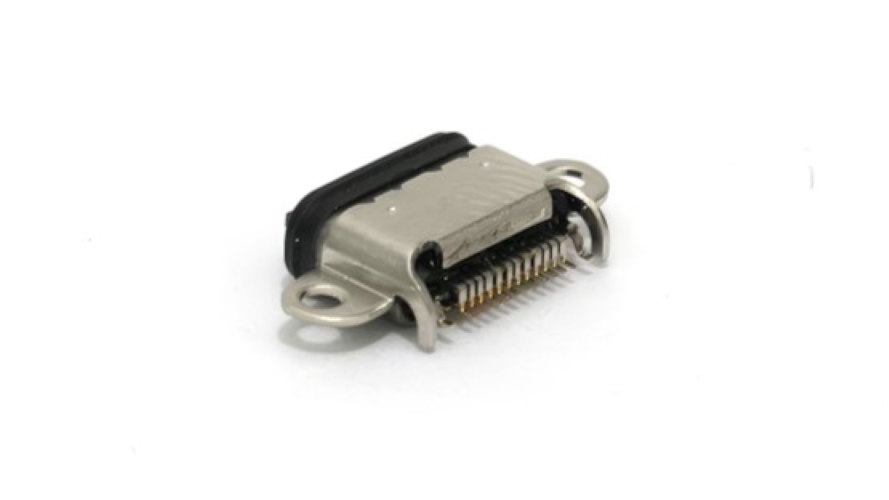

MMUSBC-3224BF-MMWP01-G05 USB 3.2 Type C Receptacle (IPX8)	USB3224	USB 3.2 Type C Receptacle (IPX8)	5A Max VBUS	Full gold 5u" on contact area and termination.	Female	Horizontal	Tape and Reel package	Top Mount	USB3.2 (20 Gbit/s)	20V DC/AC	Waterproof
MMUSBC-3224BF-MMWP01-G30 USB 3.2 Type C Receptacle (IPX8)	USB3224	USB 3.2 Type C Receptacle (IPX8)	5A Max VBUS	Full gold 30u" on contact area and termination.	Female	Horizontal	Tape and Reel package	Top Mount	USB3.2 (20 Gbit/s)	20V DC/AC	Waterproof

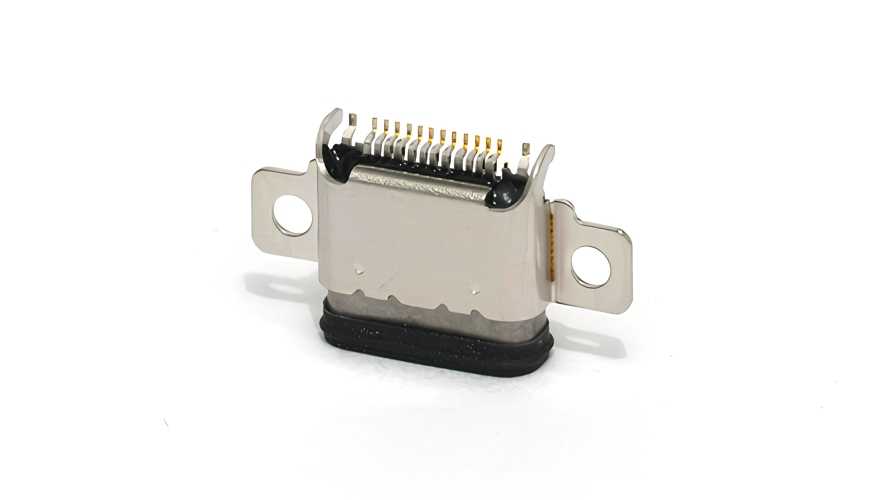

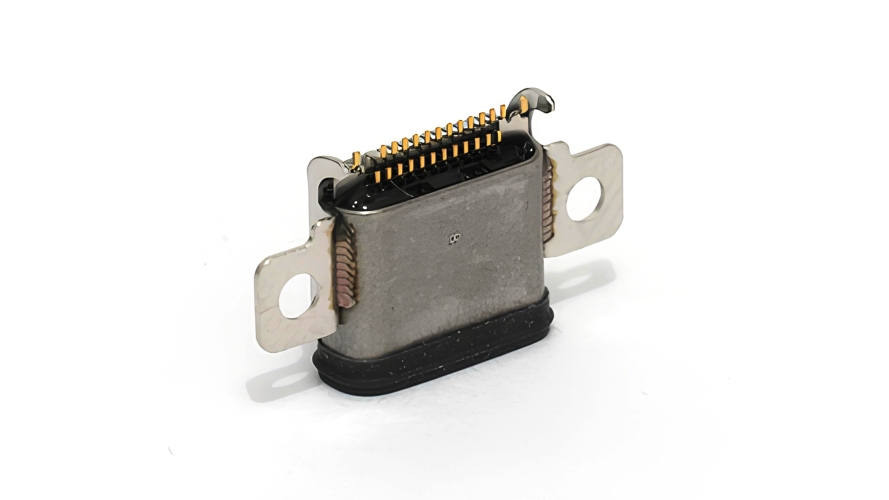

MMUSBC-3224BF-MMWP02-F01 USB 3.2 Type C Receptacle (IPX8)	USB3224	USB 3.2 Type C Receptacle (IPX8)	5A Max VBUS	Full gold 1u" on contact area and termination.	Female	Horizontal	Tape and Reel package	Top Mount	USB3.2 (20 Gbit/s)	20V DC/AC	Waterproof
